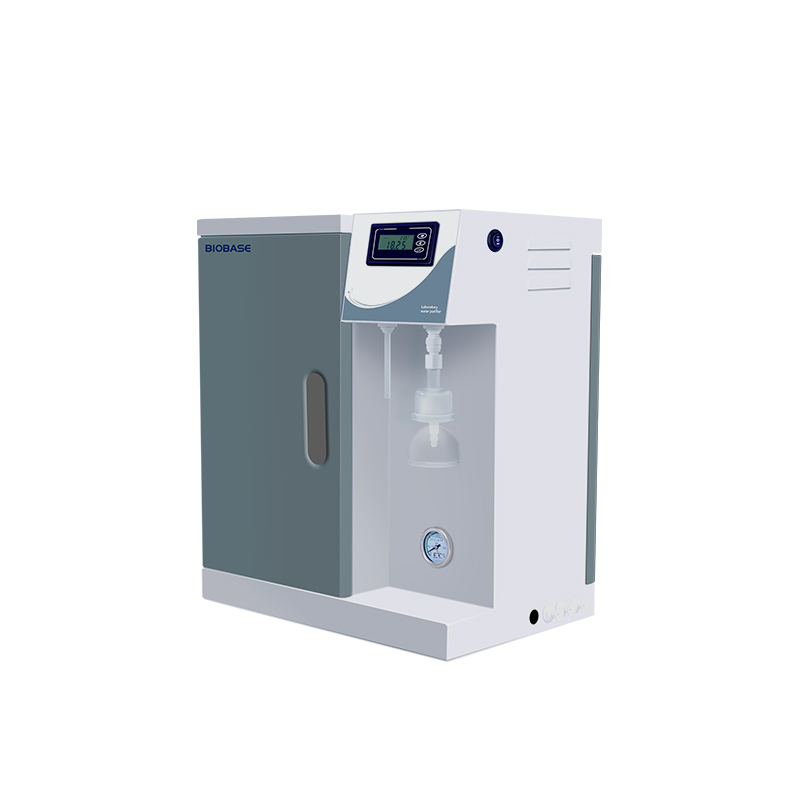

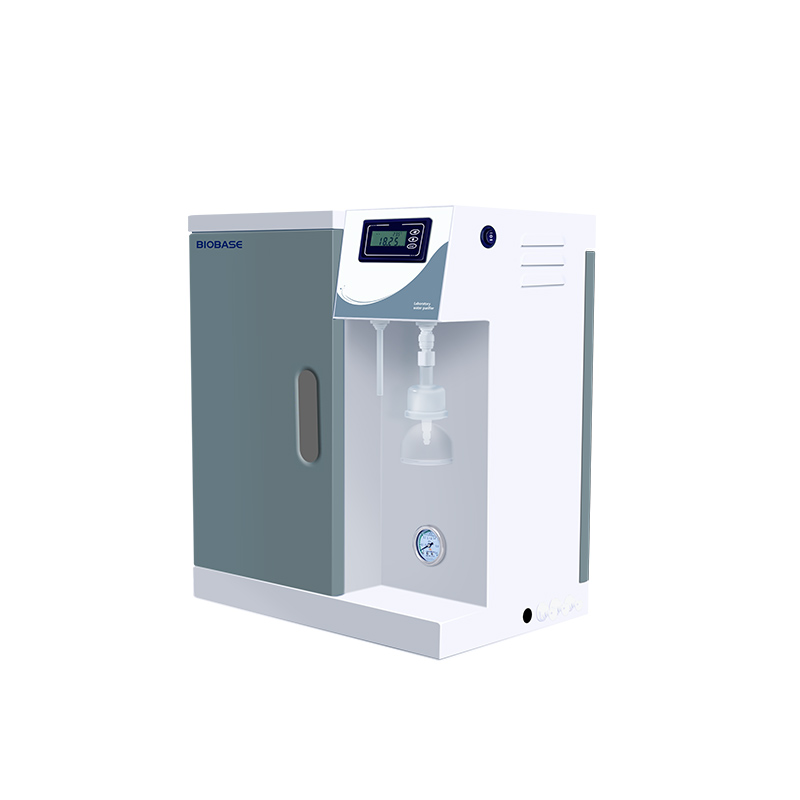

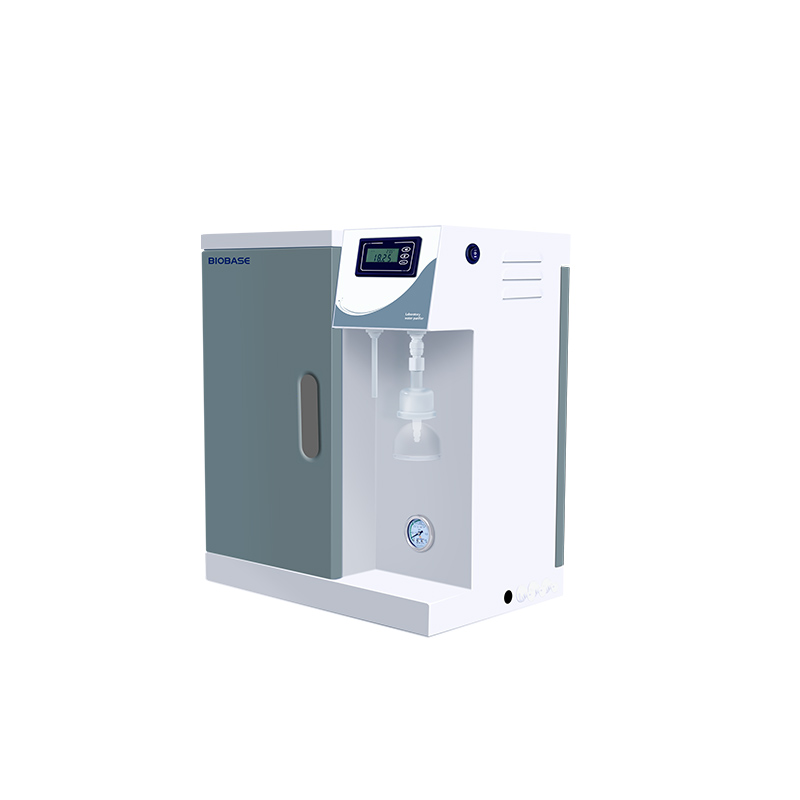

Water Purifier(Automatic RO/Ultra-pure Water)
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model Standard SCSJ-10L SCSJ-20L SCSJ-30L Eliminating endotoxin SCSJ-10F SCSJ-20F SCSJ-30F Low TOC SCSJ-10V SCSJ-20V SCSJ-30V Synthesizing SCSJ-10VF SCSJ-20VF SCSJ-30VF
Introduction:
Specially designed for the high-precision laboratory.
Low ion, organic matter content, heat source and nucleic acid enzyme.
Multi - step purification process, UV sterilization and ultra-filtration technologies.
Download
Features:
1. Real - time LCD display.
2. Alternative water bucket size to meet different needs.
3. New type filter cartridge, no water seepage and leakage.
4. Easy to maintenance and replacement for the filter cartridge.
5. Automatic electronic pressure sensor controlling, RO membrane auto flushing.
Technical Parameters:
Model | Standard SCSJ-10L SCSJ-20L SCSJ-30L | Eliminating Endotoxin SCSJ-10F SCSJ-20F SCSJ-30F | Low TOC SCSJ-10V SCSJ-20V SCSJ-30V | Synthesizing SCSJ-10VF SCSJ-20VF SCSJ-30VF | |
Output(25°C) | 10 series-10L/H, 20 series-20L/H, 30 series-30L/H | ||||
Flow Rate | Up to 2 liters/minute(with pressure tank) | ||||
Water Output Type | RO and ultra-pure water | ||||
Resistivity(25°C) | 18.2MΩ.cm | ||||
TOC* | <10ppb | <10ppb | <3ppb | <3ppb | |
Bacteria | <0.1cfu/ml | ||||
Particle(>0.22μm) | <1/ml | ||||
Endotoxin | N/A | <0.001Eu/ml | N/A | <0.001Eu/ml | |
Ion Rejection Rate | 95%~99%(new RO membrane) | ||||
Particles and Bacteria Rejection Rate | >99% | ||||
Water Supply Requirements | Tap water, TDS<200ppm, 5~45°C, 1.0~4.0kgf/cm2 | ||||
Standard Configuration | Main body(including 1 set of cartridge), 12 liters pressure tank | ||||
Purification System | Pretreatment Unit | 11" U type Quick-Insert PP Cotton Filter*1 11" U Type Quick-Insert Active Carbon Filter*2 | |||
RO Unit | 75 GPD RO membrane*1(for 10L) 150 GPD RO membrane*1(for 20L) 200 GPD RO membrane*1(for 30L) | ||||
Subsequent Unit | 11" U Type Quick-Insert Ultra Purification Column*4 0.2μm PES terminal filter*1 Imported PES 5000 Dalton UF Heat Source Column*1(for SCSJ-F and SCSJ-VF series) Dual wavelength(185&254nm) UV lamp(import)*1(for SCSJ-V and SCSJ-VF series) | ||||
Consumption | 48~72W | ||||
Power Supply | AC110/220V±10%, 50/60Hz | ||||
External Size(W*D*H) | 410*270*500mm | ||||
Package Size(W*D*H) | 550*630*750mm | ||||
Gross Weight | 40kg | ||||
Remarks: *The value will be influenced by temperature and feed water's quality.
