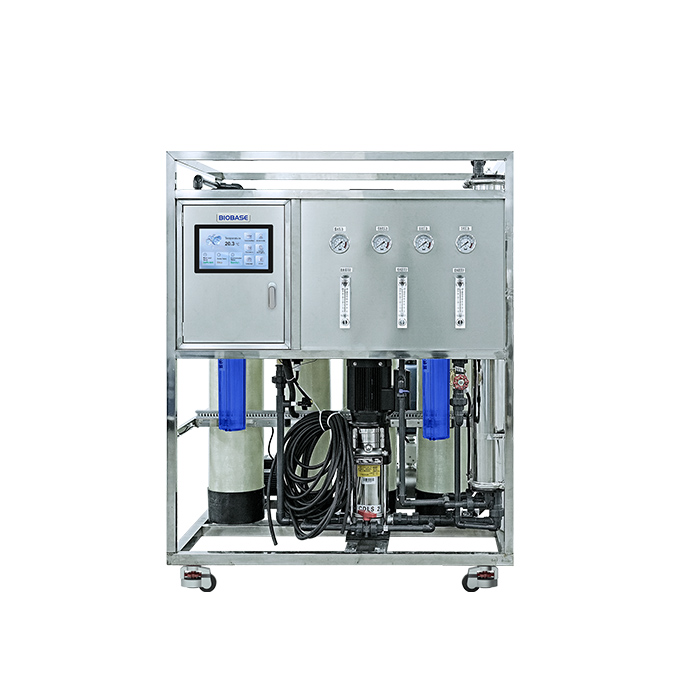

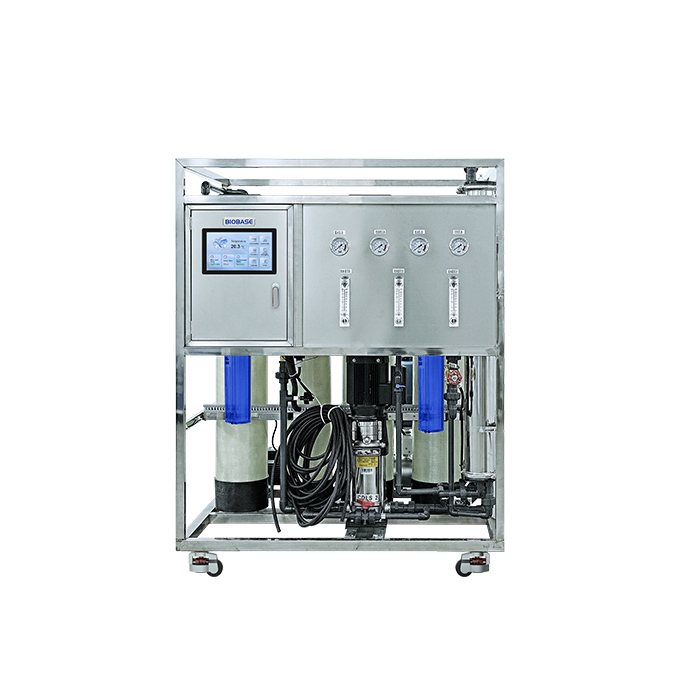

Laboratory Water Purifier 300L/h 600L/h 1000L/h
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model SCSJ-II-300LF SCSJ-II-600LF SCSJ-II-1000LF
Application：
Provide ultra-pure water for biochemical room, laboratory department and laboratory water points.
Features:
1. Automatic operation control, automatic start and stop, unattended.
2. Preprocessing system automatic flushing and regeneration operation.
3. Automatic cleaning and maintenance function of the reverse osmosis host, with automatic pulse flushing function.
4. With no water protection, pressure protection and other safety self-locking devices.
5. Multi-functional monitoring, water quality, flow, pressure and other online display.
6. Intelligent balancing system ensures stable and safe operation of equipment.
7. Integrated structure design of reverse osmosis host, small foot print easy maintenance.
8. Tap water quality test, if not meet the requirements, the machine will automatically alarm.(Except SCSJ-II-1000LF)
9. Increase the use information of consumables, when the consumables expire, the machine will alarm and remind the user to replace the consumables.(Except SCSJ-II-1000LF)
10. Add removable casters for easy installation and field movement.(Except SCSJ-II-1000LF)
11. 10-inch touch screen display, machine operating status and water quality monitoring of each part are displayed on the screen.(Except SCSJ-II-1000LF)
Technical Parameters：
Model | SCSJ-II-300LF | SCSJ-II-600LF | SCSJ-II-1000LF | |
Water Output Type | RO water outlet*1 and DI water outlet*1 | |||
Water Output Speed | 300L/h/set(25℃) | 600L/h/set(25℃) | 1000L/h/set(25℃) | |
External Size(Without Water Tank)(L*W*H) | 1150*930*1530mm | 1150*930*1530mm | 1350*700*1700mm | |
Water Tank(Optional) | Φ720*1150mm | Φ720*1150mm | Φ1100*1350mm | |
External Size(With Water Tank)(L*W*H) | 1870*930*1530mm | 2500*1200*1800mm | ||
Water Utilization Rate | ≥60% | |||
Desalinization Rate | ≥98% | |||
Production Water Quality Treatment Method | Single stage reverse osmosis and mixed bed resin | |||
Control Mode | 10-inch touch screen, fully automatic control | PLC automatic control | ||
Producing Water Quality | Ionic retention rate: 96~99% | |||
DI water: ≥10MΩ.cm under standard GB/T6682-2008 | ||||
Component | Preprocessing device, reverse osmosis device, mixed bed resin and pure water supply device | |||
Power Supply | AC220V, 50Hz(Standard); AC380V, 50Hz(Optional) | |||
Packing Size | Equipment host | 1350*1130*1750mm | 1350*1130*1750mm | 1450*800*1780mm |
Accessory | 1220*820*1250mm | 1220*820*1250mm | 1050*750*880mm | |
Gross Weight(Equipment Host&Accessory) | 450kg | 450kg | 600kg | |
Consumables and Recommended Replacement Time
Standard Quantity( Recommended Replacement Time) | SCSJ-II-300LF | SCSJ-II-600LF | SCSJ-II-1000LF |
Activated Carbon | 15kg(About 2 years) | 15kg(About 2 years) | 50kg(About 2~3 years) |
Quartz Sand | 50kg(About 2 years) | 50kg(About 2 years) | 100kg(About 2~3 years) |
Softening Resin | 25L(About 2 years) | 25L(About 2 years) | 75L(About 2~3 years) |
PP Filter Element | 1pc*2(About 3 months) | 1pc*2(About 3 months) | 1pc*2(About 1~3 months) |
Folding Filter Element | 1pc*2(About 6 months) | 1pc*2(About 6 months) | 1pc*2(About 3~6 months) |
Reverse Osmosis Membrane | 2pcs(About 2 years) | 2pcs(About 2 years) | 4pcs(About 2~3 years) |
Fine Mixed Resin | 30L(About 30000L of water) | 30L(About 2 years) | 50L(Replacement is recommended at 3~6 months) |
Resin Regeneration Exchange Agent | / | / | 3kg(According to the test agent test cycle) |
