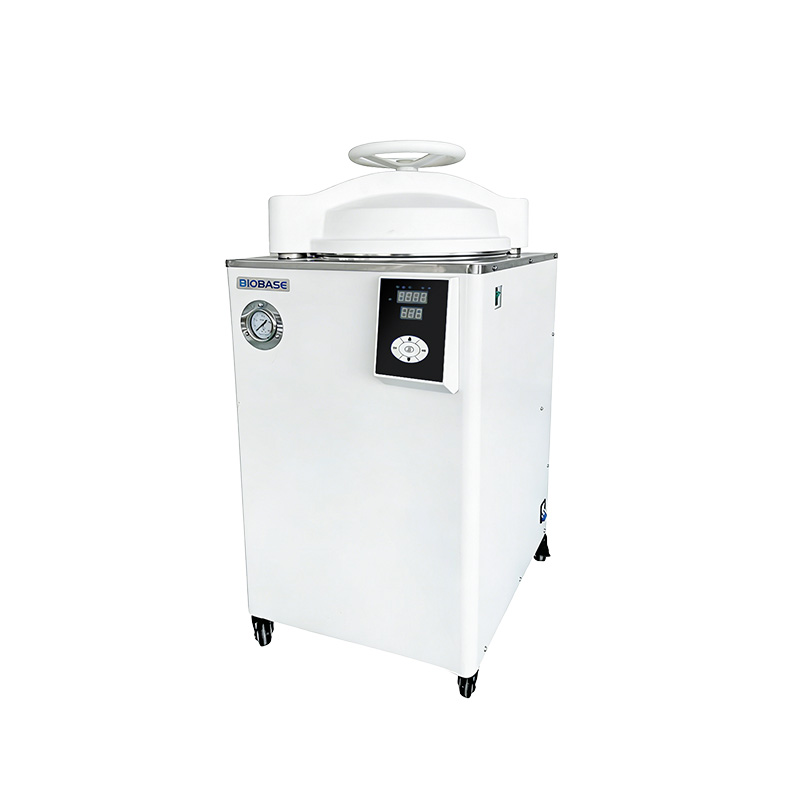

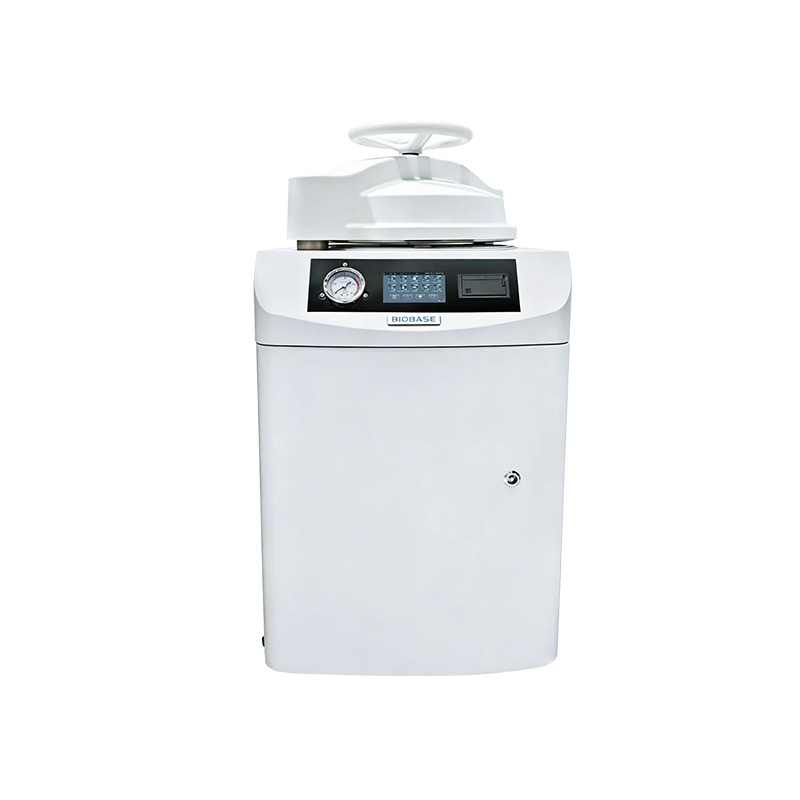

Vertical Autoclave BKQ-B50J BKQ-B75J BKQ-B100J BKQ-B120J
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BKQ-B50J BKQ-B75J BKQ-B100J BKQ-B120J
Introduction:
The Vertical Autoclave is a fully automatic high-pressure steam sterilizer with built-in heating, requiring no external steam source. An SCM controller manages the entire sterilization cycle — heating, sterilizing, and exhausting — without manual intervention. It features a self-expanding silicone sealing ring for superior sealing performance and long service life. An independent maintenance window allows convenient servicing, while an optional printer records the complete sterilization process.
Download
Features：
1. Equipped with an independent maintenance window for convenient servicing.
2. No external steam source required; adopts built-in heating mode.
3. Diverse programs: unwrapped program, packing program, rubber program, dressing program and custom programs.
4. Self-expanding silicone sealing ring with excellent sealing performance and long service life.
5. Single-chip microcomputer (SCM) automatically controls the process, including heating, sterilization, and exhaust, with no manual intervention required.
6. Optional printer for recording the entire sterilization process.
Technical Parameters:
Model | BKQ-B50J | BKQ-B75J | BKQ-B100J | BKQ-B120J |
Capacity | 50L | 75L | 100L | 120L |
Designed Pressure | 0.28Mpa | |||
Working Pressure | 0.23Mpa | |||
Designed Temp. | 150℃ | |||
Working Temp. | 105～136℃ | |||
Temp. Precision | ±0.1℃ | |||
Chamber Material | 304 stainless steel | |||
Chamber Size | Φ372*515mm | Φ372*700mm | Φ372*930mm | Φ372*1110mm |
Basket | φ350*355mm, 1pc | φ350*255mm, 2pcs | φ350*355mm, 2pcs | φ350*255mm, 2pcs; |
Noise | ≤65dB | |||
Altitude | ≤2700m | |||

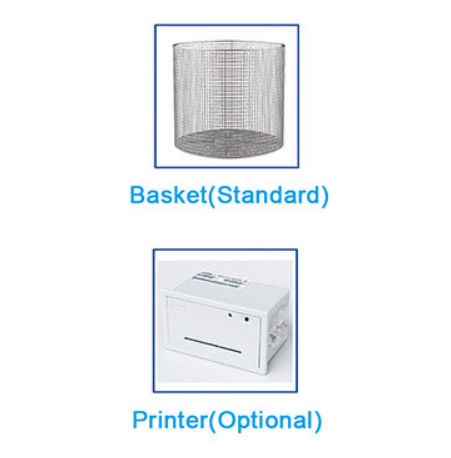

Standard Accessory | Basket | |||
Optional Accessories | Printer, stainless steel appearance | |||
Consumption | 3.5KW | 3.8KW | ||
Power Supply | AC220V, 50/60Hz(Standard); | |||
External Size(W*D*H) | 525*590*950mm | 525*590*1085mm | 525*590*1320mm | 525*590*1485mm |
Net Weight | 64kg | 66kg | 74kg | 88kg |
Package Size(W*D*H) | 750*745*1100mm | 750*745*1240mm | 750*745*1450mm | 750*745*1500mm |
Gross Weight | 104kg | 114kg | 127kg | 142kg |
