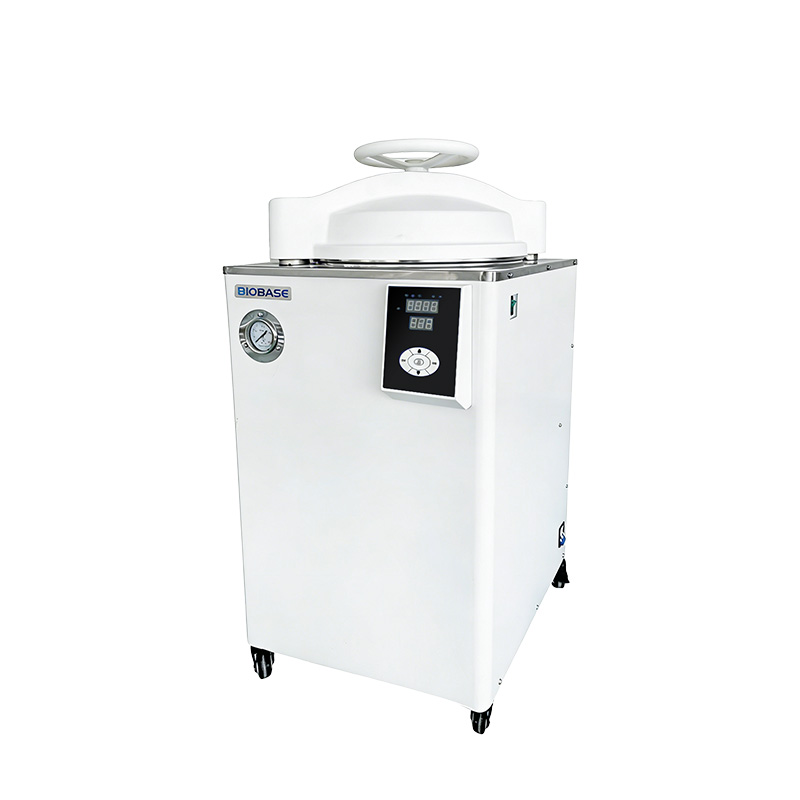

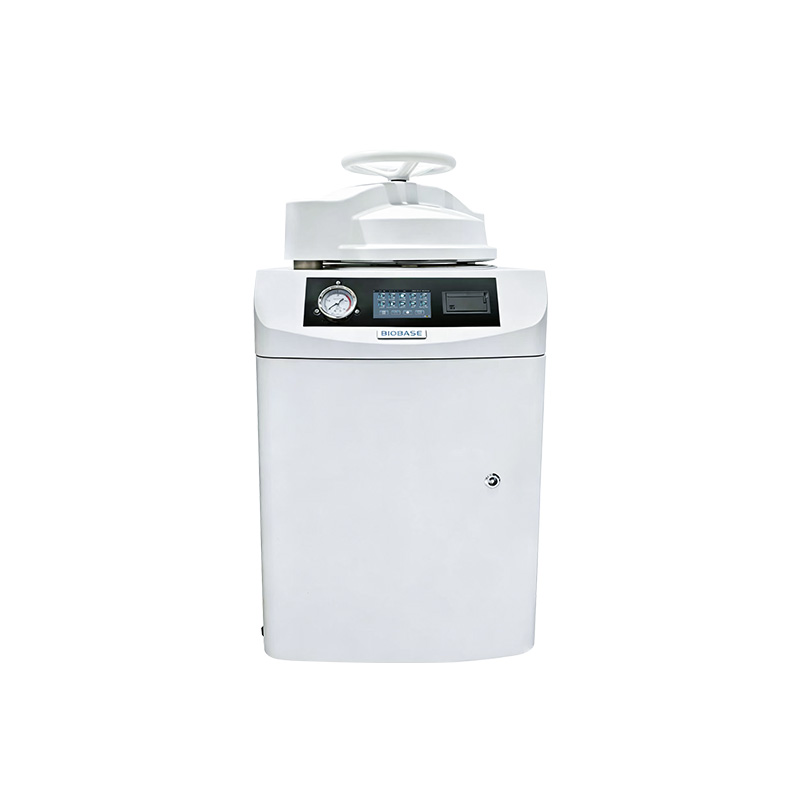

Vertical Autoclave
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BKQ-L60 BKQ-L80 BKQ-L100 BKQ-L120
Introduction:
The Vertical Autoclave is a high-pressure steam sterilizer designed for laboratories and medical facilities. It features diverse built-in programs for liquids, media, rubber, and custom sterilization, with a delayed start function for automated operation. Dual temperature sensors and comprehensive safety protections — including double over-pressure, over-temperature, and dry-burning prevention — ensure safe, reliable sterilization performance.
Download
Features：
1. Diverse programs: exposed program, packaged program, rubber program, dressing program, liquid programs, medium sterilization programs, medium dissolution programs, solid customization and liquid customization.
2. Delayed start function, can operate automatically according to the set time.
3. With fixed temperature sensors and mobile temperature sensors for dual temperature control.
4. Safety device: dual safety interlock device for electronics and mechanics, dual protection device against dry burning, dual over-pressure protection device for electronics and mechanics, over-temperature protection device, over-current protection device and door detection device.
Technical Parameters:
Model | BKQ-L60 | BKQ-L80 | BKQ-L100 | BKQ-L120 |
Capacity | 60L | 80L | 100L | 120L |
Designed Pressure | 0.32Mpa | |||
Working Pressure | 0.23Mpa | |||
Designed Temp. | 150℃ | |||
Working Temp. | 40~138℃ | |||
Temp. Precision | ±0.1℃ | |||
Chamber Material | 304 stainless steel | |||
Chamber Size | Φ386*517mm | Φ386*697mm | Φ386*877mm | Φ386*1057mm |
Basket | Φ365*360mm, 1pc | Φ365*265mm, 2pcs | Φ365*360mm, 2pcs | Φ365*265mm, 1pc； |
Noise | ≤65dB | |||
Altitude | ≤3000m | |||

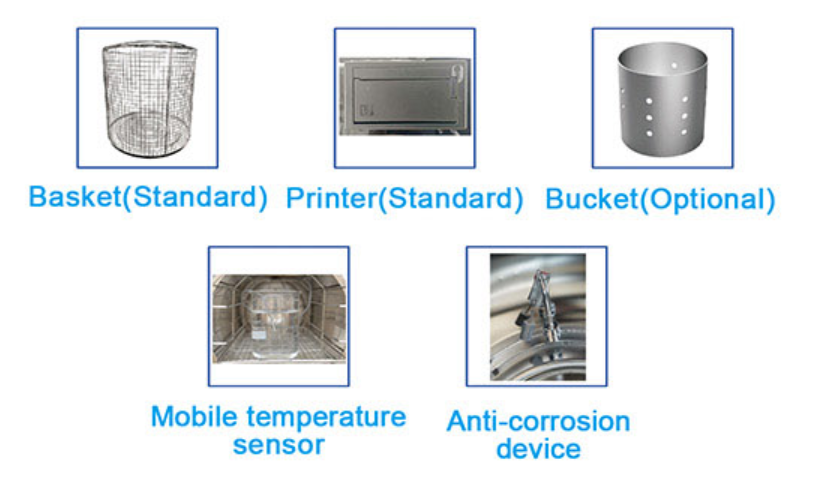

Standard Accessories | Basket, printer, USB, mobile temperature sensor | |||
Optional Accessory | Bucket | |||
Consumption | 4.4KW | 4.7KW | 5.2KW | |
Power Supply | AC220V, 50/60Hz(Standard); | |||
External Size(W*D*H) | 505*750*870mm | 505*750*1050mm | 505*750*1230mm | 505*750*1430mm |
Net Weight | 87kg | 93kg | 103kg | 110kg |
Package Size(W*D*H) | 620*850*1070mm | 620*850*1250mm | 620*850*1430mm | 620*850*1610mm |
Gross Weight | 103kg | 111kg | 121kg | 131kg |
