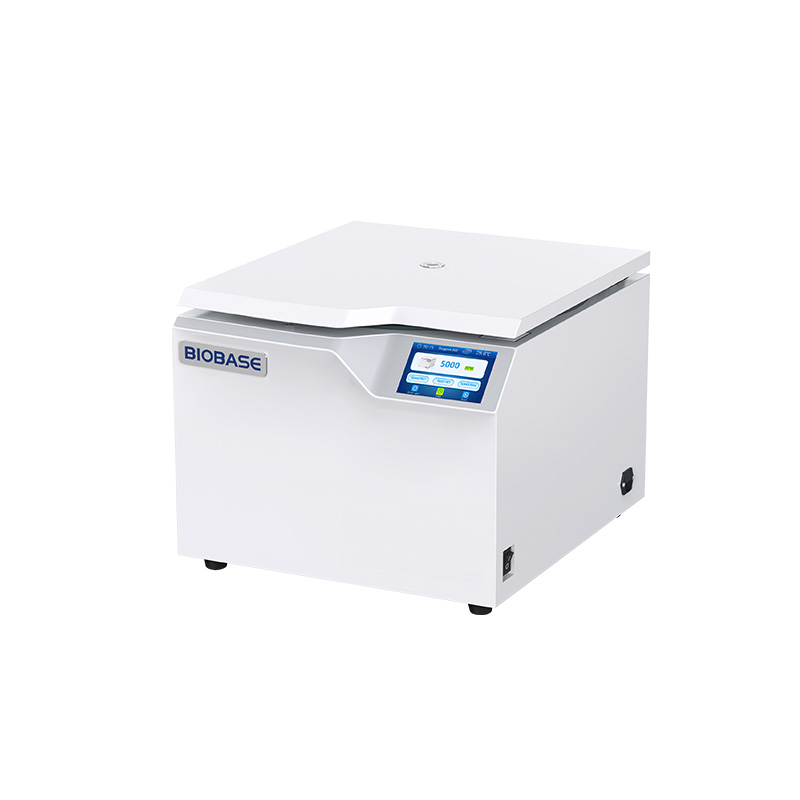

Table Top Low Speed Large Capacity Centrifuge BKC-TL5C
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BKC-TL5C
Introduction：
BKC-TL5C is used for rapid separation of serum, plasma and other body fluids. The Table Top Low Speed Centrifuge is a compact and reliable laboratory instrument designed for gentle separation of cells, blood components, and other biological samples.
Download
Features:
1. It can store 100 programs, automatic memory form the lasting running programs.
2. Adjustable acceleration levels: 20, deceleration levels: 20.
3. All-metal structure multi-layer explosion-proof design, strong and durable.
4. Embedded microprocessor control, DC brushless motor drive, maintenance free, smooth operation.
5. 5 inch touch LCD screen, real-time display all running parameters, the operation interface is intuitive and simple.
6. Support small language customization.
7. Mechanical and electrical integration door lock, easy to use, safe and reliable.
8. Silicone integral sealing ring to avoid aerosol overflow.
9. With self-test, block, overspeed, imbalance, over temperature detection and alarm functions, excellent shock absorption device.
10. Store multiple groups of user-defined programs, boot for the last program.
11. Optional automatic rotor recognition.
Technical Parameters:
Model | BKC-TL5C |
Max. Speed | 5000rpm |
Max. RCF | 3962xg |
Max. Capacity | 4*500ml |
Speed Precision | ±10rpm |
Time Range | 1s~99h59min/Continuous/Short-span |
Power Supply | Standard: AC220V, 50/60Hz Optional: AC110V, 50/60Hz |
Noise | ≤65dB(A) |
External Size(L*W*H) | 500*620*410mm |
Package Size(L*W*H) | 620*740*700mm |
Net/Gross Weight | 56/70kg |
Rotor:
Type | NO. | Volume | Max. Speed(r/min) | Max. RCF(xg) | Adapters |
Swing Rotor | 5M00024 | 48*2/3/4/5/7ml blood collection tube | 4000 | 2952 | / |
5M00025 | 48*5/7ml blood collection tube | 2952 | 2/3/4ml blood collection tube | ||
5M00026 | 72*2/3/4/5/7ml blood collection tube | 2808 | / | ||
5M00052 | 80*2/3/4/5/7ml blood collection tube | 2808 | / | ||
5M00027 | 96*2/3/4/5/7ml blood collection tube | 3104 | / | ||
5M00029 | 16*10/15ml | 2957 | 2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲) | ||
5M00030 | 24*10/15ml | 2957 | |||
5M00031 | 32*10/15ml | 2952 | |||
5M00080 | 48*15ml | 3282 | / | ||
5M00032 | 4*50ml | 4500 | 3962 | 50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml | |
5M00033 | 8*50ml | 4000 | 2952 | ||
5M00034 | 4*100ml | 4500 | 3962 | 16*2/3/4ml blood collection tube, 16*5/7ml blood collection tube | |
5M00036 | 8*100ml | 4000 | 3077 | 32*2/3/4ml blood collection tube, 32*5/7ml blood collection tube | |
5M00037 | 4*250ml(▲) | 3578 | / | ||
5M00038 | 4*250ml(flat bottom) | 2780 | 48*1.5/2ml, 40*2/3/4/5/7ml blood collection tube, 48*2/3/4/5/7ml blood collection tube, 24*10ml(▲), 28*10ml, 20*15ml, 4*50ml(▲), 8*50ml(●), 4*100ml | ||
5M00053 | 4*250ml(biosafety) | 3041 | |||
5M00058 | 4*300ml | 3220 | / | ||
5M00039 | 4*500ml(flat bottom) | 3130 | 48*2/3/4/5/7ml blood collection tube, 64*2/3/4/5/7ml blood collection tube, 36*10ml(●), 36*10ml(▲), 36*15ml(●), 36*15ml(▲), 12*50ml(●), 12*50ml(▲), 16*50ml(●), 16*50ml(▲), 48*15ml(▲), 4*250ml, 32*15ml(▲), 48*10ml(●) | ||
5M00054 | 4*500ml(biosafety) | 3399 | |||
5M00040 | 4*500ml(▲) | 3578 | / | ||
Auto Uncapped Swing Rotor | 5M00047 | 80*2/3/4/5/7ml blood collection tube(auto uncapped) | 3220 | / | |
5M00048 | 108*2/3/4/5/7ml blood collection tube(auto uncapped) | 3399 | / | ||
Microplate Rotor | 5M00045 | 2*2*96well | 2361 | / | |
5M00043 | 4*2*96well | 2987 | / | ||
Angle Rotor | 5M00072 | 12*20ml | 5000 | 3516 | 15ml, 10ml, 5ml, 1.5/2ml |
5M00073 | 12*15ml | 3354 | 1.5/2ml, 2/3/4ml blood collection tube | ||
5M00074 | 8*15/20ml | 2655 | |||
5M00069 | 24*10/15ml | 3494 | 2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲) | ||
5M00075 | 24*10ml | 3354 | 1.5/2ml, 2/3/4ml blood collection tube | ||
5M00076 | 18*10ml | 3354 | |||
5M00077 | 12*10ml | 3354 | |||
5M00084 | 6*50ml | 2711 | 50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml |
With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube.
