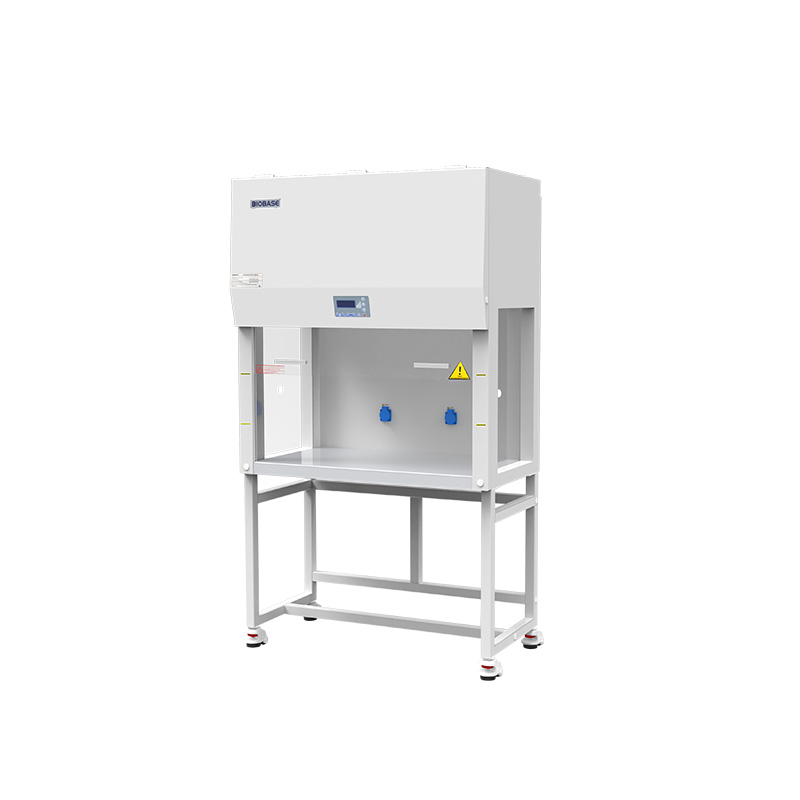

PP Vertical Laminar Flow Cabinet BKCB-800P
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BKCB-800P BKCB-1000P BKCB-1200P BKCB-1500P
Introduction:
The PP Vertical Laminar Flow Cabinet is a high-quality clean air workstation designed for sensitive operations that require a particle-free, sterile environment. Constructed from durable polypropylene (PP), this cabinet ensures strong chemical resistance and is ideal for use in laboratories handling corrosive substances. With a vertical airflow design, the cabinet provides optimal protection for both samples and processes from contamination.
Download
Features:
1. Made of PP material, integrally welded.
2. Resistant to strong acid, alkali and strong corrosion.
3. With memory function in case of power-failure.
4. Interlock function: UV lamp and blower, LED lamp.
5.The work surface is seamlessly welded with 12mm thick PP plate, which is convenient for overall cleaning.
Technical Parameters:
Model | BKCB-800P | BKCB-1000P | BKCB-1200P | BKCB-1500P |
External Size(W*D*H) | 800*710*1800mm | 1000*710*1800mm | 1200*710*1800mm | 1500*710*1800mm |
Internal Size(W*D*H) | 780*540*550mm | 980*540*550mm | 1180*540*550mm | 1480*540*550mm |
Work Surface Height | 750mm | |||
Material | Made of porcelain white PP, resistant to strong acid, alkali and anti-corrosion | |||
Side Window | 5mm toughened glass, anti-UV | |||
Front Window | Manual | |||
Pre-filter | Polyester fiber | |||
HEPA Filter | 99.995% efficiency at 0.3μm | |||
Airflow Velocity | 0.3~0.5m/s | |||
Noise | ≤65dB | |||
Max Opening | 400mm | |||
UV Lamp | 20W*1 | |||
LED Lamp | 8W*1 | |||
Illumination | ≥350lx | |||
Caster | Footmaster caster | |||
Waterproof Socket | One, total load≤500W | |||
Consumption | 650W | 650W | 700W | 850W |
Standard Accessory | UV lamp*1, LED lamp*1, Waterproof socket*1, Base stand | |||
Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | |||
Package Size(W*D*H) | 950*950*1300mm | 1150*950*1300mm | 1350*950*1300mm | 1650*950*1300mm |
Gross Weight | 90kg | 110kg | 130kg | 150kg |
