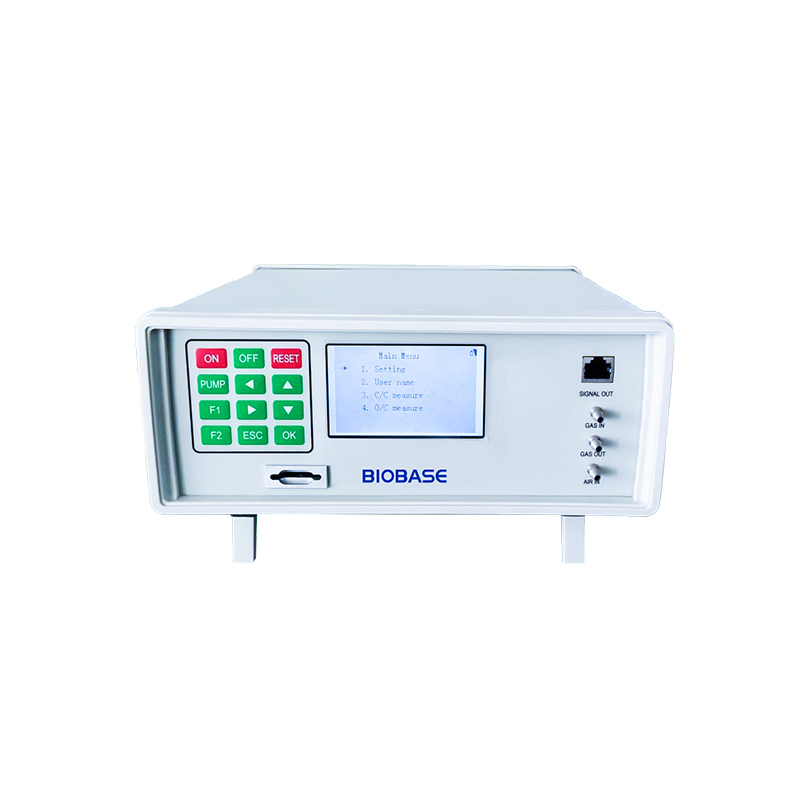

Plant Transpiration Rate Meter
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model PTRM-1000
Introduction:
It is an experimental device that quantifies the water absorption and transpiration rates of plants by measuring changes in the liquid level. Its core principle is based on the tensile force generated by transpiration driving water absorption.
Download
Features:
1. Multiple parameters tested: test air temperature, leaf temperature, air humidity, PAR etc at same time,
and count the transpiration rate and stomatal conductance accordingly.
2. Small size, light, portable and one-person operation.
3. Widely application: with different leaf chamber, the meter is able to be used in field crops, fruit and vegetables, hay etc which are in different shape.
Technical Parameters:
Model | PTRM-1000 | |
Air Temperature | Range | 0~50℃ |
Resolution | 0.1℃ | |
Error | ±0.2℃ | |
Leaf Temperature | Range | 0~50℃ |
Resolution | 0.1℃ | |
Error | ±0.2℃ | |
Air Humidity | Range | 0~100% |
Resolution | 0.1% | |
Error | ≤±3% | |
PAR | Range | 0~2500μmolm·m²•s |
Accuracy | <5μmolm·m²•s | |
Size of Leaf Chamber | 55*20mm, customized available | |
Work Environment | Temperature: 20℃~50℃; Relative Humidity: 0~100%(without condensation of moisture) | |
Power | DC7.4V Li-ion Battery, 7~9 hours continuously working | |
Display | 320×160 lattice | |
External Size(W*D*H) | 260*260*130mm | |
Net Weight | 3.25kg | |
Packing Size(W*D*H) | 520*200*350mm | |
Gross Weight | 12kg | |
