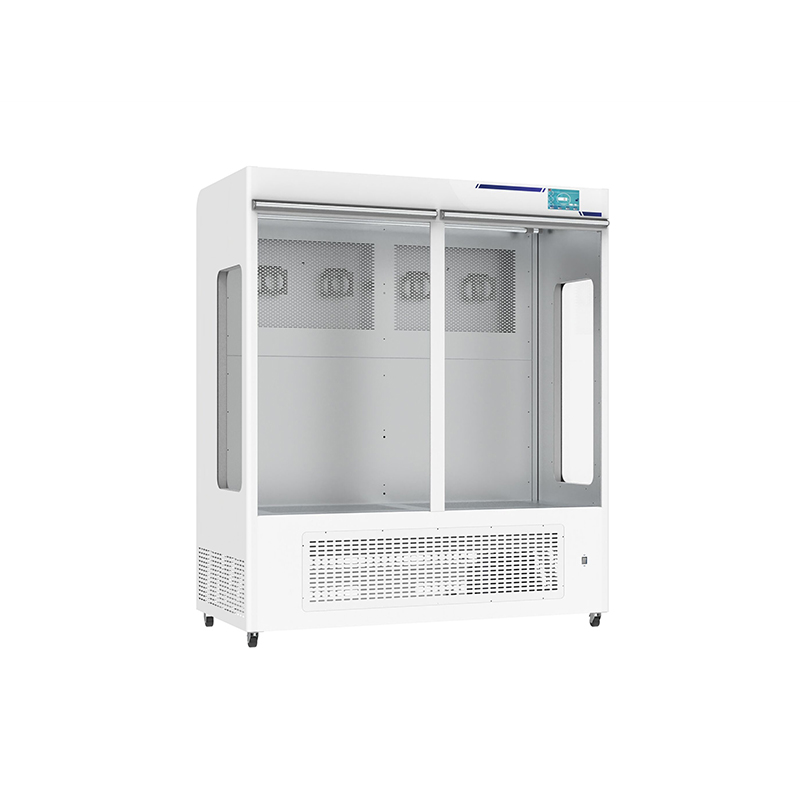

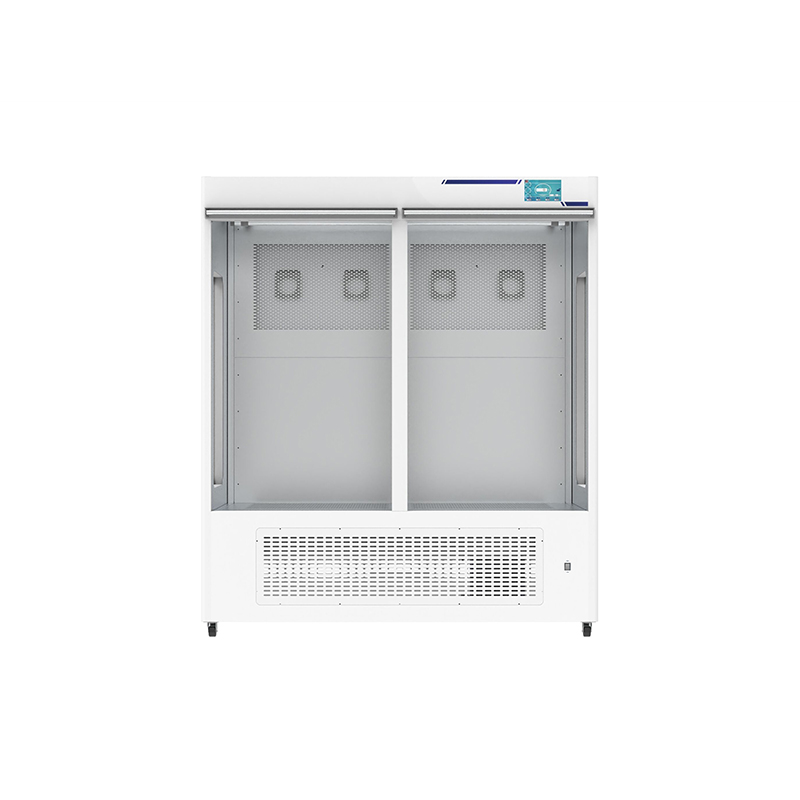

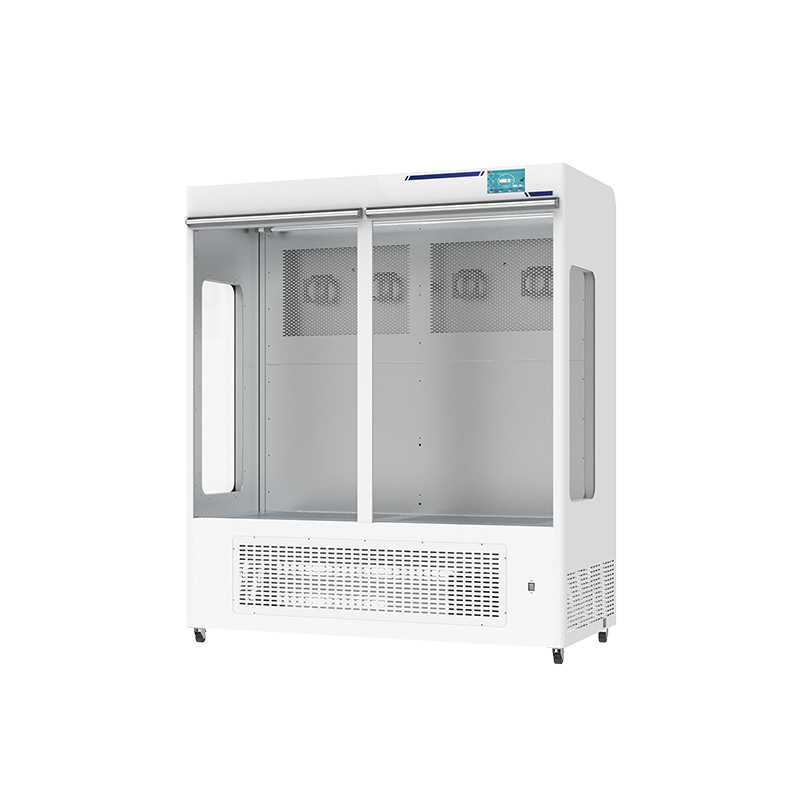

Leukocyte Reduction Cabinet
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BJPX-PB
Introduction:
The leukocyte reduction cabinet mainly consists of an outer shell, refrigeration system, filtration mechanism, operating platform, air curtain, casters, and control system. It employs microcomputer control, real-time digital temperature display, convenient parameter setting, and automatic temperature control. It is a device used for blood filtration.
Download
Application:
The leukocyte reductioncabinet provides a low-temperature environment for the process of removing white blood cells from blood. It is mainly suitable for blood banks, hospitals, clinical transfusion departments, disease diagnosis and treatment medical centers, blood component preparation units, etc., and is an essential instrument for clinical transfusion and blood component preparation research.
Features:
1. Three-dimensional circulating air design ensures precise and uniform temperature within the cabinet.
2. Adopting microcomputer precision temperature control technology provides high temperature control accuracy.
3. A 7.0-inch color LCD touchscreen displays real-time temperature curves.
4. Equipped with leakage current and overvoltage protectors. It features over-temperature and low-temperature alarms. The compressor has delayed start and high-temperature protection functions.
Technical Parameters:
Model | BJPX-PB |
Cooling Method | Forced air cooling |
Temperature Control Range | 2∼10°C |
Temperature Display Resolution | 0.1°C |
Ambient Temperature | 10∼28°C |
Filtering Time | 15min |
Storage Time | 4~24h |
Timing Range | 1∼999min |
Refrigerant | R290 |
Rated Power | 1800W |
Power Supply | AC220V 50Hz (Standard); AC110V 60Hz (Optional) |
Working Area Size(W*D*H) | 1705∗650∗1400mm |
Product Size(W*D*H) | 1800∗890∗2130mm |
Net Weight | 250kg |
Packing Size(W*D*H) | 1960*1040*2310mm |
Gross Weight | 310kg |
