Fruit and Vegetable Respirometer
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-FVR3080A
Introduction
Fruit and Vegetable Respirometer measures respiratory intensity of fruits and vegetables under storage conditions (ambient, cold storage, controlled atmosphere, etc.). It offers selectable respiration chamber volumes (sizing to samples) for faster equilibration, and simultaneous display of CO₂/O₂ concentrations, temperature, and humidity. High-precision, efficient, and user-friendly, it suits food, horticulture, trade, and research institutions.
Download
Features:
1. 3.5"TFT true-color LCD: intuitive operation, clear display.
2. 2G memory: large data storage, easy export.
3. Automated result calculation; USB data export (no extra software needed).
4. USB connectivity to PC for data/results export (Excel format), with chart/curve generation.
5. Micro gas flow meter with adjustable flow rates.
Technical Parameters:
Model | BK-FVR3080A | |
CO2 | Detection Principle | Infrared |
Measuring Range | 0~5000ppm | |
Resolution | 1ppm | |
Linearity | ≤±1%F·S | |
Repeatability | ≤±1% | |
Response Time | ≤15s | |
Zero Shift | ≤±2%F·S/24h | |
Destination Shift | ≤±2%F·S/24h | |
O2 | Detection Principle | Electrochemical |
Measuring Range | 0~95% | |
Resolution | 0.01% | |
Linearity | ≤±2%F·S | |
Repeatability | ≤±1% | |
Response Time | 30s | |
Zero Shift | ≤±2%F·S/24h | |
Destination Shift | ≤±2%F·S/24h | |
Temp. | Measuring Range | -20~95°C |
Resolution | 0.1°C | |
Accuracy | ±0.2°C | |
Humidity | Measuring Range | 0～85% |
Resolution | 0.1% | |
Accuracy | ±0.2%F·S | |
Pre-Heating Time | 15min | |
Power Supply | AC220V,50/60Hz(Standard); AC110V,60Hz(Optional,external transformer) | |

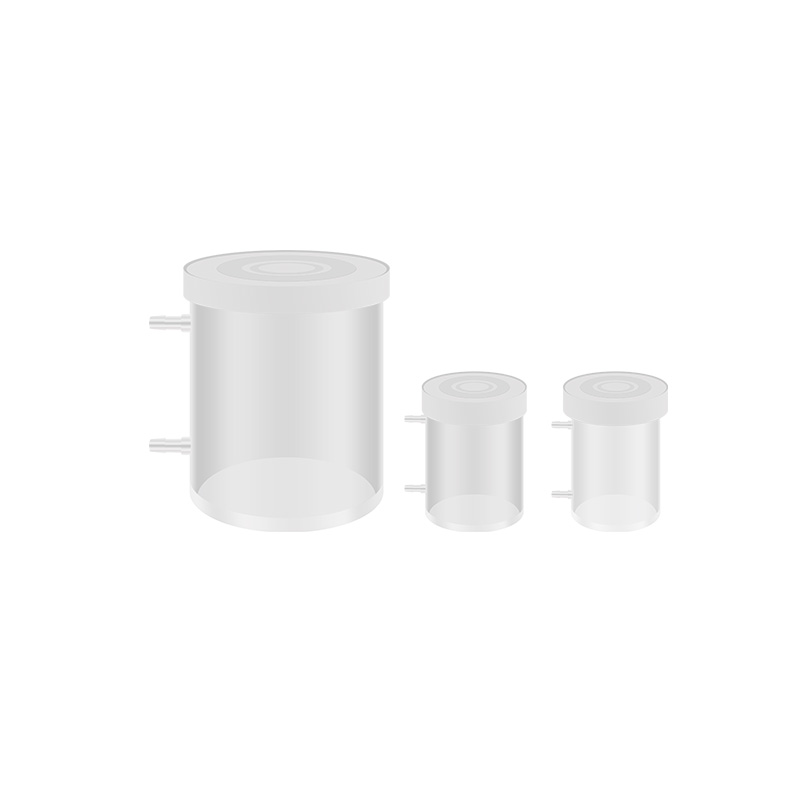

Respiratory Chamber | Standard:Φ120*180mm(2L),Φ60*89mm(0.25L),Φ40*80mm(0.1L) | |
External Size(W*D*H) | 260*260*130mm | |
Package Size(W*D*H) | 550*400*250mm | |
Net Weight | 3.25kg | |
Gross Weight | 10kg | |
