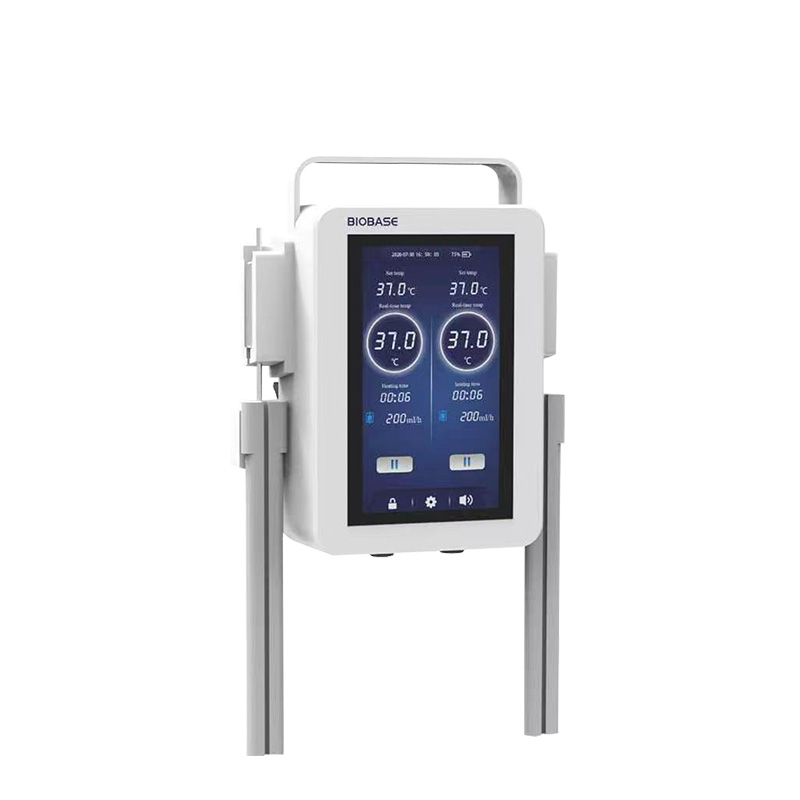

Blood and Fluid Warmer BK-TW201S
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-TW201S
Introduction:
The warmer heats continuously flowing liquid. Heat from the heat exchanger is transferred to the fluid inside the extended infusion tubing to achieve fluid warming. It is intended for medical institutions to warm and maintain the temperature of fluids during patient blood transfusion and intravenous infusion. The device does not come into contact with fluids.
Download
Features:
1. Dual-channel warming; each channel supports independent control, heating, display, monitoring, alarm and protection functions.
2. Real-time temperature detection and control to guarantee accurate and safe infusion fluid temperature.
3. 7-inch high-definition touch screen, displaying current temperature, set temperature, working duration, real-time flow rate and alarm information.
4. Large-capacity rechargeable lithium-ion battery, suitable for patient transfer, emergency rescue and other scenarios.
5. Integrated infusion drop-rate detection module and liquid-level detection module.
6. Fully-enveloped flexible silicone heating tube for reliable heating performance.
7. Plug-gable heating tube with multiple specifications optional, easy for operation and storage.
8. Complete alarm functions including high-temperature alarm, low-temperature alarm and no-liquid alarm.
Technical Parameters:
Specification | BK-TW201S |
Display Screen | 7-inch touch-sensitive display screen |
Temperature Control Range | 32~42℃ |
Temperature Display Resolution | 0.1℃ |
Temperature Control Accuracy | ±0.5℃ |
Ambient Temperature | 15~30℃ |
Preheating Time | ≤2min |
Heating Method | Instant heating (fully-enveloped silicone heating tube) |
Battery Endurance | ≥2h when fully charged (37℃, 40 ml/min) |
Alarm Functions | High or low-temperature alarm, sensor failure alarm, no-liquid alarm, low-battery alarm |
Power Supply | AC100~240V 50/60Hz; built-in lithium-ion battery |
External Size(W*D*H) | 192*95*230mm |
Net Weight | 2.2kg |
Packing Size(W*D*H) | 440*292*277mm |
Gross Weight | 3.2kg |
