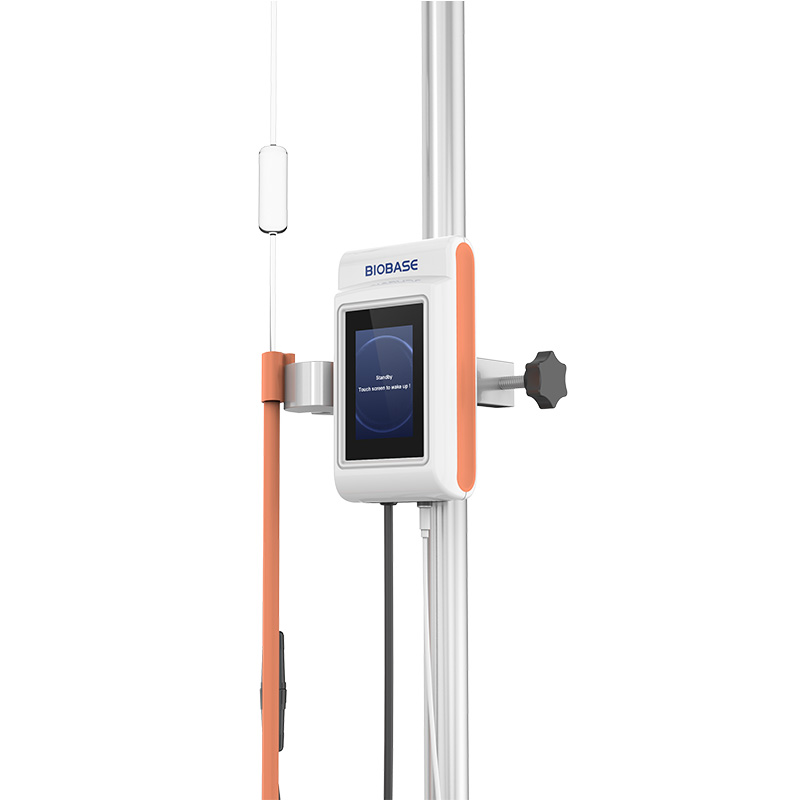

Blood and Fluid Warmer BK-TW110 BK-TW210
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-TW110 BK-TW210
Introduction:
This product is primarily used for warming and maintaining the temperature of fluids(Excluding analgesics, chemotherapy drugs and insulin) administered to the human body.(Non-contact with blood or medication)
Download
Features:

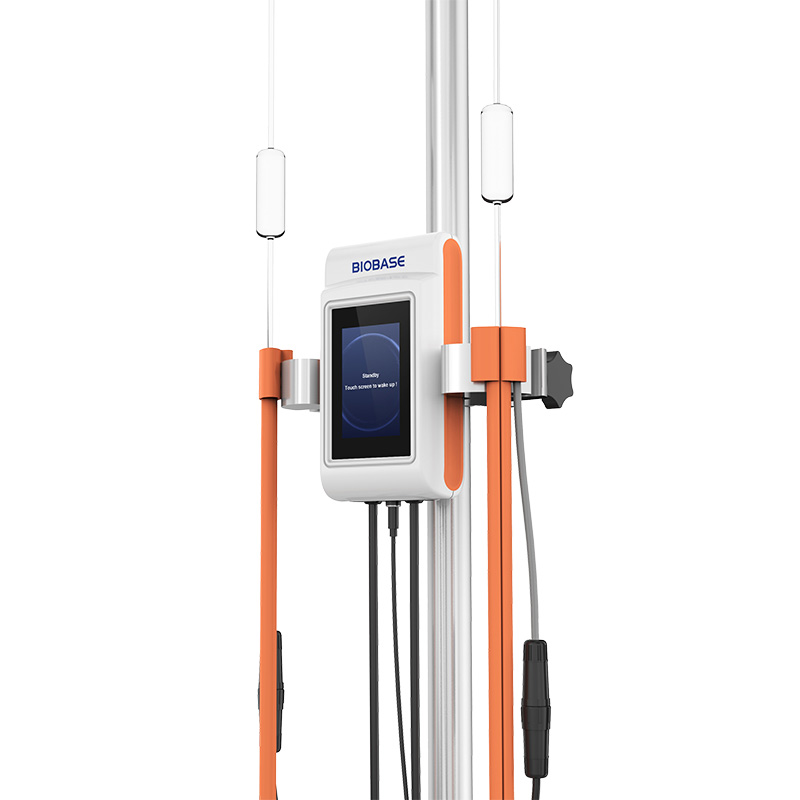

1. BK-TW110 is single-channel blood and fluid warmer, BK-TW210 is dual-channel blood and fluid warmer.
2. Dry heating method, short preheating time, rapid heating.
3. High-quality heating tube assembly, full-wrapped heating, fast heating in cold environment.
4. Heating tube assembly is plug-and-play, convenient and fast.
5. Directly heat conventional blood transfusion and infusion lines, no special consumables required, cost saving.
6. Real-time display of set temperature, real-time temperature, alarm information, working status, etc.
7. With over temperature alarm, under temperature alarm, no liquid alarm function.
Technical Parameters:
Model | BK-TW110 | BK-TW210 |
Channel Count | Single-channel | Dual-channel |
Adjustable Temp. Range | 32.0~42.0°C | |
Temp. Accuracy | 0.1°C | |
Preheating Time | ≤2min(From 20°C to 36°C) | |
Display | LED | |
Display Information | Heating time, set temperature, heating temperature, alarm information indication | |
Inner Diameter of Heating Tube | Standard: 3.5~5mm Optional: 6~7mm | |
Safety Control | The system has built-in alarm test function, and the alarm function can be tested on the panel to see if it is normal | |
Over-temperature Alarm | An alarm will sound if the actual temperature of the heating pipe exceeds the preset temperature by 2°C | |
Under-temperature Alarm | An alarm will sound if the actual temperature of the heating pipe falls below the preset temperature by 3°C | |
Heating Tube Structure | Three-cavity silicone flexible heating sleeve, integrated with 4 sets of heating wires, two sets of independent temperature sensors | |
Power | 60VA | 80VA |
Power Supply | AC100~240V, 50~60Hz | |
External Size(W*D*H) | 172*95*175mm | 195*115*175mm |
Packing Size(W*D*H) | 250*220*230mm | |
Net Weight | 1.7kg | 2.3kg |
Gross Weight | 2.1kg | 2.7kg |
