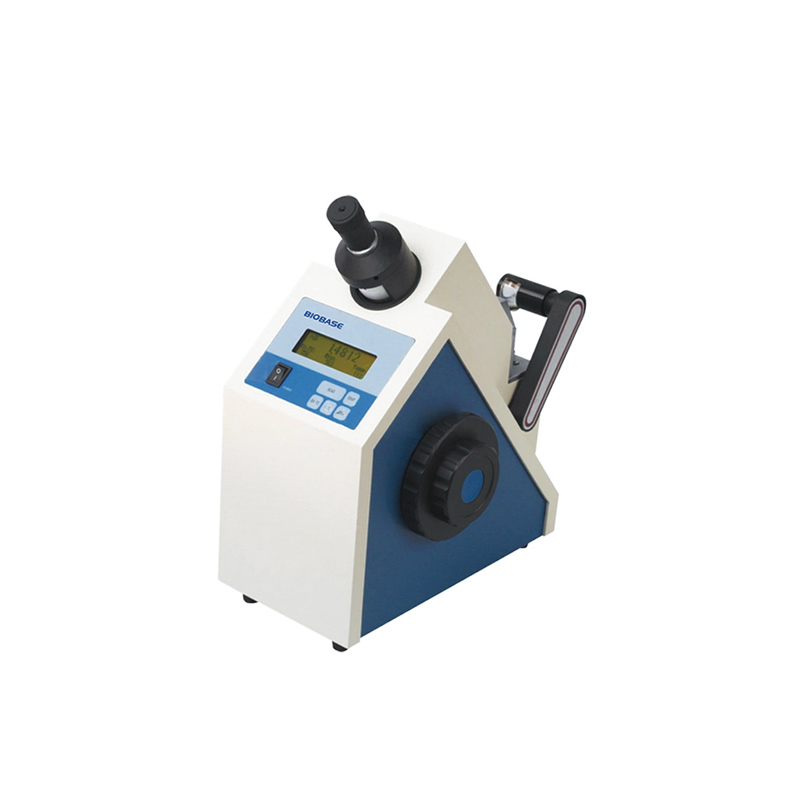

ABBE Digital Refractometer BK-RZT BK-R2S
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-RZT BK-R2S
Introduction:
It is an instrument that uses light to test the concentration of liquids or the refractive index of solids. It is mainly used to determine physical constants such as the refractive index, birefringence and optical properties of substances.
Download
Features for BK-RZT:
1. Full automatic measuring.
2. Touch screen.
3. LCD temperature display, automatic correction and saving the data.
4. Standard RS232 and USB interface.
Features for BK-R2S:
1. Hard glass prism.
2. Standard RS232 interface.
3. Measure the Brix of sugar solution.
4. Visual aim and LCD display.
5. Automatic correcting of the effect of temperature on the Brix.
6. Measuring refractive index nDof transparent or translucent liquid and solid substances.
Technical Parameters:
Model | BK-RZT | BK-R2S |
Measuring Range | 1.30000~1.70000nD, Brix: 0~100% | 1.3000~1.7000nD, Brix: 0~100% |
Measuring Resolution | ±0.00001nD, Brix: ±0.01% | ±0.0001nD |
Measuring Accuracy | ±0.0002nD, Brix: ±0.1% | ±0.0002nD, Brix: ±0.1% |
Test Mode | 8 | / |
Temperature Control Range |
10~60℃
| 0~50℃ |
Temperature Resolution | 0.1℃ | |
Temperature Accuracy | 0.5℃ | |
Interface | RS232, USB | RS232 |
Display | 7' LCD touch screen | LCD |
Prism | Hard glass | |
Power Supply | AC110V/220V±10%, 50/60Hz | |
External Size(W*D*H) | 340*200*110mm | 210*110*310mm |
Package Size(W*D*H) |
500*330*220mm
| 370*240*470mm |
Gross Weight | 9kg | 12kg |
