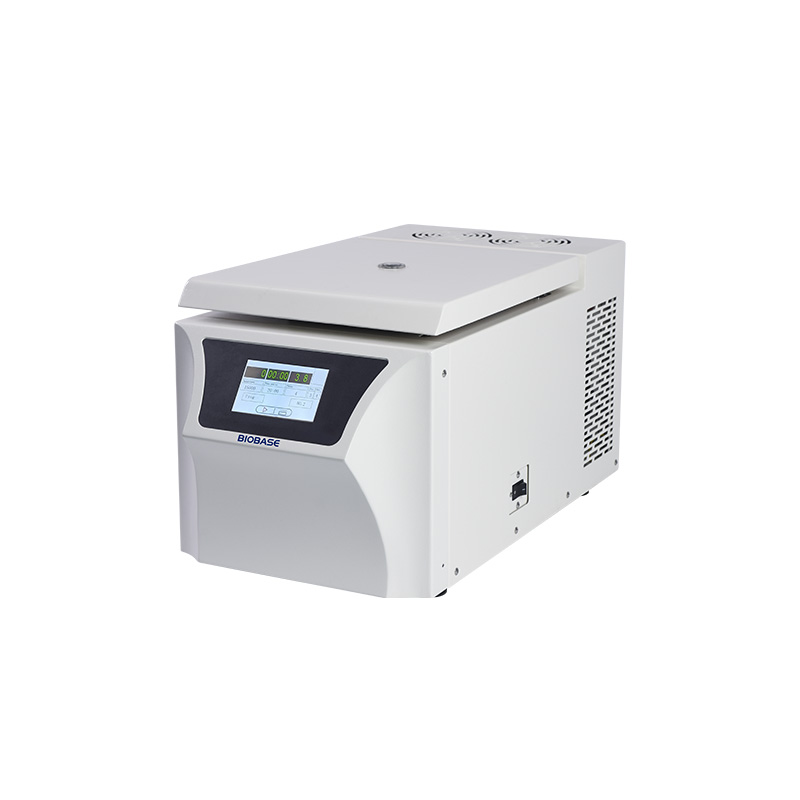

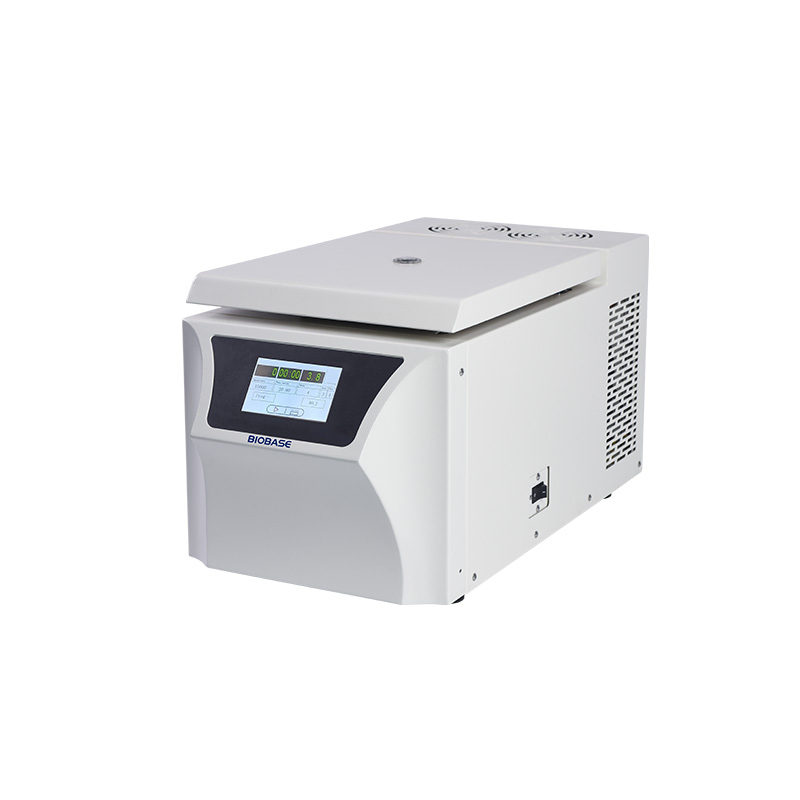

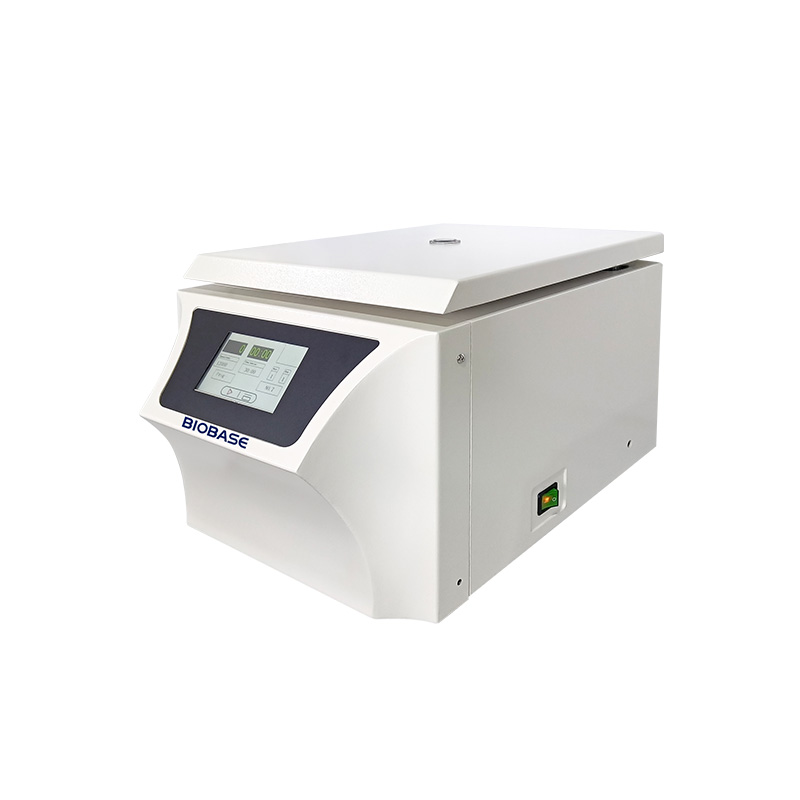

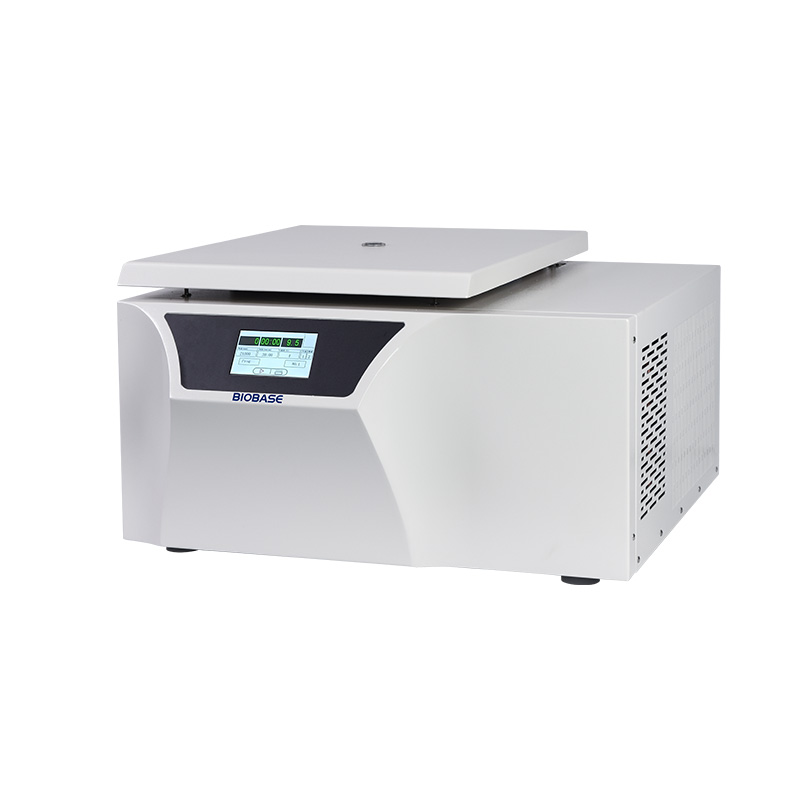

Table Top High Speed Centrifuge BKC-TH16D
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BKC-TH16D
Introduction:
The instrument applies to the experiments in fields of biology, medical science, agriculture, which is the first choice for heredity gene, protein nucleic acid PCR experiment.
Download
Features:
1. 5-inch high-definition touch screen, easily operated, visual display
2. Automatically identify 7 kinds of different rotors, eliminate hidden danger brought by users' maloperation.
3. 9 ranges for raising speed, 10 ranges for speed reduction, to effectively avoid secondary sedimentation, with better centrifugation effect.
4. Available to store 15 series of procedure for users to adjust.
5. Alternating frequency conversion electric machine, high precision of rotary speed control.
6. Diverse protection setting: overspeed protect, door protect, imbalance protect, to ensure safety of both human and machine.
7. Free conversion between rotary speed and centrifugal force.
8. Special air duct ensures that the rotors work at normal temperature.
9. Air-tight rotor, to effectively avoid aerosol.
Technical Parameters:
Model | BKC-TH16D |
Max. Speed | 16500rpm |
Max. RCF | 21500×g |
Max. Capacity | 4*100ml |
Motor | Ac frequency conversion motor |
Speed Precision | ±30rpm |
Time Range | Centrifugal time:1min～99 min59sec Continuous centrifuge: Hold |
Power Supply | AC220±22V 50/60Hz (Standard); AC110V 60Hz (Optional) |
Noise | < 60dB(A) |
External Size(W*D*H)mm | 350*495*350 |
Package Size(W*D*H)mm | 710*450*520 |
Net Weight(kg) | 30 |
Gross Weight(kg) | 45 |
Rotor:
No. | Rotor | Max Speed(rpm) | Max RCF(×g) | Capacity | Dimension of Tube (mm) |
No.1 | Angle Rotor | 16600 | 19200 | 12*2.2/1.5ml | φ10*42 |
No.2 | 12000 | 13900 | 48*0.5ml | φ8*32 | |
No.3 | 14000 | 18756 | 24*2.2/1.5ml | φ10×42 | |
No.4 | 13000 | 19270 | 32*2.2/1.5ml | φ10*42 | |
No.5 | 12000 | 10100 | 12*5ml | φ13*53 | |
No.6 | 12000 | 14800 | 12*10ml | φ16*83 | |
No.7 | 12000 | 14800 | 6*50ml(●) | φ29*105 | |
No.8 | 12000 | 14800 | 6*50ml(▲) | φ29*116 | |
No.9 | 12000 | 15370 | 8*15ml(▲) | φ17*121 | |
No.10 | 10000 | 11200 | 4*100ml | φ38*119 | |
No.11 | Microplate | 4000 | 2300 | 2*2*48well | Microplate |
No.11 | Angle Rotor | 13000 | 16200 | 6*8*0.2ml PCR | / |
With mark(●) or no mark is round-bottom tube, with mark(▲) is sharp-bottom tube
