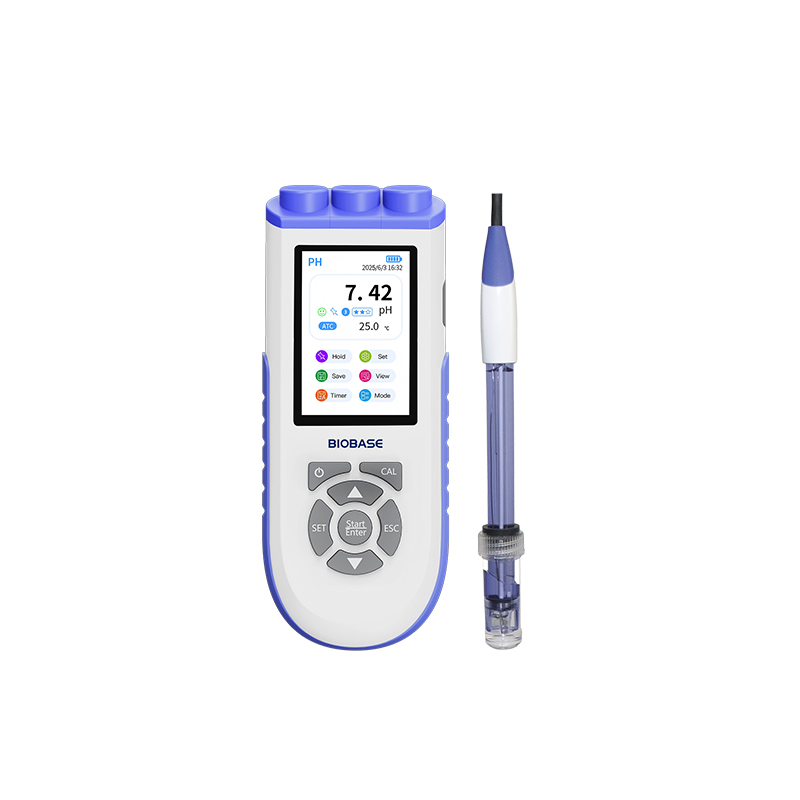

Portable pH Meter PH-P701
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model PH-P701
Introduction:
BIOBASE Portable pH Meter is a compact and reliable solution for quick and accurate pH measurement in laboratories, industries, and fieldwork.
Download
Features:
1. 7-inch color high-resolution(1024*600) capacitive touchscreen with intuitive UI and navigational operation, offering high sensitivity and comprehensive parameter display for user-friendly experience.
2. The main unit housing is PEEK material, featuring high temperature resistance, corrosion resistance, and aging prevention.
3. Built-in ARM 32-bit microprocessor with digital filtering and slip difference technology for enhanced response speed and measurement accuracy. Circuit boards use SMT assembly, improving reliability.
4. Complies with international GLP standards, offering auto-calibration, auto-temperature compensation, data storage, USB output, clock display, wireless printing, function settings, and self-diagnostics.
5. Stores 500 sets of measurements; data transfer via USB drive, compatible with Excel for analysis.
6. USB interface enables data export to computers; dedicated software optional for PC connectivity and data management.
7. Optional Bluetooth module supports wireless printing.
8. Rated IP54 for dust and splash resistance.
Accessories:
Meter; composite electrode; temperature electrode; standard buffer solutions(4.00, 6.86, 9.18); power adapter; electrode holder(With base); carrying case
Technical Parameters:
Model | PH-P701 | |
pH | Range | -2.000~20.000pH |
Resolution | 0.01/0.1pH | |
Accuracy | ±0.02pH | |
Calibration Points | 1~3points | |
Temp. Compensation | 0.0~100.0℃, manual/automatic | |
mV(ORP probe optional) | Range | -1999~1999mV |
Resolution | 1mV | |
Accuracy | ±0.1% FS | |
Temperature | Range | 0~100℃ |
Resolution | 0.1℃ | |
Accuracy | ±0.5℃ | |
Display | 7-inch touchscreen | |
Data Storage | 500 groups | |
Communication Interface | USB2.0, optional Bluetooth module | |
Power Requirements | 3.7V/1800mA rechargeable lithium battery | |
External Size(W*D*H) | 195*135*40mm | |
Package Size(W*D*H) | 480*385*250mm | |
Net Weight | 600g | |
Gross Weight | 4.5kg |
