Portable Multiparameter Meter PH-PC10 PH-CD10 PH-PD10
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model PH-PC10 PH-CD10 PH-PD10
Introduction:

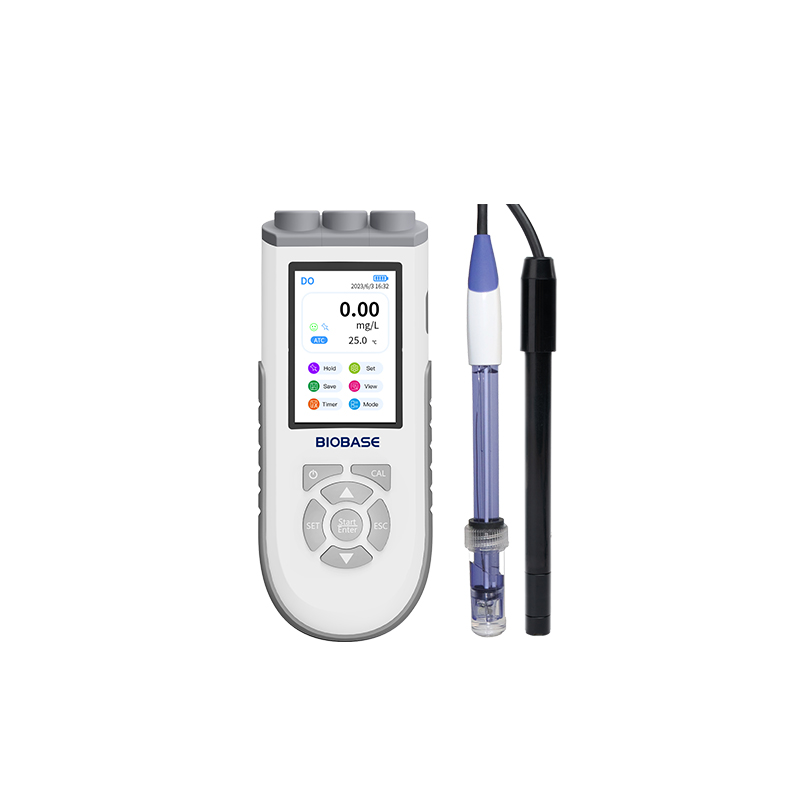

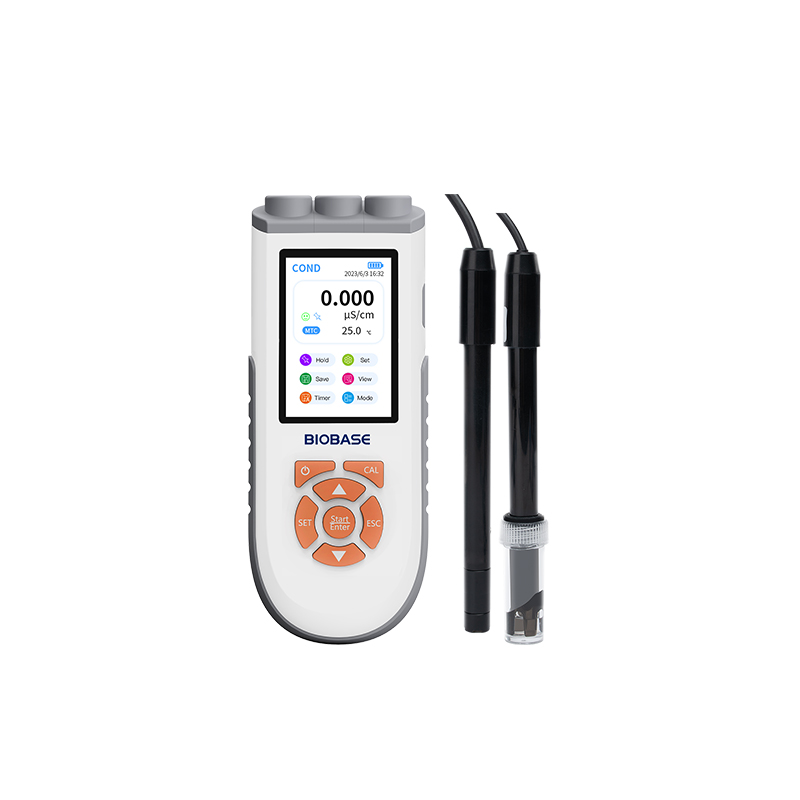

BIOBASE Portable Multiparameter Meter is a compact, reliable, and easy-to-use device designed for fast and accurate water quality analysis in the field or laboratory.
Download
Features:
1. 3.5-inch color screen, user-friendly interface.
2. Data logging up to 3000 groups.
3. Cal points: pH: 1-3pts; Cond: 1pt; DO: 100% Oxygen or Zero oxygen calibration.
4. Equipped with a USB Type-C charging port, conforms with the EU new law.
5. Ideal for use in harsh environments — IP57 Waterproof and Dustproof rating, silicone socket protector and grip cover protect the instrument from general impact.
6. Large backlit LCD displays measuring value and temp. along with icons of stable readings.
7. Foldable stand allows use as a benchtop meter.
8. For general liquid test.
Accessories:
PH-PC10: Meter; plastic ATC pH electrode D201T-H; pH buffer solution: 4.00/7.00/10.01 50mL, one for each; plastic Cond electrode;(K=1.0, PC housing, for general liquid test); standard Cond solution: 84uS/1413uS/12.88mS/cm, 50mL, one for each; Type-C charger cable; hard carrying case
PH-CD10: Meter; POM DO electrode; DO refill solution: 30mL*1; DO replacement sensor caps*3; plastic Cond electrode(K=1, PC housing, for general liquid test); standard Cond solution: 84uS/1413uS/12.88mS/cm, 50mL, one for each; USB-C charger cable; hard carrying case
PH-PD10: Meter; plastic ATC pH electrode1; pH buffer solution: 4.00/7.00/10.01 50mL, one for each; POM DO electrode; DO refill solution: 30mL*1; DO replacement sensor caps*3; USB Type-C charger cable; hard carrying case
Technical Parameters:
Model | PH-PC10 | PH-CD10 | PH-PD10 | |
pH | Range | -2.000~20.000pH | / | -2.000~20.000pH |
Resolution | 0.01/0.1/0.001pH | / | 0.01/0.1/0.001pH | |
Accuracy | ±0.002pH±one digit | / | ±0.002pH±one digit | |
mV(ORP probe optional) | Range | -1999mV~1999mV | / | -1999mV~1999mV |
Resolution | 0.1mV | / | 0.1mV | |
Accuracy | ±0.03% FS±one digit | / | ±0.03% FS±one digit | |
Conductivity | Range | 0~2000.0mS/cm(Auto divided: 0~19.999μS/cm; 20.0~199.9μS/cm; 200~1999μS/cm; 2.00~19.99μS/cm; 20.00~199.9μS/cm; 200.0~2000μS/cm), match test range: 0~200.0mS/cm | / | |
Resolution | 0.001/0.01/0.1/1 | / | ||
Accuracy | ±0.5%FS±one digit | / | ||
ATC Range | 0~50℃ | / | ||
TDS | Range | 0~1000.0g/L(TDS factor adjustable) | / | |
Resolution | 0.001/0.01/0.1/1 | / | ||
Accuracy | ±0.5%FS±one digit | / | ||
ATC Range | 0~50℃ | / | ||
Resistivity | Range | 5.000~100.0MΩ·cm | / | |
Resolution | 0.001/0.01/0.1/1 | / | ||
Accuracy | ±0.5%FS±one digit | / | ||
ATC Range | 0~50℃ | / | ||
Salinity | Range | 0~100.0ppt | / | |
Resolution | 0.001/0.01/0.1/1 | / | ||
Accuracy | ±0.5%FS±one digit | / | ||
ATC Range | 0~50℃ | / | ||
DO | Range | / | 0~20.00mg/L, 0~200.0 % | |
Resolution | / | 0.01 or 0.1 mg/L | ||
Accuracy | / | ±0.30 mg/L | ||
ATC Range | / | 0~50℃ automatically | ||
Salinity Compensation | / | 0~45ppt manual | ||
Barometric Compensation | / | 0~200kPa automatically | ||
Temperature | Range | -10.0~135.0℃/14.0~275.0℉ | ||
Resolution | 0.1℃ | |||
Accuracy | ±0.2℃ | |||
Data Storage/Content | 3000 groups(Serial number, mode, measuring value, temp, date: Y/M/D/H/M) | |||
Data Export/Charging Port | Type-C - USB | |||
PC Software Function | GLP measurement management Two-level user management The user's operation history log Meter usage management Automatically /manually timing data storage | |||
Power Requirements | Rechargeable lithium battery*1 | |||
External Size(W*D*H) | 79*32*204mm | |||
Package Size(W*D*H) | 380*330*130mm | |||
Net Weight | 305g | |||
Gross Weight | 3kg | |||
