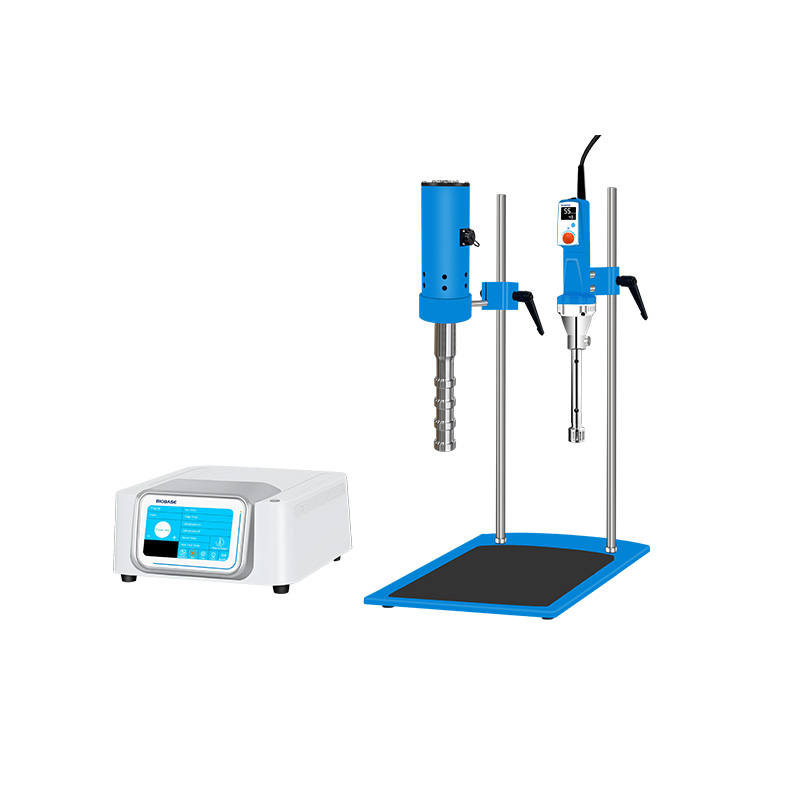

High Speed Ultrasonic Homogenizer
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BH-2000
Introduction:
The BIOBASE High Speed Ultrasonic Homogenizer is a powerful tool for cell disruption, sample emulsification, homogenization, and nanoparticle dispersion.
Download
Features：
1. The ultrasonic controller has the function of power adjustment, and the output power can be continuously adjusted to meet the requirements of various sample objects.
2. Equipped with display working status, easy to observe the working condition of ultrasonic controller.
3. BK25P-30JX special high shear force working head can meet the processing volume of 2~10L, which is suitable for different sample processing requirements.
4. Providing a linear speed of 47m/s for sample homogenization.
5. Two-way support bar design combined with dual-hole position fixed clamps composed of integrated lift adjustment system to make your experiments, reliable and safer.
Technical Parameters：
Model | BH-2000 |
Capacity | 2~10L |
Timing Range | 0-99h59m59s |
Display | 7-inches touch screen display |
Temperature Range | -10~199℃ |
Consumption Regulation | Automatic recognition |
Working Head Size | Φ40*250mm |
Working Head Type | Slub type |
Minimum Immersion Depth | 150~300mm |
Emulsification Display | LCD Display |
Emulsification Speed | 4000~26000rpm adjustable |
Emulsification Head Material | 316L |
Emulsification Head Diameter | Stator outer diameter 30mm |
Maximum Shear Speed | 47m/s |
Emulsification Input Consumption | 1050W |
Emulsification Output Consumption | 750W |
Drive motor | Brushless DC motor |
Consumption | 2000W |
Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
Packing Size(L*W*H) | 810*410*150mm, 540*310*410mm |
Gross Weight | 13kg, 19kg |
Optional Accessories:
Working head:
Model | Capacity（ml） | Viscosity | Material |
BK25P-30JX(Standard) | 250~10000 | 15000 | 316 |
BK25P-30JQ | 250~8000 | 15000 | 316 |
Variator pole:
Type | Specification（Diameter*Length） | Capacity | Consumption Adjustment Mode |
Type 1 (Standard) | Φ40*250mm | 500~5000ml | Automatic adjustment |
Type 2 | Φ40*370mm | 1000~8000ml | Automatic adjustment |
Type 3 | Φ40*490mm | 1000~10000ml | Automatic adjustment |
