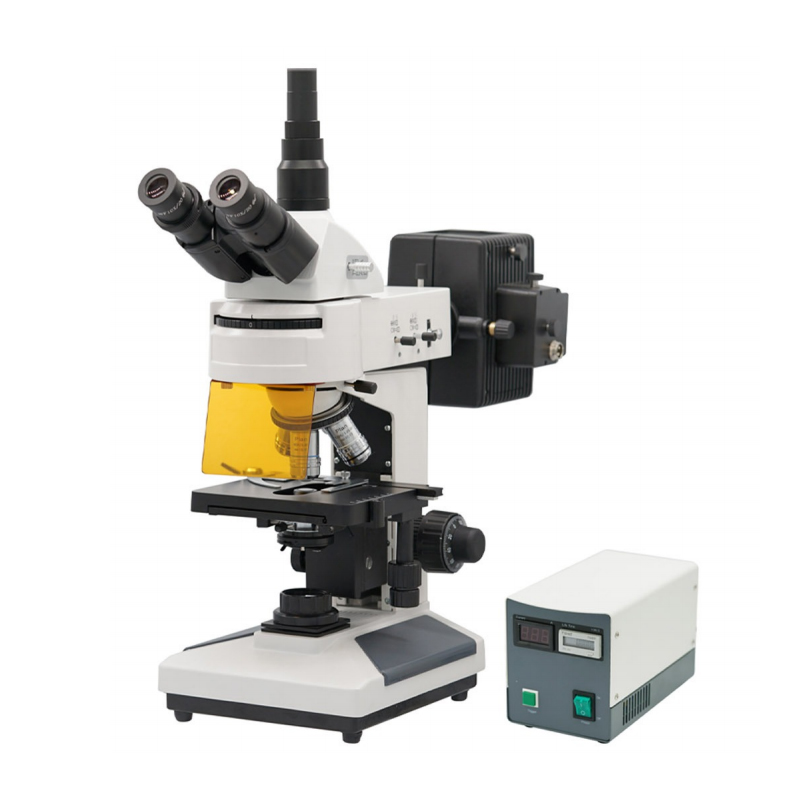

Fluorescence Biological Microscope(customize)
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BFM-13C
Introduction:
The Fluorescence Biological Microscope is an advanced imaging instrument designed for high-precision analysis of biological samples under fluorescence illumination.
Download
1. Eyepiece
Type | Magnification | Field Diameter |
Wide Plan Field Eyepiece | 10X | Φ22mm |
2. Objective
Type | Magnification | Numerical Aperture(NA) | Working Distance |
Infinite | 4X | 0.1 | 37.5mm |
Apochromatic | 10X | 0.25 | 7.31mm |
Fluoresecent | 40X | 0.65 | 0.63mm |
Objective | 100X | 1.25 | 0.18mm |
Mechanical Tube Length | Infinite distance system | ||
Total Magnification | 40X~1000X | ||
Nosepiece | Fourtuple nosepiece | ||
Stage | Stage Size: 160x140mm Moving Range: 75x50mm | ||
Focusing Range | 30mm coaxial coarse and fine focus adjustment, fine focusing scale 0.002mm | ||
Condenser | Abbe N.A.1.25 Condenser With Iris Diaphragm | ||
Exciting | B, G | ||
Filter | Blue, Yellow, Green | ||
Light Source | Epi-illumination: 220V(110V)/100W mercurylamp, powersupply box Transmission Illuminate: Halogen Bulb 6V/20W | ||
