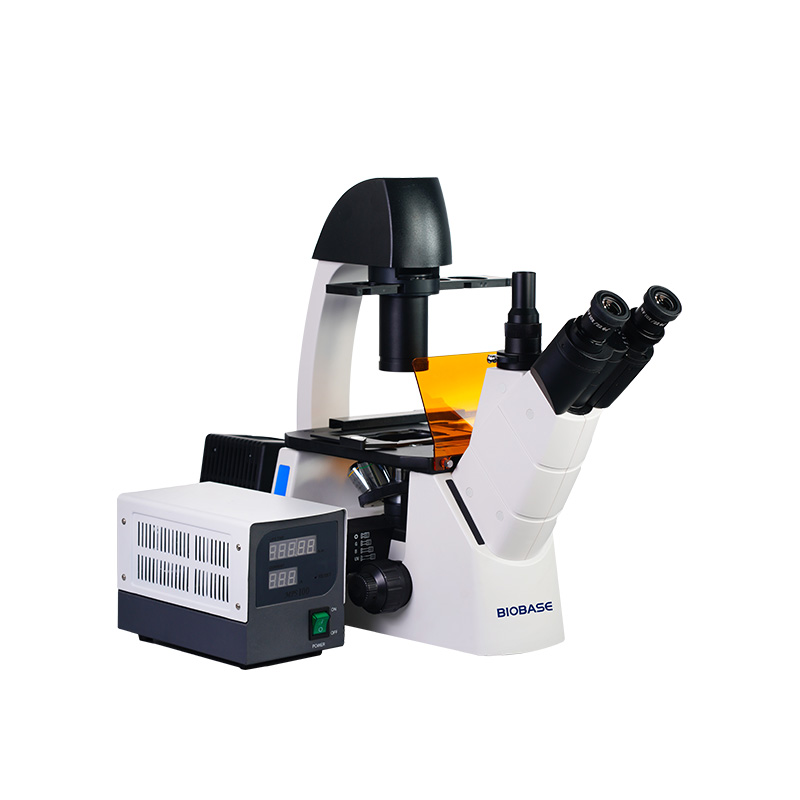

Fluorescence Biological Microscope BM-37XYIII
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BM-37XYIII
Introduction:
The Fluorescence Biological Microscope BM-37XYIII is an inverted fluorescence microscope built on a modular infinity optical system with long working distance plan-contrast objectives. It features a binocular view head, standard UV/B/G three-band fluorescence excitation, and white LED illumination. The sliding-pull phase-contrast condenser with a 75mm working distance, combined with multiple culture dish trays and a 5-position nosepiece, makes it ideal for live cell observation and fluorescence imaging in hospital pathology and research laboratories.
Download
Technical Parameters:
Model | BM-37XYIII |
Optical System | Modular infinity optical system |
Eyepiece | 10X/22mm |
View Head | Binocular view head, interpupillary distance adjustment range: 50~75mm |
Objective | Infinity plan achromatic objective 4X; Infinity working distance plan-contrast objective 10X PH; Infinity working distance plan-contrast objective 20X PH; Infinity working distance plan-contrast objective 40X PH; Infinity Working Distance Plan Objective 10X(Optional); Infinity Working Distance Plan Objective 40X(Optional) |
Fluorescence Accessories | Standard: Ultraviolet (UV): EX: 330nm~380nm, DM: 400nm, BA=420nm; Blue (B): EX: 450nm~490nm, DM: 505nm, BA=520nm; Green (G): EX: 510nm~560nm, DM: 575nm, BA=590nm Others can be optional |
Focusing System | Coaxial coarse and fine adjustment mechanism, equipped with limit and locking devices, low-position coaxial focusing handwheel, fine adjustment handwheel increments of 2μm, focusing travel of 11mm. |
Nosepiece | 5-position nosepiece |
Stage | Stage dimensions: Size: 242*172mm, Movement range: 75*50mm; Circular transparent stage plate: Outer ring φ110mm, inner ring φ32mm; Cultural dish tray I: 86*129.5mm, compatible with circular 87.5mm trays; Cultural dish tray II: 34*77.5mm, compatible with circular 68.5mm trays; Cultural dish tray III: 57*82mm |
Sliding-pull phase-contrast condenser lens, working distance: 75mm, numerical aperture: 0.3. | |
Illumination | |
Power Supply | |
Packing Size(W*D*H) | 680*670*620mm |
Gross Weight | 24kg |
