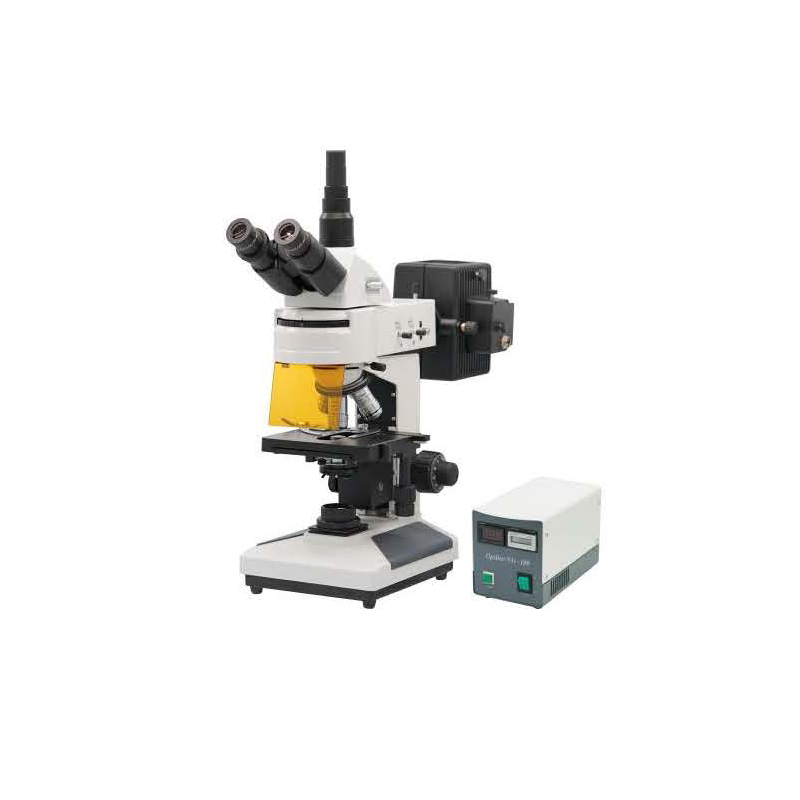

Fluorescence Biological Microscope BM-13CYII (Customized)
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BM-13CYII(Customized)
Introduction:
The Fluorescence Biological Microscope is an advanced imaging instrument designed for high-precision analysis of biological samples under fluorescence illumination.
Download
Fluorescence Biological Microscope BM-13CYII (Customized)
Eyepiece:
| Type | Magnification | Field diameter |
| Wide Plan Field Eyepiece | 10X | Φ22mm |
Objective：
| Type | Magnification | NA | Working distance |
| Infinite Apochromatic Fluoresecent Objective | 4X | 0.1 | 37.5mm |
| 10X | 0.25 | 7.31mm | |
| 40X | 0.65 | 0.63mm | |
| 100X | 1.25 | 0.18mm |
| Mechanical Tube Length | Infinite Distance system |
| Total Magnification | 40X~1000X |
| Nosepiece | Fourtuple Nosepiece |
| Stage: | Stage Size 160x140mm Moving Range 75x50mm |
| Focusing Range: | 30mmCoaxial coarse and fine focus adjustment,Fine Focusing Scale0.002mm |
| Condenser | Abbe N.A.1.25 Condenser With lris Diaphragm |
| Exciting | B、G |
| Filer | Blue、Yellow、Green Epi-illumination: 220V(110V)/100W mercury lamp、power supply box |
| Light source | Transmission illuminate: Halogen Bulb 6V/20w |
