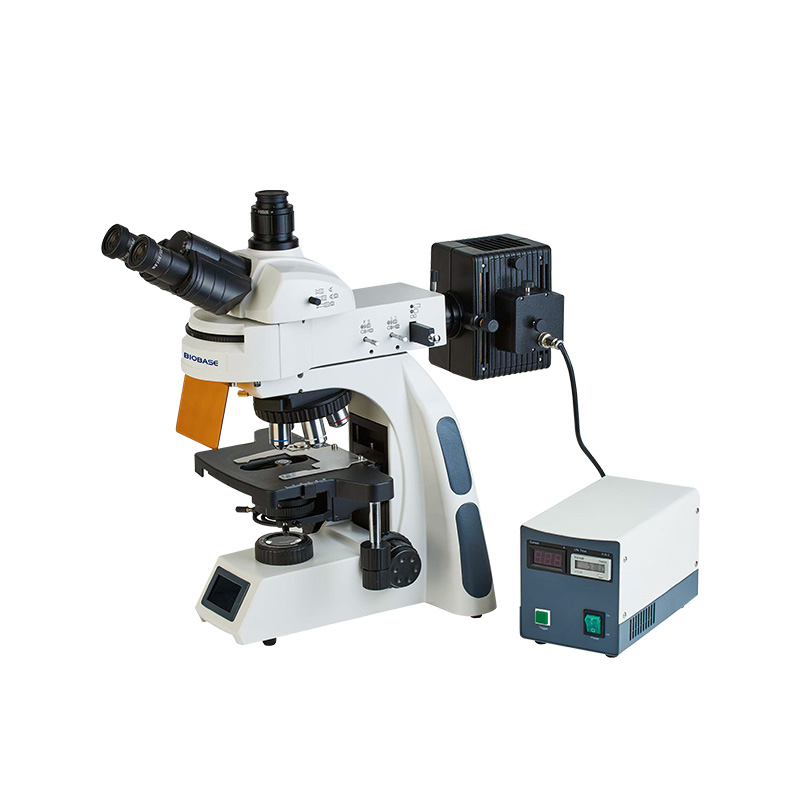

Fluorescence Biological Microscope BFM-21AYFIV
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BFM-21AYFIV
Introduction:
The Fluorescence Biological Microscope BFM-21AYFIV is a high-performance upright epi-fluorescence microscope built on an infinity optical system with infinity-plan semi-apochromatic objectives ranging from 4X to 100X oil. It features a trinocular view head, standard UV/B/G/V four-band fluorescence excitation, and a warm white LED illumination system. The 5-position nosepiece, 1μm fine adjustment coaxial focusing with locking and limiting devices, and a ceramic-coated stage ensure precise, durable operation for advanced clinical diagnosis and research applications.
Download
Technical Parameters:
Model | BFM-21AYFIV |
Optical System | Infinity optical system |
Eyepiece | 10X/22mm |
View Head | Trinocular view head, inclined at 30°, interpupillary distance adjustment 48~75mm |
Objective | Infinity-plan semi-apochromatic objectives: 4X/0.13 WD=12mm; Infinity-plan semi-apochromatic objectives: 10X/0.3 WD=10.7mm; Infinity-plan semi-apochromatic objectives: 20X/0.5 WD=2.5mm; Infinity-plan semi-apochromatic objectives: 40X/0.75 WD=1.1mm; Infinity-plan semi-apochromatic objectives: 100X(Oil)/1.30 WD=0.25mm |
Fluorescence Accessories | Standard: Ultraviolet (UV): EX: 330nm~380nm; DM: 400nm; BA=420nm Blue (B): EX: 450nm~490nm; DM: 505nm; BA=520nm Green (G): EX: 510nm~560nm; DM: 575nm; BA=590nm Violet (V): EX: 380nm~420nm; DM: 430nm; BA=450nm Others can be optional |
Focusing System | Coaxial coarse and fine adjustment, equipped with limit and locking devices, low-position coaxial focusing handwheel, fine adjustment handwheel with 1μm increments. |
Nosepiece | 5-position nosepiece |
Stage | Right-hand low-position coaxial drive knob; high-wear-resistant ceramic-coated stage; stage dimensions: 180*160mm; movement range: 75*50mm. |
Abbe Condenser N.A.1.25 | |
Illumination | |
Power Supply | |
Packing Size(W*D*H) | 630*465*520mm |
Gross Weight | 20kg |
