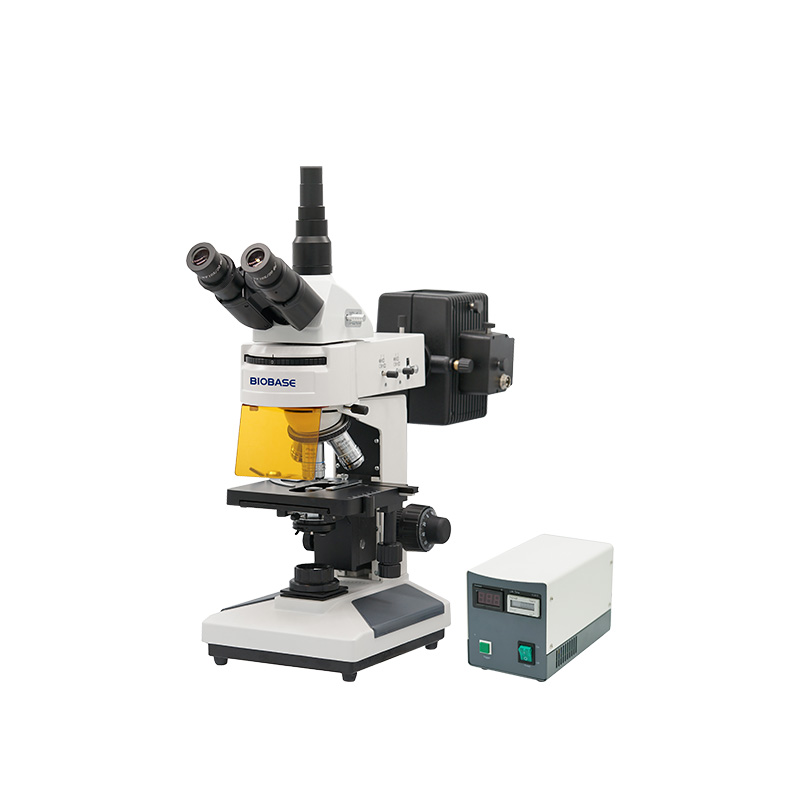

Fluorescence Biological Microscope
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BFM-13CYII
Introduction:
The Fluorescence Biological Microscope BFM-13CYII is an upright epi-fluorescence microscope built on an infinity optical system with infinity plan achromatic objectives from 4X to 100X. It features a trinocular view head inclined at 30° with 10X/22mm eyepieces, standard blue and green fluorescence excitation, and a white LED illumination system with adjustable brightness. The coaxial coarse and fine focusing system with locking and limiting devices, along with a double-layer mechanical stage, ensures precise and stable operation for routine clinical and research fluorescence applications.
Download
Technical Parameters:
Model | BFM-13CYII |
Optical System | Infinity optical system |
Eyepiece | 10X/22mm |
View Head | Trinocular view head, inclined at 30°, interpupillary distance adjustment 48~75mm |
Objective | Infinity plan achromatic objective 4X; Infinity plan achromatic objective 10X; Infinity plan achromatic objective 40X; Infinity plan achromatic objective 100X |
Fluorescence Accessories | Standard: Blue (B) excitation: 460~490nm; Green (G) excitation: 510~560nm Optional: Ultraviolet (UV) excitation: 330~380nm; Blue-Ultraviolet (BU) excitation: U: 330~380nm, B: 460~490nm; Blue-Green-Ultraviolet (BGU) excitation: U: 330~380nm, B: 450~490nm, G: 510~560nm |
Focusing System | Coaxial focusing with coarse and fine movements, featuring locking and limiting devices; fine movement increments of 2μm; coarse movement stroke of 40mm per revolution; fine movement stroke of 0.2mm per revolution; focusing range of 30mm. |
Nosepiece | 4-position nosepiece, 5-position nosepiece(Optional) |
Stage | Double-layer movable platform. Platform dimensions: 160*140mm; Movement range: 75*50mm. |
Abbe Condenser N.A.1.25 | |
Illumination | |
Power Supply | |
Packing Size(W*D*H) | 465*450*600mm |
Gross Weight | 15.5kg |
