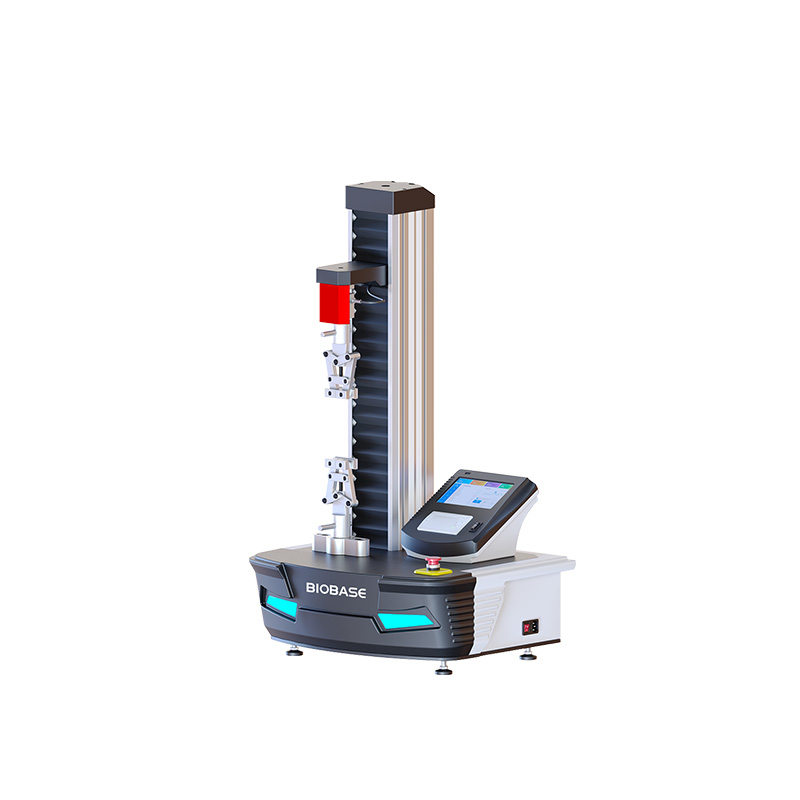

Electronic Universal Testing Machine BK-UTM5
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-UTM5
Introduction:
It is a precise equipment used for conducting mechanical performance testing
on various materials (such as metals, non-metals, composite materials, etc.). It can simulate various stress conditions including tension, compression, bending, shear, peeling, and tearing, and accurately measure key parameters such as force, displacement, deformation, stress, and strain during the material's stress process. It is widely applied in fields such as material research and development, quality inspection, industrial production, and scientific research experiments.
Download
Features:
1. Real-time curve display: The system offers two display methods for curves: a convenient small curve interface display in the main interface, and a "single graph" large curve interface display.
2. Real-time data display: The system can simultaneously display 4 types of data, namely force value, displacement, deformation, and speed.
3. Overload emergency shutdown device, up and down travel limit device, automatic breakpoint shutdown function.
4. Machine automation: The entire testing process, including measurement, display, and control, is automatically completed by the digital display system. The test results will be automatically archived upon completion.
Technical Parameters:
Model | BK-UTM5 | ||||||
Max Testing Force | 50N | 100N | 200N | 500N | 1000N | 2000N | 5000N |
Accuracy Level | Level 1 | ||||||
Type | Single-arm structure | ||||||
Limit of Allowable Error for Testing Force Indication | ≤±1% of Indication | ||||||
Force Measurement Range | 2%～100%FS | ||||||
Force Resolution | 1/250000 of the maximum test force | ||||||
Limit of Indication Error for Displacement | ≤±1% of Indication | ||||||
Minimum Displacement Resolution | 0.01mm | ||||||
Beam Speed Range | 0.01～500mm/min | ||||||
Relative Error of Beam Speed | ≤±1% | ||||||
Stretching Distance | 700mm | ||||||
Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) | ||||||
External Size(L*W*H) | 420*280*1150mm | ||||||
Net Weight | 120kg | ||||||
Packing Size(L*W*H) | 550*600*1600mm | ||||||
Gross Weight | 135kg | ||||||
