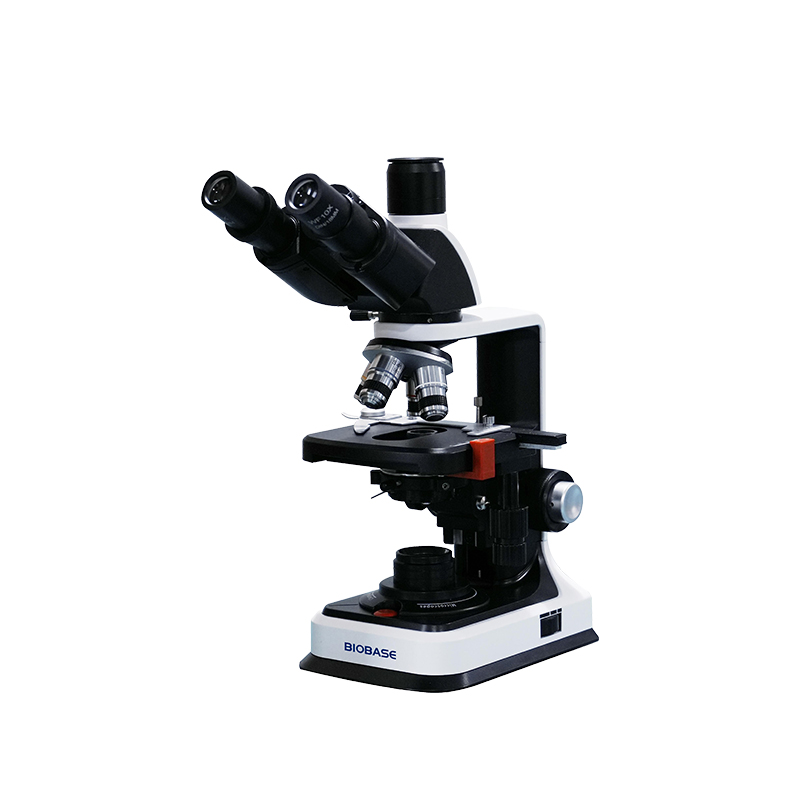

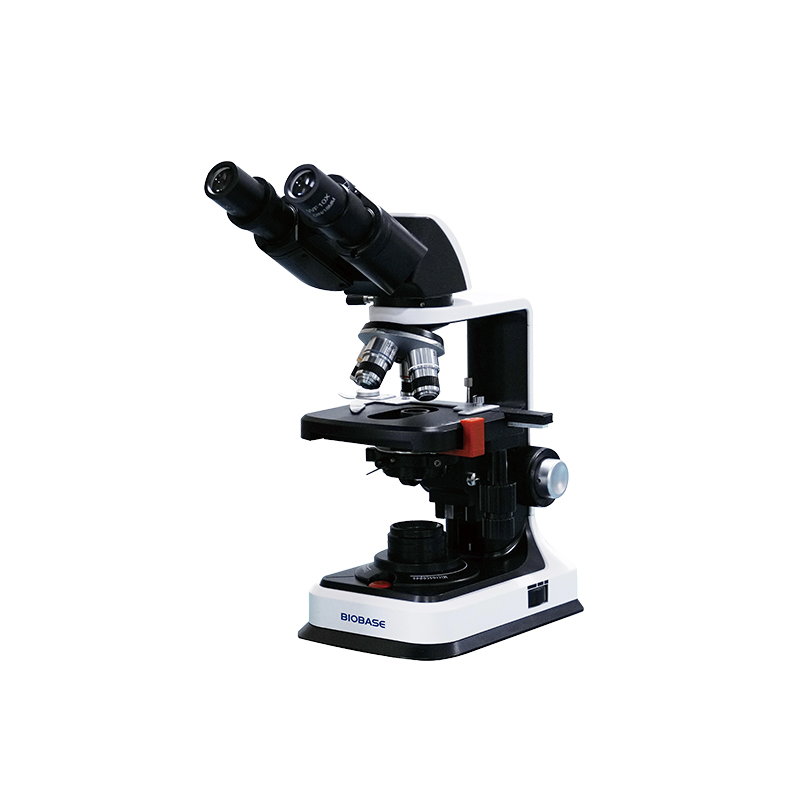

Economical Biological Microscope BME-500D BME-20E BME-30SM BME-500V
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BME-500D BME-20E BME-30SM BME-500V
Introduction:
Economical biological microscope designed for education and basic laboratory use. This affordable compound microscope offers clear imaging, making it ideal for students, teaching, and routine observation applications.
Download
Technical Parameters:
Model | BME-500D | BME-20E | BME-30SM | BME-500V | ||
Viewing Head | Monocular head inclined at 30°, 360° rotatable | Compensation free binocular head inclined at 30°, 360° rotatable | Compensation free trinocular head inclined at 30°, 360° rotatable | Dual viewing head, one tube 30°, inclined and another tube vertical, 360° rotatable | ||
Achromatic Objectives | 4X, 10X, 40X(Spring), 100X(Spring, Oil) | |||||
Eyepiece | WF10X(WF16X optional) | WF10X(WF25X optional) | WF10X(WF16X optional) | |||
Stage | Double layer mechanical stage size 115*125mm; 138*156mm can be optional for BME-20E/ BME-30SM | |||||
Focusing | Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm | Coaxial coarse and fine adjustment, focusing range 20mm, focusing interval 0.002mm | Coaxial coarse and fine adjustment, focusing range 30mm, focusing interval 0.002mm | |||
Condenser | Abbe NA=1.25 with Iris diaphragm &filter | |||||
Illumination | LED | |||||
Power Supply | AC110/220V±10%, 50/60Hz | AC110~220V, 50/60Hz | AC110/220V±10%, 50/60Hz | |||
Packing Size(W*D*H) | 450*360*240mm | 300*230*460mm | 450*360*240mm | |||
Gross Weight | 5kg | 4.65kg | 5kg | |||
Note: Trinocular microscope can be installed camera and screen.
