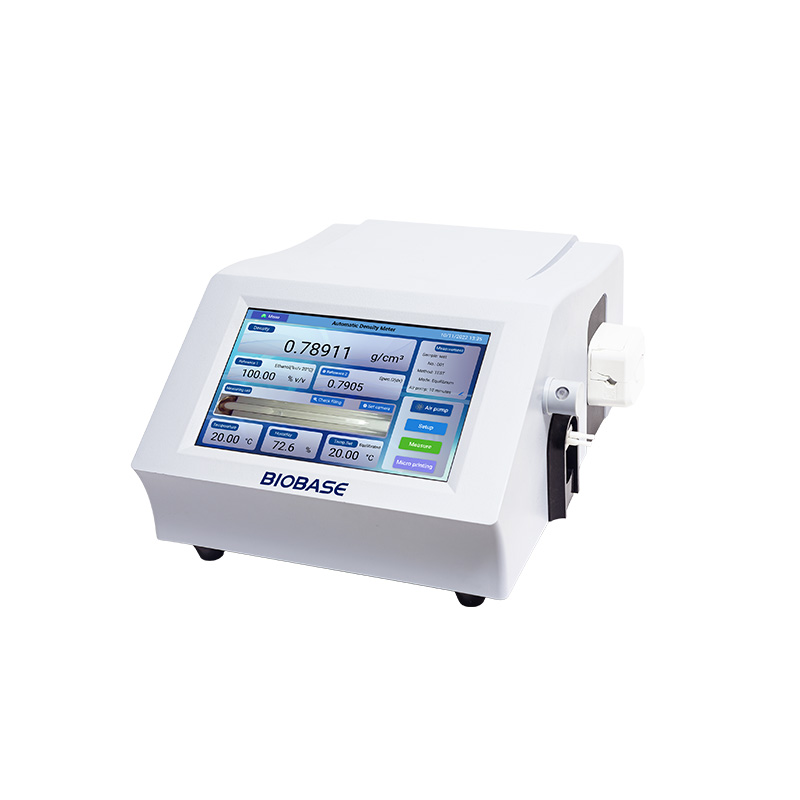

Density Meter
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-DM450A BK-DM430A BK-DM350A
Applications:
Beverage Industry: Measurement of sugar concentration, juice, herbal tea, food additives, and quality control of soft drinks.
Food Industry: Quality control in the processing of grape juice, tomato juice, fruit syrup, vegetable oil, and soft drinks.
Brewing & Liquor Industry: Determination of alcohol concentration in baijiu (Chinese liquor), yellow rice wine, red wine, beer, fruit wine, rice wine, etc.
Petrochemical Industry: Testing of crude oil API gravity, gasoline and diesel density, and monitoring of additive blending processes.
Chemical Industry: Testing of urea, detergents, ethylene glycol, acid, alkali, and ammonia concentrations in chemical products.
Pharmaceutical Industry: Quality control of raw materials and pharmaceutical intermediates; determination of specific gravity and density of drugs.
Flavors & Fragrances: Raw material testing for edible flavors, daily-use fragrances, tobacco flavors, and food additives.
Inspection & Testing Institutions: Density measurement of liquids in standard laboratories, statutory testing institutions, and third-party testing organizations.
Download
Features:
1. Built-in Measurement Units: all three models support density(g/cm³, kg/m³) and specific gravity at 4°C/20°C/25°C.
BK-DM430A: adds user-defined formulas.
BK-DM450A: integrates 30+ measurement methods(General, food, petrochemical, daily chemical, pharmaceutical, user-defined).
2. Measurement Modes: all models feature precision measurement / rapid preliminary inspection modes.
3. Software & Compliance Functions(BK-DM450A / BK-DM430A): equipped with user-defined methods, user hierarchical management(4-level authority), and audit trail(Optional with FDA software).
4. Sampling System: all models are fitted with HD cameras for video sampling observation. The sampling mode is automatic(Manual compatible) and supports various samplers.
Technical Parameters:
Model | BK-DM450A | BK-DM430A | BK-DM350A |
Measuring Range | 0.00000~3.00000g/cm³ | 0.0000~3.0000g/cm³ | |
Measuring Resolution | 0.00001g/cm³ | 0.0001 g/cm³ | |
Measuring Accuracy | ±0.0001g/cm³ | ±0.0003g/cm³ | ±0.0005g/cm³ |
Measuring Repeatability | ±0.00005g/cm³ | ±0.0001g/cm³ | ±0.0002g/cm³ |
Temp. Resolution | 0.01°C | ||
Temp. Control Range | 5~70°C | 5~50°C | |
Temp. Control Precision | ±0.02°C | ±0.05°C | |
Temp. Control Accuracy | ±0.05°C | ±0.1°C | |
Automatic Viscosity Compensation | Yes | / | |
Calibration Method | Dry air / Distilled water | ||
Data Storage | 128 G | ||
Sampling Observation | HD camera, video observation | ||
Sampling Mode | Automatic(Manual compatible), optional multiple samplers | ||
Display Mode | 10.1-inch color LCD touch screen, Android OS | ||
Communication Interface | RS232*1, RJ-45*1, USB*3 | RS232*1, USB*3 | |
Optional Accessories | Thermal printer RD-TH32-SC, dot matrix printer RD-TH24-SC, WIFI printer, Audit trail function (FDA software) | Dot matrix printer, thermal printer | |
Report Output | PDF / Excel | ||
Power Supply | AC 100~240V, 50/60Hz, 120W | ||
External Size (W*D*H) | 439*350*217mm | ||
Package Size (W*D*H) | 720*470*390mm | ||
Net Weight | 10kg | ||
Gross Weight | 23.5kg | ||
