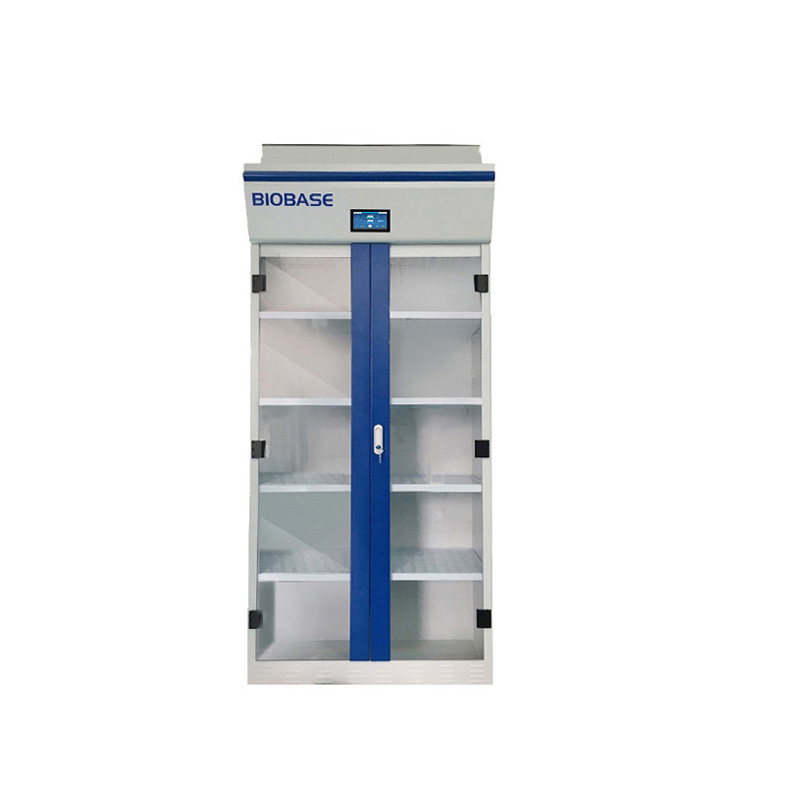

Clean Gas Type Medicine Storage Cabinet
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-C800
Introduction:
The Clean Gas Type Medicine Storage Cabinet is a ductless filtered storage cabinet designed for safe storage of medicines, chemicals, and volatile compounds in pharmacies and laboratories. It features a 7-inch LCD touch screen, real-time temperature and humidity monitoring with configurable alarms, and a double-filter system with dual VOC probes for filter saturation detection. The main structure uses cold-rolled steel with epoxy electrostatic spraying, while the main door is made of weather- and chemical-resistant acrylic. Additional safeguards include low wind speed monitoring, adjustable fan speed, and a door alarm system with both visual and audible alerts.
Download
Features:
1. 7 inches LCD touch screen display
2. Main material ≥1.2mm cold rolled steel plate, epoxy resin electrostatic spraying
3. Main door material ≥5mm acrylic plate, excellent weather and chemical resistance
4. Real-time temperature and humidity environment monitoring system, set alarm parameters, to ensure product safety.
5. Low wind speed monitoring: detect low wind speed alarm system, adjustable fan speed
6. Filter saturation alarm system: equipped with double filter and double VOC probes
7. Door alarm system: display screen alarm and buzzer alarm will appear when cabinet door is opened
Technical Parameters：
Model | BK-C800 |
External Size(mm) | 800*580*2150 |
Internal Size(mm) | 797*480*1750 |
Molecular Filter Size(mm) | 750*400*75 |
Primary Filter Size(mm) | 725*375*20 |
Air Volume(m³/h) | 200-230 |
Temperature &Humidity Alarm | 2 sets |
Power | 180W |
Storage Capacity | 160 bottles（500ml） |
Layer Qty | 8pcs |
Layer Burden | ＞70kg |
Noise | ≤63dB |
Power Supply | Standard: 220V/50Hz, optional: 110V, 60Hz (External transformer) |
Packing Size | 960*960*2200mm |
Gross Weight | 250kg |
