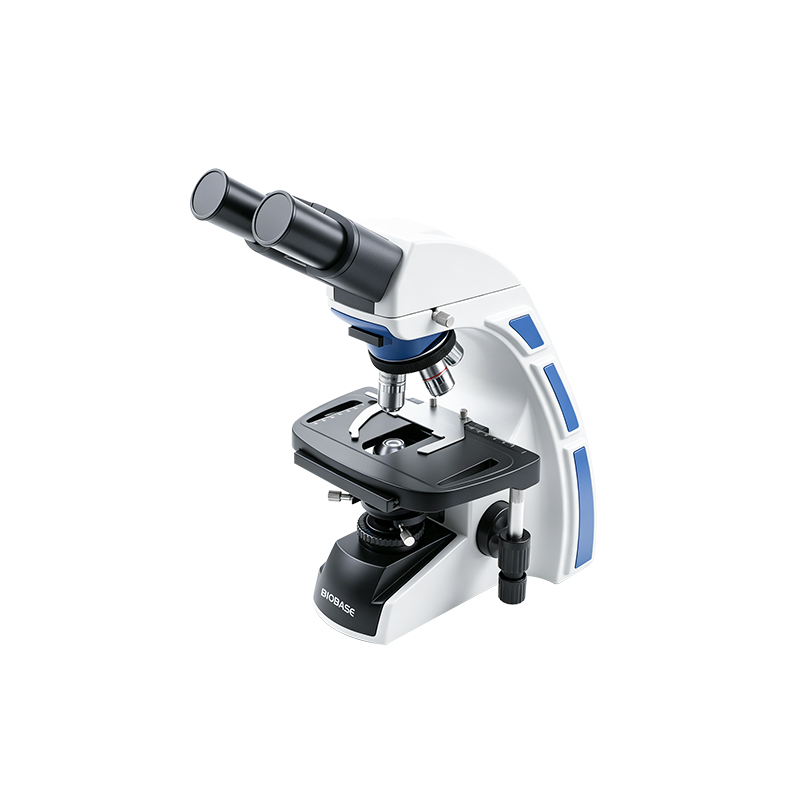

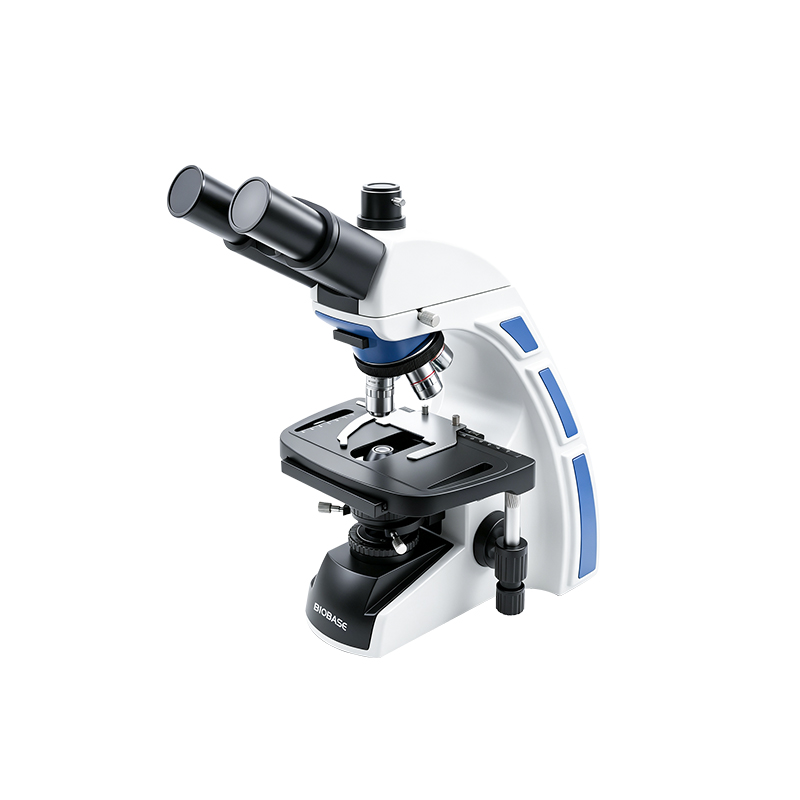

Biological Microscope BBM-7130B BBM-7130C
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BBM-7130B BBM-7130C
Introduction:
The Biological Microscope BBM-7130 Series is an infinite optical system microscope available with binocular or trinocular Seidentopf heads. It features PL10X/22mm eyepieces, infinite plan achromatic objectives from 4X to 100X oil, and a precise coaxial focusing system with 0.002mm fine adjustment. A large 220×148mm mechanical stage and 3W LED illumination provide stable, high-quality imaging for hospital diagnosis, teaching, and research applications.
Download
Technical Parameters:
Model | BBM-7130B | BBM-7130C |
Optical System | Infinite optical system | |
View Head | Seidentopf binocular head, inclined at 30°, 360° rotatable, interpupillary 48~75mm | Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary 48~75mm |
Eyepiece | PL10X/22mm | |
Infinite Plan Achromatic Objective | 4X, 10X, 40X(Spring), 100X(Spring, oil) | |
Nosepiece | Inward quadruple nosepiece | |
Focusing | Double-sided coaxial coarse and fine adjustment, cross roller guide mechanism; coarse adjustment range: 25mm; fine adjustment increment: 0.002mm | |
Stage | Mechanical stage 220*148mm, moving range 75*50mm | |
Condenser | Abbe-type NA=1.25, φ2~30mm variable aperture | |
Illumination | 3W LED light, adjustable brightness | |
Filter | Blue | |
Power Supply | AC100~240V, 50/60Hz | |
Packing Size(W*D*H) | 360*310*470mm | |
Gross Weight | 8kg | |
