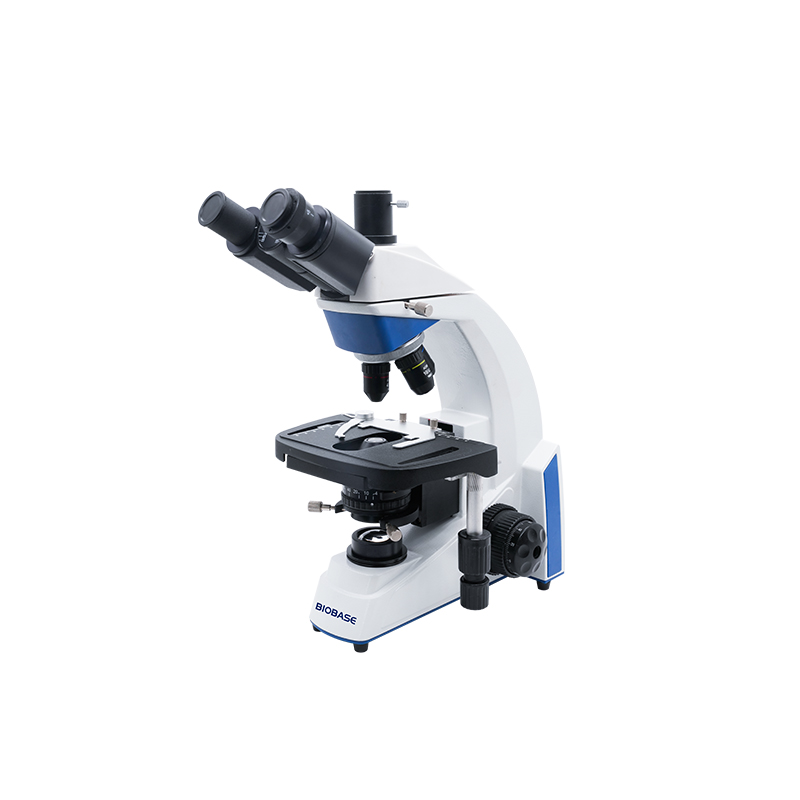

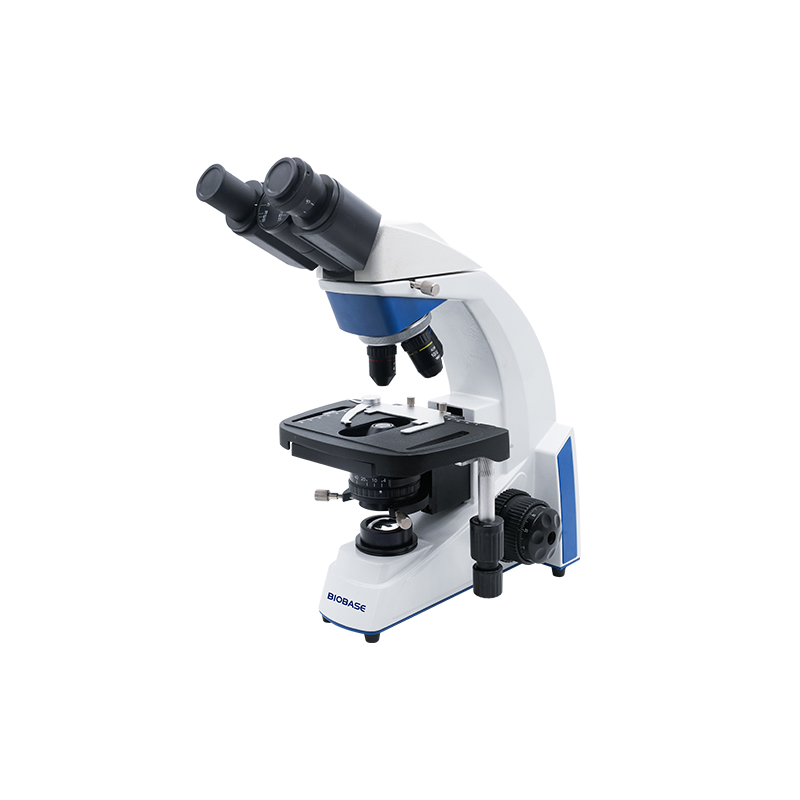

Biological Microscope BBM-3310B BBM-3310C
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BBM-3310B BBM-3310C
Introduction:
The Biological Microscope BBM-3310 Series is a finite optical system microscope available with binocular or trinocular Seidentopf heads, both inclined at 30° and 360° rotatable. It features achromatic objectives from 4X to 100X oil, a precise coaxial focusing system with 0.002mm fine adjustment, and a large 188×120mm mechanical stage with extended movement range. Energy-efficient LED illumination and an Abbe condenser ensure clear, stable imaging for routine laboratory and teaching applications.
Download
Technical Parameters:
Model | BBM-3310B | BBM-3310C |
Optical System | Finite optical system | |
View Head | Seidentopf binocular head, inclined at 30°, 360° rotatable, interpupillary 55~75mm | Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary 55~75mm |
Eyepiece | WF10X/18mm | |
Achromatic Objective | 4X, 10X, 40X(Spring), 100X(Spring, oil) | |
Nosepiece | Inward quadruple nosepiece | |
Focusing | Double-sided coaxial coarse and fine adjustment, cross roller guide mechanism; coarse adjustment range: 20mm; fine adjustment increment: 0.002mm | |
Stage | Mechanical stage 188*120mm, moving range 50*70mm | |
Condenser | Abbe-type NA=1.25, with variable aperture diaphragm and filter holder | |
Illumination | 1W LED light, adjustable brightness | |
Filter | Blue | |
Power Supply | AC100~240V, 50/60Hz | |
Packing Size(W*D*H) | 380*250*490mm | |
Gross Weight | 5.5kg | |
