Biological Microscope BBM-3210A BBM-3210B BBM-3210C BBM-3210E BBM-3210F
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BBM-3210A BBM-3210B BBM-3210C BBM-3210E BBM-3210F
Introduction:
The Biological Microscope BBM-3210 Series is a finite optical system microscope with multiple viewing head options, including monocular, binocular, trinocular, and teaching configurations. It features WF10X and WF16X eyepieces, achromatic objectives from 4X to 100X oil, a precise 0.002mm fine adjustment focusing system, and energy-efficient LED illumination, making it suitable for routine laboratory and teaching applications.
Download
Technical Parameters:
Model | BBM-3210A | BBM-3210B | BBM-3210C | BBM-3210E | BBM-3210F |
Optical System | Finite optical system | ||||

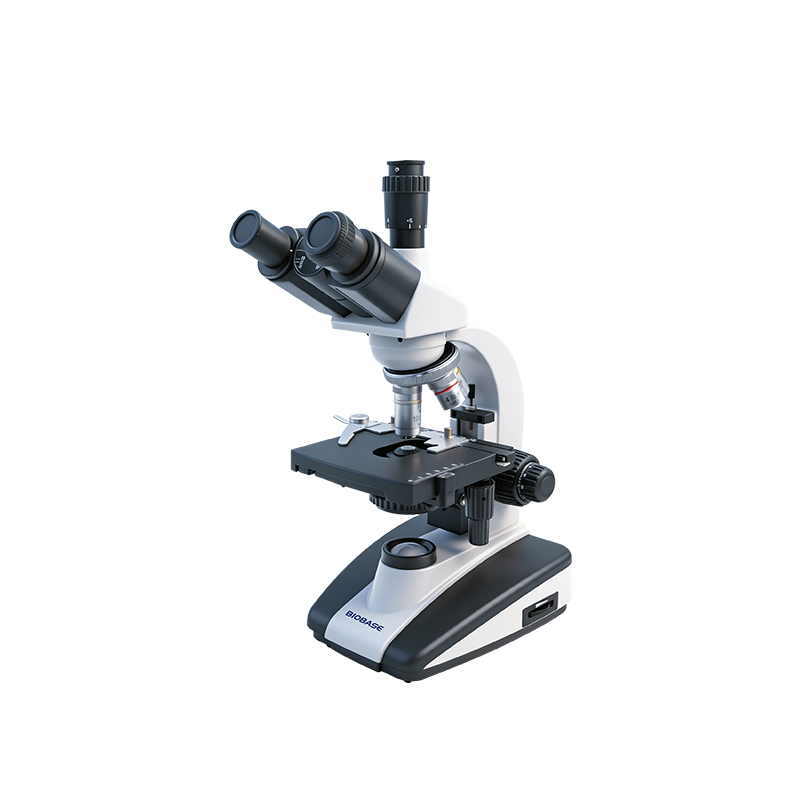

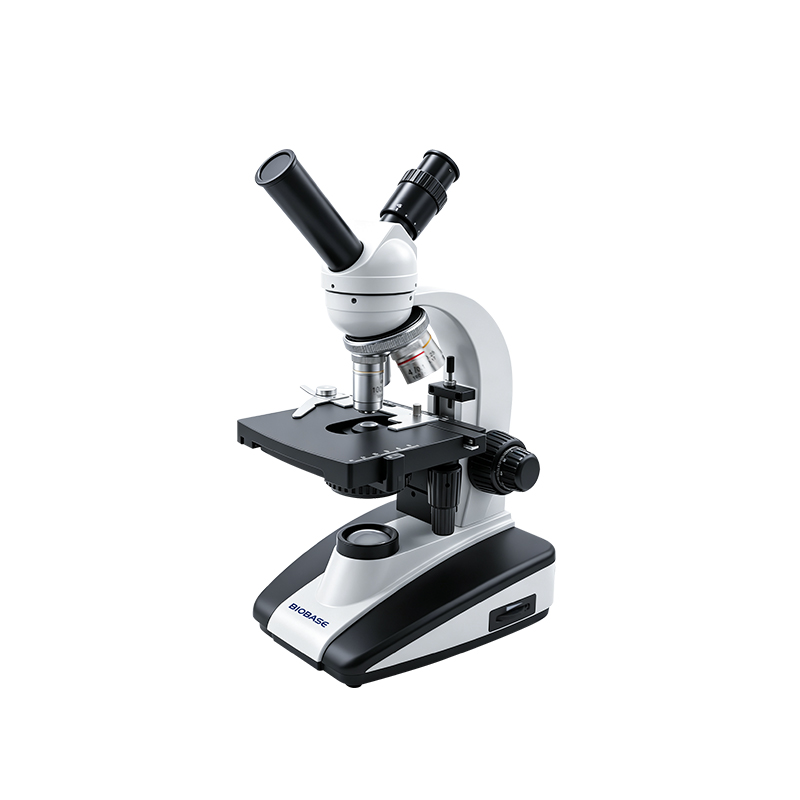

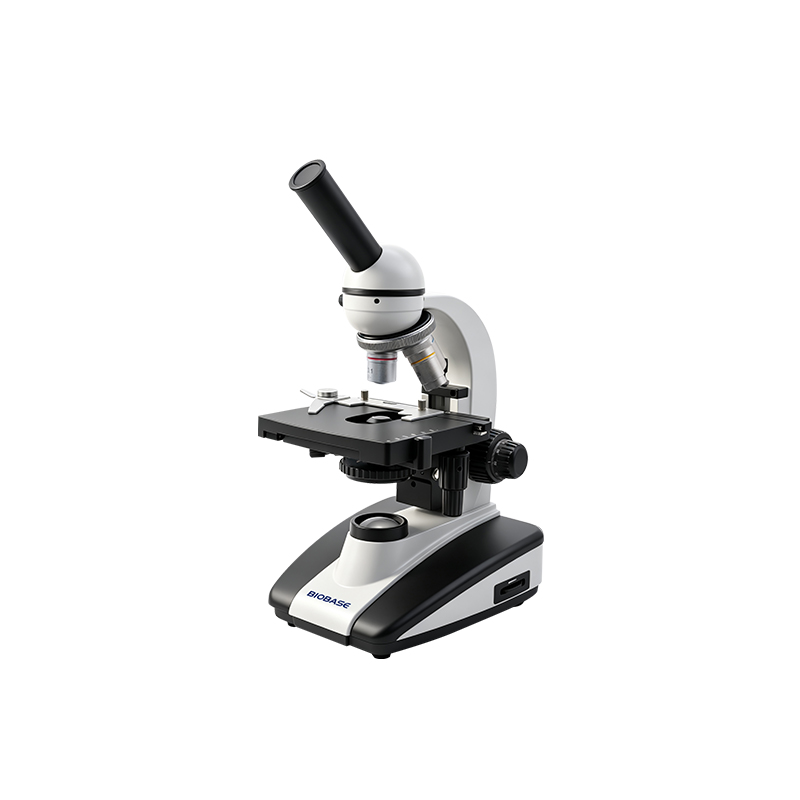

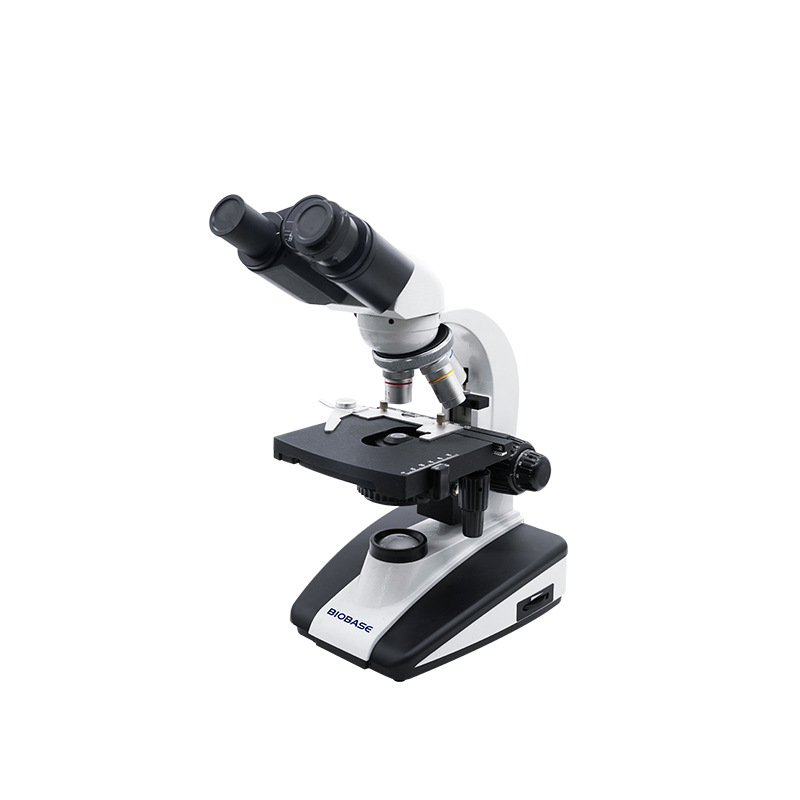

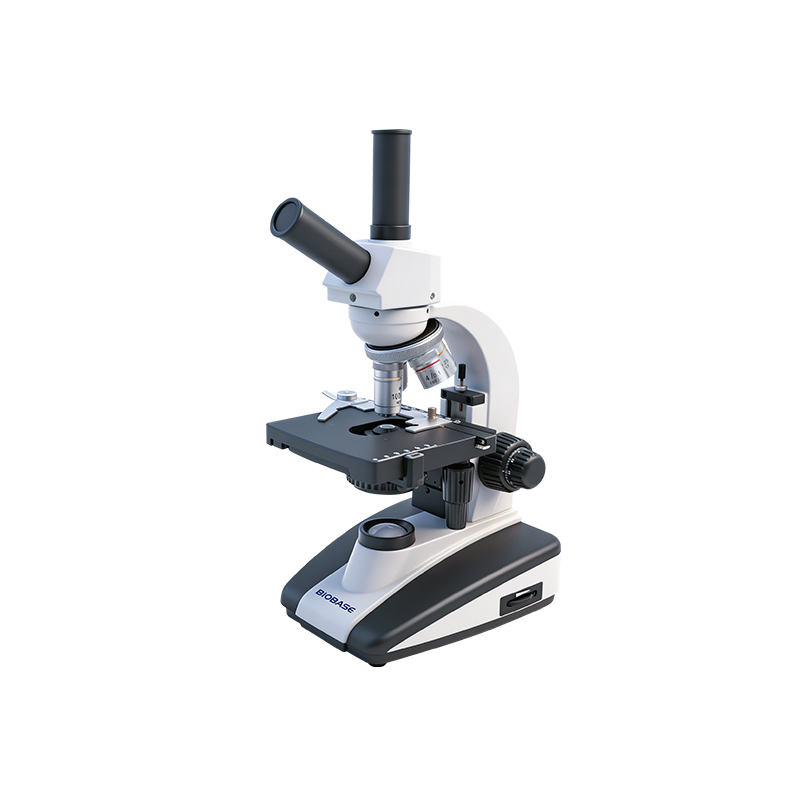

View Head | Monocular head, inclined at 30°, 360° rotatable | Seidentopf binocular head, inclined at 30°, 360° rotatable, interpupillary 55~75mm | Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary 55~75mm | V type teaching head, inclined at 45°, 360° rotatable | S type teaching head, inclined at 45°, 360° rotatable |
Eyepiece | WF10X/18mm, WF16X/11mm | ||||
Achromatic Objective | 4X, 10X, 40X(Spring), 100X(Spring, oil) | ||||
Nosepiece | Inward quadruple nosepiece | ||||
Focusing | Double-sided coaxial coarse and fine adjustment, cross roller guide mechanism; coarse adjustment range: 16mm; fine adjustment increment: 0.002mm | ||||
Stage | Mechanical stage 130*130mm, moving range 60*30mm | ||||
Condenser | Abbe-type NA=1.25, φ2~30mm variable aperture | ||||
Illumination | 1W LED light, adjustable brightness | ||||
Filter | Blue | ||||
Power Supply | AC100~240V, 50/60Hz | ||||
Packing Size(W*D*H) | 330*220*470mm | ||||
Gross Weight | 6kg | ||||
