Biological Microscope
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BBM-3110A BBM-3110B BBM-3110C BBM-3110D BBM-3110E BBM-3110F
Introduction:
The Biological Microscope BBM-3110 Series is a versatile finite optical system microscope available with multiple viewing head options, including monocular, binocular, trinocular, built-in camera, and teaching configurations. It features achromatic objectives from 4X to 100X oil, a mechanical stage, Abbe condenser with NA 1.25, and energy-efficient 1W LED illumination, making it suitable for routine clinical, educational, and laboratory use.
Download
Technical Parameters:
Model | BBM-3110A | BBM-3110B | BBM-3110C | BBM-3110D | BBM-3110E | BBM-3110F |
Optical System | Finite optical system | |||||

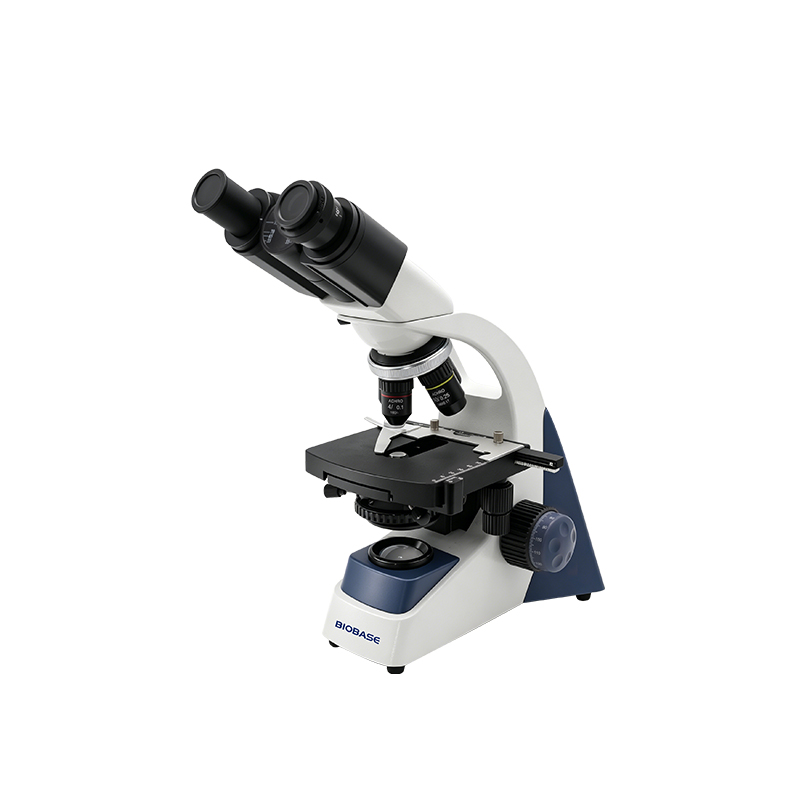

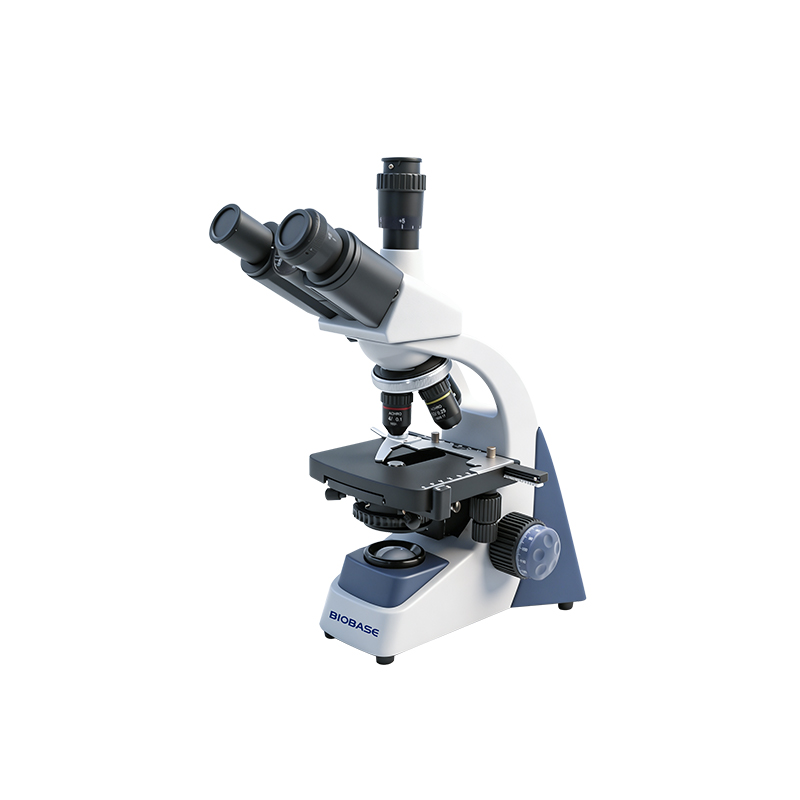

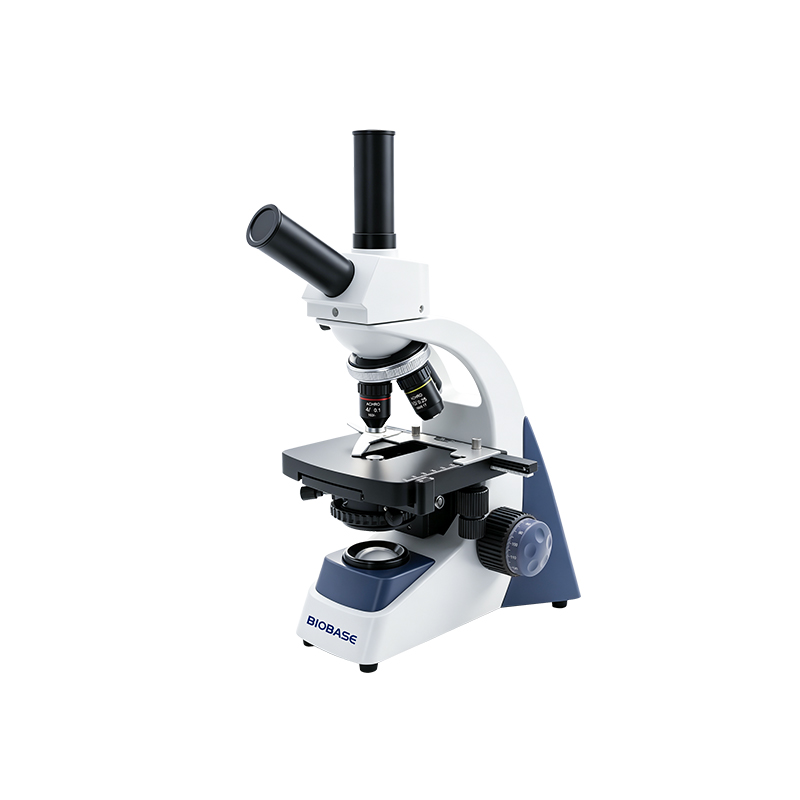

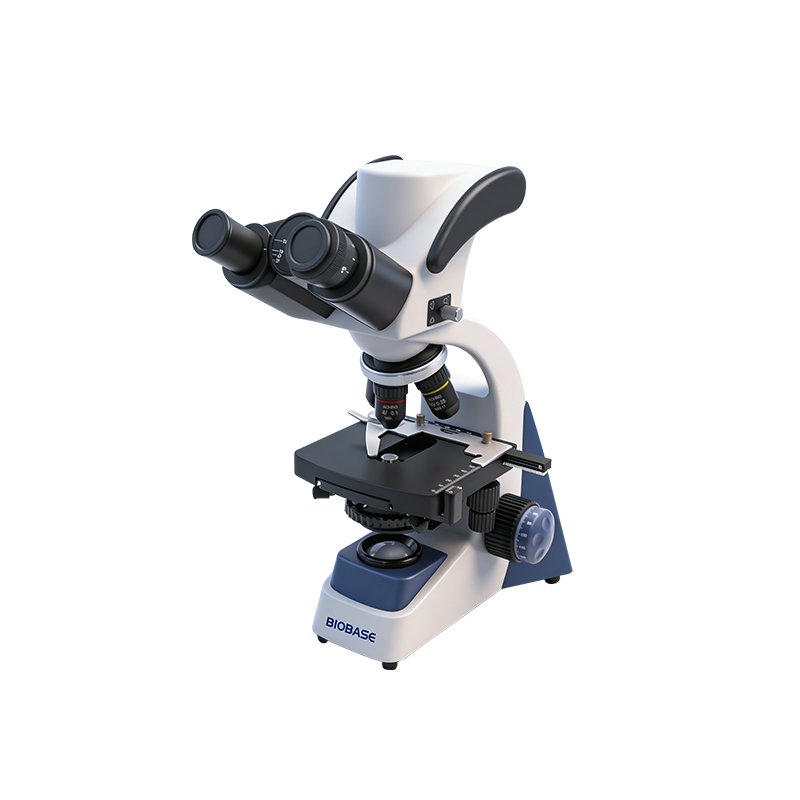

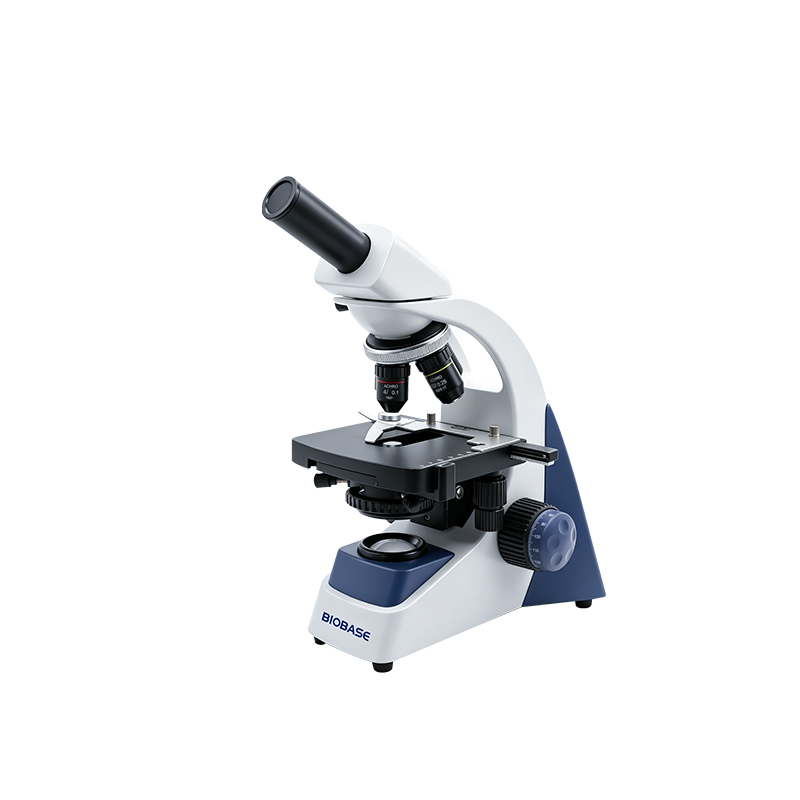

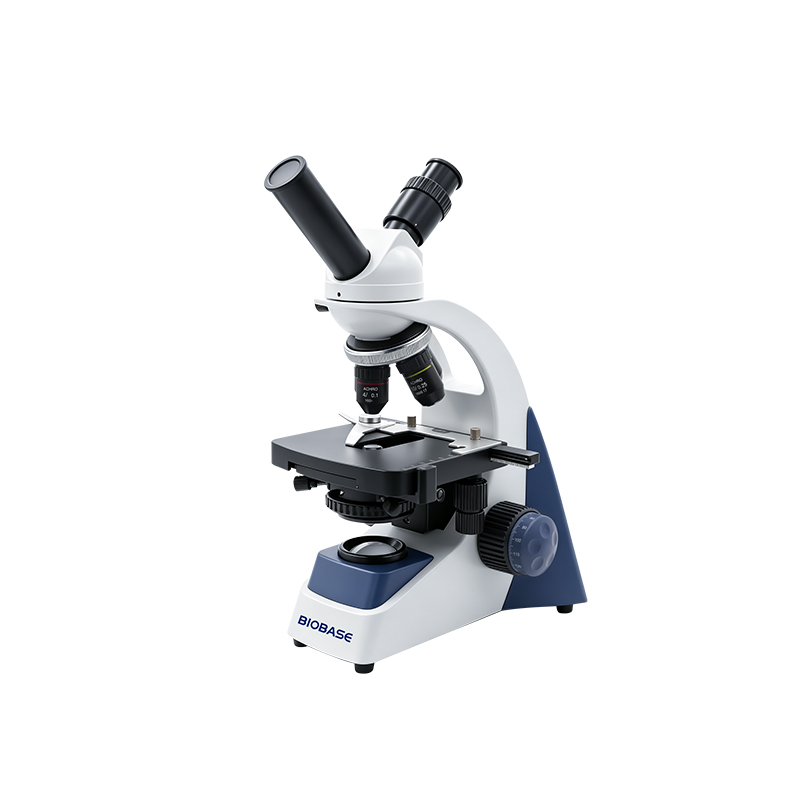

View Head | Monocular head, inclined at 30°, 360° rotatable | Seidentopf binocular head, inclined at 30°, 360° rotatable, interpupillary 55~75mm | Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary 55~75mm | Built-in camera, 3M CMOS, inclined at 30°, 360° rotatable, interpupillary 55~75mm | V type teaching head, inclined at 45°, 360° rotatable | S type teaching head, inclined at 45°, 360° rotatable |
Eyepiece | WF10X/18mm | |||||
Achromatic Objective | 4X, 10X, 40X(Spring), 100X(Spring, oil) | |||||
Nosepiece | Inward quadruple nosepiece | |||||
Focusing | Double-sided coaxial coarse and fine adjustment, cross roller guide mechanism; coarse adjustment range: 17mm; fine adjustment increment: 0.01mm | |||||
Stage | Mechanical stage 125*125mm, moving range 60*40mm | |||||
Condenser | Abbe-type NA=1.25, with variable aperture diaphragm and filter holder | |||||
Illumination | 1W LED light, adjustable brightness | |||||
Filter | Blue | |||||
Power Supply | AC100~240V, 50/60Hz | |||||
Packing Size(W*D*H) | 370*230*470mm | |||||
Gross Weight | 5kg | |||||
