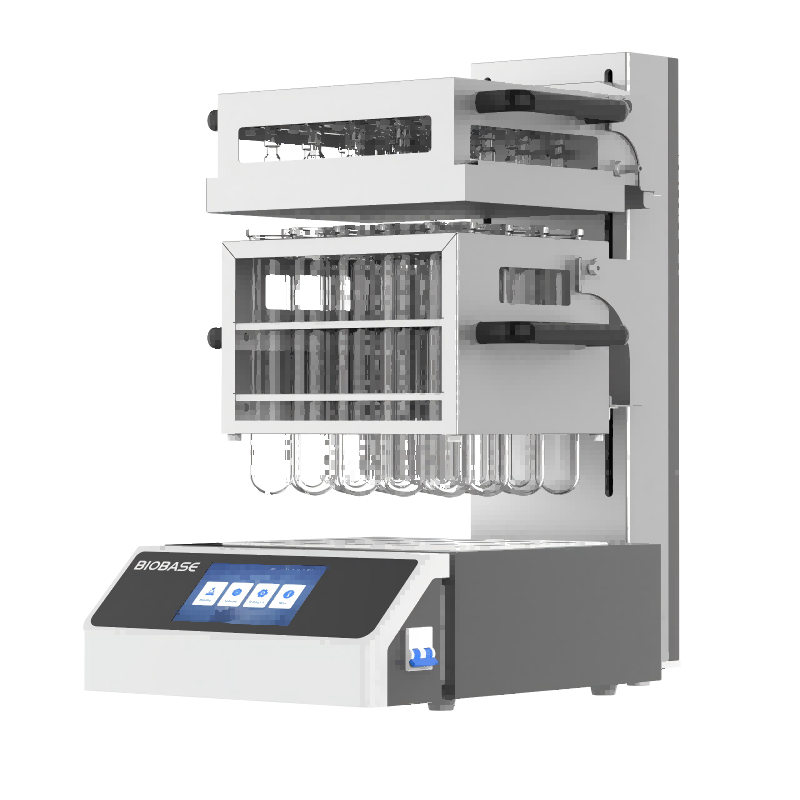

Automatic Digestor
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model GDA-20S
Introduction:
The GDA-20S is a sample pretreatment equipment with precise temperature control, uniform heating, and strong corrosion resistance. Its core function is to convert test samples into clear, homogeneous liquid samples via a programmed high-power electric heating system and digestion system, laying the foundation for subsequent detection. With a built-in automatic lifting system, it achieves full automation of the digestion process, boasting high efficiency, energy saving, and large processing capacity.
Download
Features:
1. Digestion tubes & waste discharge pipes: Explosion-proof safety glass (explosion-proof and high-temperature resistant);
2. Aluminum deep-hole heating modules: High heating efficiency, fast warming, long service life, and eco-friendly;
3. Standard lifting device: One-key operation, automatic lifting during the whole experiment, no personnel on duty needed (energy-saving & efficient);
4. High-power electric heating tubes: Fast heating rate to reduce experimental time;
5. Excellent heat preservation: Lowers energy consumption while ensuring temperature stability and operational safety;
6. Digestion rack & waste hood: 304 stainless steel (strong corrosion resistance);
7. PTFE (polytetrafluoroethylene) digestion tube caps: High-temperature and acid-resistant, reducing acid gas leakage and environmental pollution;
8. Aluminum parts: Anodized surface treatment for enhanced corrosion resistance.
Technical Parameters:
Model | GDA-20S |
Temp. Range | RT+5~450℃ |
Temp. Accuracy | ±1℃ |
Capacity | 20pcs |
Digestive Tube | Glass tube 300ml*20 |
Heating Mode | 6061 aluminum alloy |
Heating Rate | 8~15℃/min |
Heating Method | Electric heating tube |
Display | 7-inch high resolution color LCD screen |
Consumption | 2.7kW |
Power Supply | Standard: AC220V±10%, 50/60Hz Optional: AC110V±10%, 50/60Hz |
External Size(W*D*H) | 435*640*750mm |
Package Size(W*D*H) | 560*820*980mm |
Net Weight | 60kg |
Gross Weight | 85kg |
