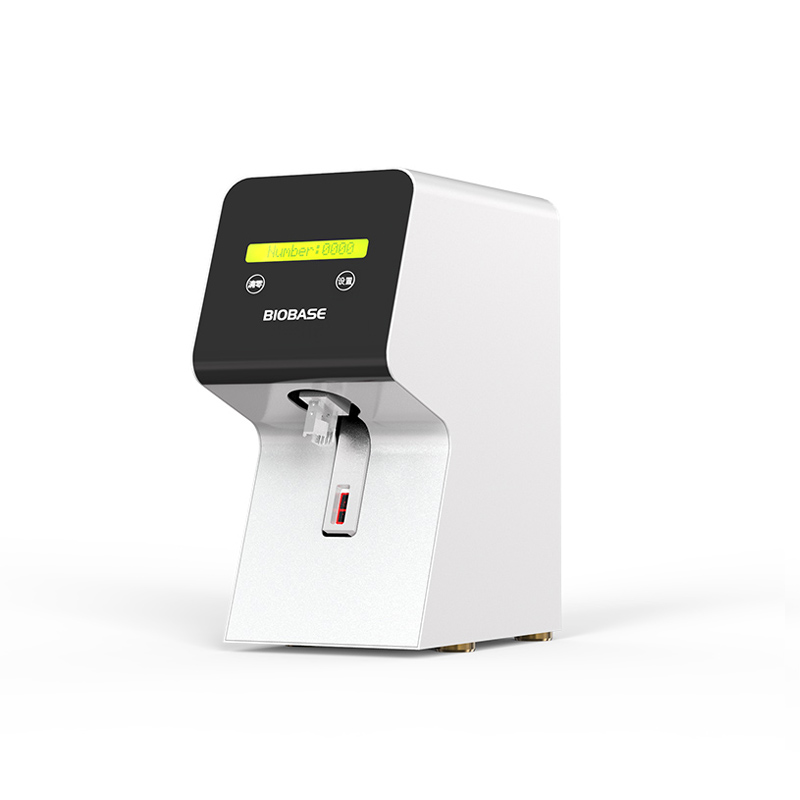

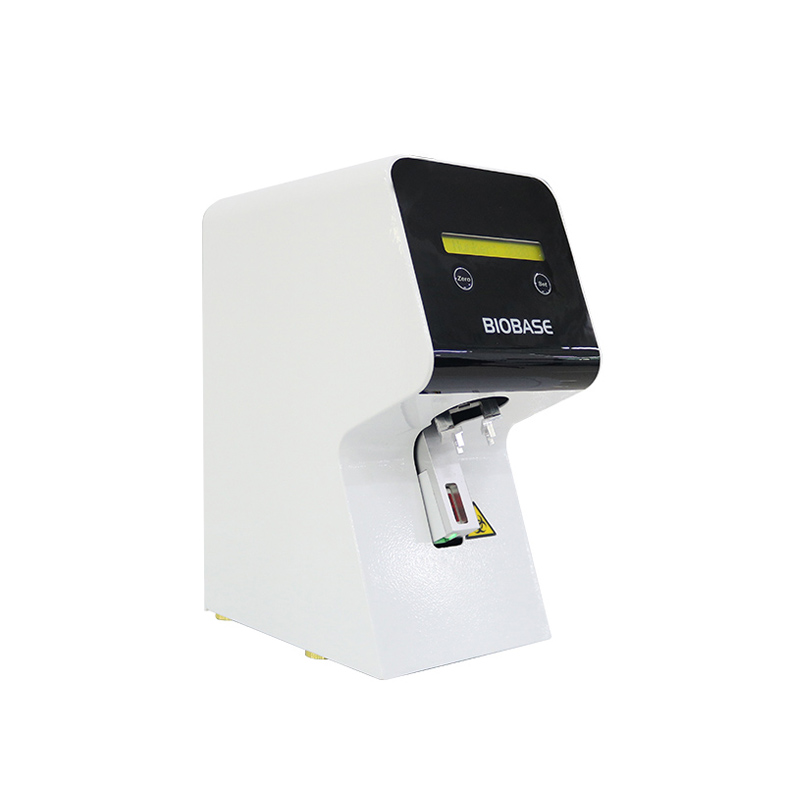

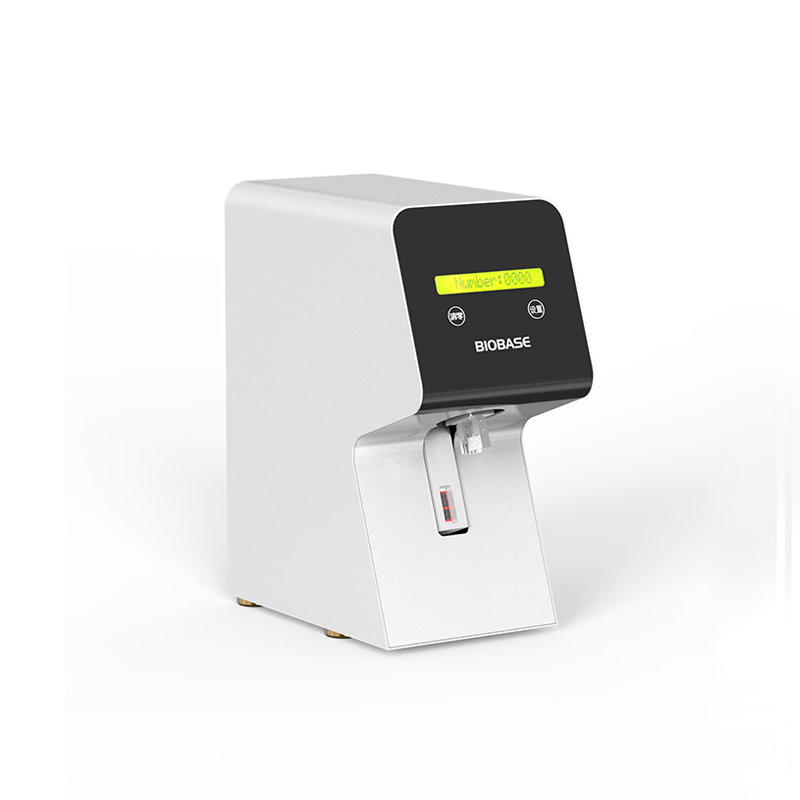

Automatic Capping Machine
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-AC10
Introduction:
BK-AC10 is an automatic and intelligent device that can open and close sample collection tubes of various specifications. The device is small and flexible. It can be placed in a safety cabinet and can be used by laboratory personnel with one hand. The sample is opened and closed, freeing the right hand of laboratory personnel, improving work efficiency, and reducing experimental fatigue and strength.
Download
Application:
Laboratory departments, clinical departments, emergency departments, fever departments, primary health institutions, third-party medical testing laboratories, disease control centers, testing stations, etc.
Features:
1. Safety: It can be placed in a safety cabinet to effectively avoid experimental pollution.
2. Efficient: complete the operation with one hand, it takes about 1. 8 second to open or close the lid.
3. Smart: Diffuse reflection automatically sensing lid opening without button operation
4. Strong compatibility: suitable tube cover diameter 19. 5-29. 5mm (can be customized according to the tube cap, can adapt to most sampling tubes in the market.
5. Work quantity display: display the work quantity on the display
Technical Parameter：
Model | BK-AC10 |
Channel | Single |
Open Type | Screw capping |
Speed | <1.8s |
Display | LCD1601 |
Sensing Method | Diffuse reflection |
External Size(W*D*H) | 164*295*363mm |
Net Weight | 7.8kg |
Standard Accessory | Gripper B, Diffuse reflection sensor |
Optional Accessory | Foot switch, Gripper A/C/ D |
Other Function | With counting function |
Power Supply | AC100-240V,50/60Hz ,40VA |
Package Size(W*D*H) | 320*280*365mm |
Gross Weight | 12.05kg |
Gripper Parameter:
Gripper Number | Gripper A | Gripper B | Gripper C | Gripper D |
Running Distance | 0~6mm | |||
Cap compatibility | 13~18mm | 19.5~24mm | 24.5~29.5mm | 31~36mm |
