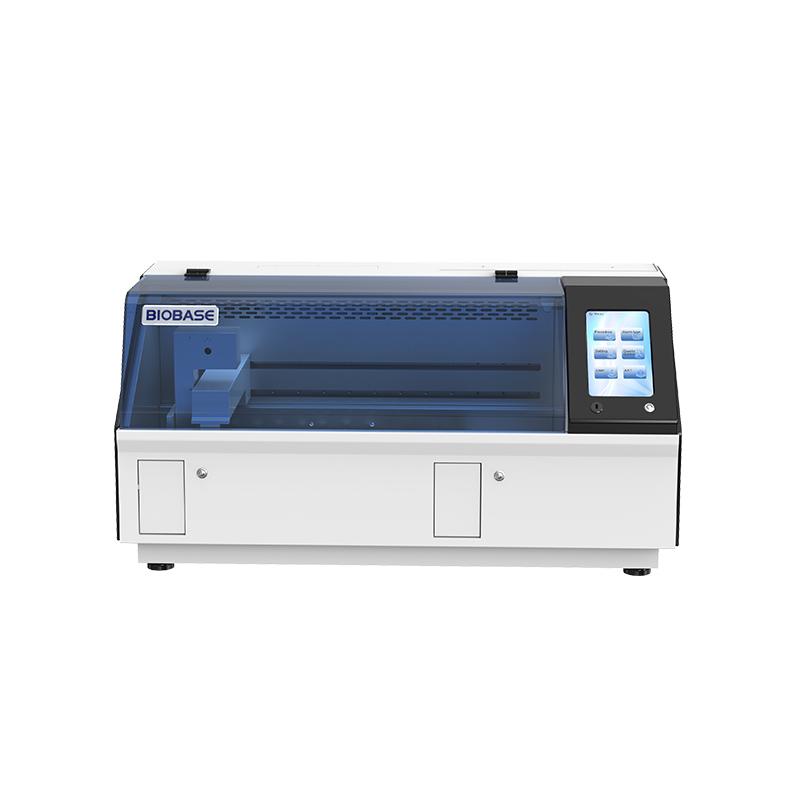

Automated Tissue Stainer
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-RS3
Introduction:
BK-RS3 automatic tissue stainer, composed of a sample transfer system and a staining system, automates sample processing. Samples on glass slides are sequentially processed in designated tanks, achieving automatic washing, staining, and drying, with real-time operational data display for timely operator control. It’s widely used in histology, pathology, and biology for automatic staining of paraffin and frozen sections on glass slides.
Download
Features:
1. With a high-definition color LCD touch screen that switches between Chinese and English interfaces easily.
2. Equipped with stain quality control and an AAT function to adjust staining time based on usage, ensuring consistent results.
3. Offers audio-visual alerts and automatic screen/LED light control.
4. Supports multiple staining methods (e. g. , HE, Pap), programs, and an open reagent system.
5. USB Port: Enables easy file upgrades and data export.
6. Program-controlled to prevent specimen damage, with infrared detection for operation guidance.
7. Automatically adjusts water supply during operation, with a rear water pressure valve for cleaning needs.
8. Fully automated from sample transfer to staining and washing, enhancing work efficiency.
9. Processes up to 600 slides/hour, with a 30-rack capacity and support for 15 concurrent programs.
10. Hydrophobic racks reduce reagent carry-over and cross-contamination, with a tank shaking function to minimize residue.
11. Monitors exhaust and includes activated carbon filtration to reduce air pollution.
Technical Parameters:
Model | BK-RS3 |
Cup Number | 26 |
Reagent Stations | 19 |
Washing Stations | 4 |
Oven Chamber | 1 |
Single Cup Capacity | 380ml |
Singel Cup Processing Time | 0~59min59s |
Oven Temperature Range | RT~70℃ |
Loading Capacity | Up to 15 staining racks |
Slides per Rack | 30 |
Loading/Unloading Stations | 1/1 |
Programs Storage | 15 |
Noise | ≤60dB (A) |
Consumption | 400VA |
Power Supply | AC220V,50/60Hz(Standard); AC110V, 60Hz(Optional) |
External Size(W*D*H) mm | 1200*640*600 |
Package Size(W*D*H) mm | 1350*780*800 |
Net Weight(kg) | 130 |
Gross Weight(kg) | 180 |
