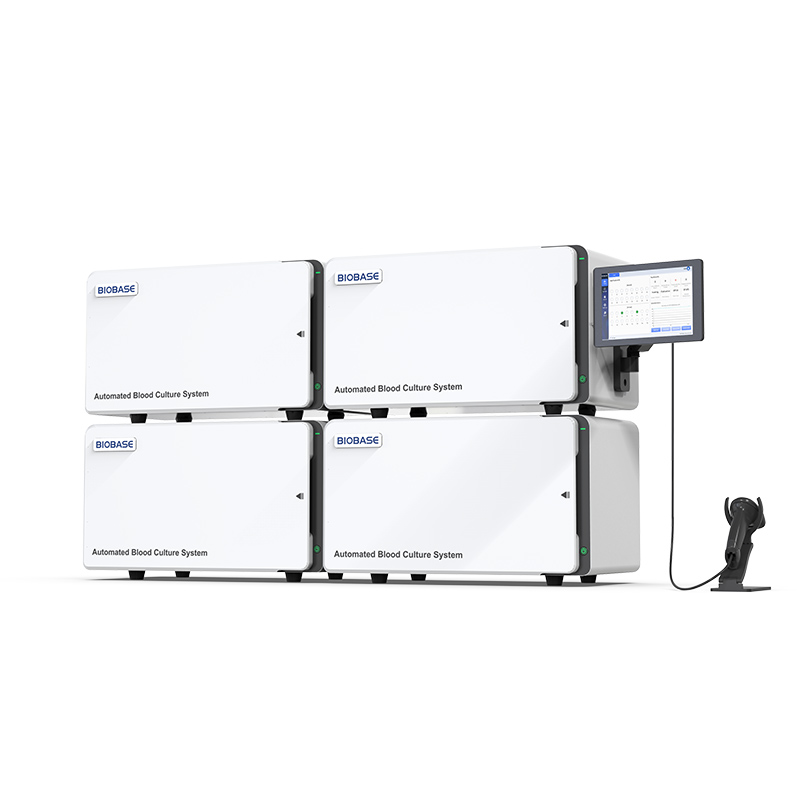

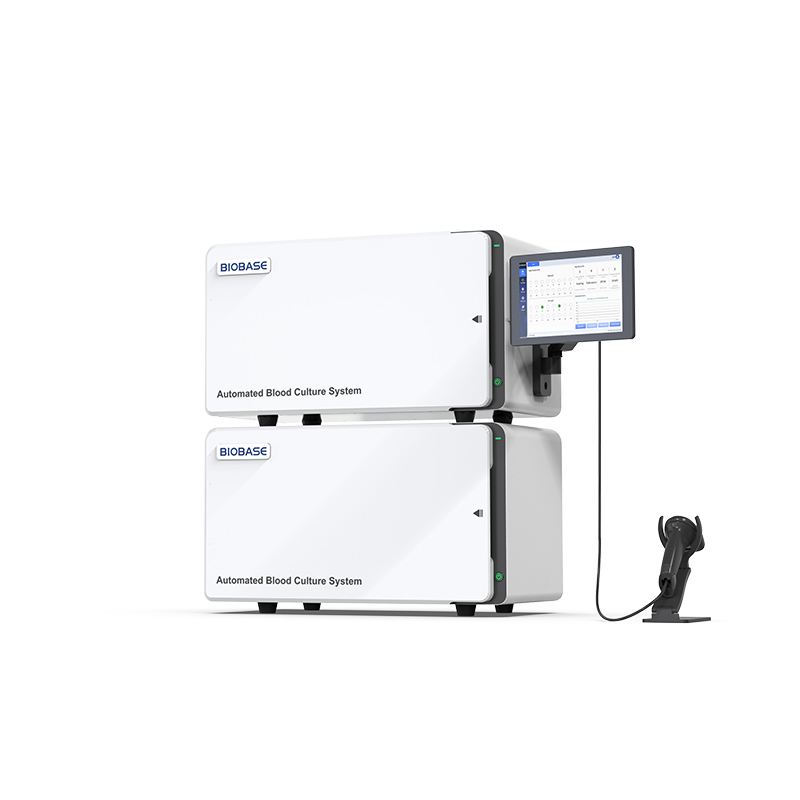

Automated Blood Culture System
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BK-BC32 BK-BC64 BK-BC128
Introduction:
Automated Blood Culture System comprises a constant temperature system, oscillating mixing system, detection system, computational control system, and power supply system.Adopting continuous monitoring technology, it enables rapid detection of pathogenic microorganisms in blood and sterile body fluid specimens. It meets the diagnostic needs for bloodstream infections and provides a scientific basis for antibiotic therapy.
Download
Features:
Easier Operation
"Scan & Load" one-step bottle placement (any slot, random positioning)
Blind retrieval (batch consecutive retrieval of same-result specimens)
10.1-inch touchscreen with graphical interface
Dual barcode support & LIS integration
Color-coded/blinking indicators for loading/unloading
Smarter Detection
Blood/sterile body fluid cultivation & detection
Independent slots for synchronous bottle identification
High-precision temperature control (uniform internal temperature)
Modular design, multi-unit cascading support
More Accurate Reporting
Continuous monitoring for timely results
Innovative algorithms for fast, precise positivity reporting
Technical Parameters:
Model | BK-BC32 | BK-BC64 | BK-BC128 |
Method | Color method | ||
Specimen | Blood or various sterile body fluid specimens | ||
Capacity | 32 | 64 | 128 |
Temperature Control System | Circulating air bath, users can set the culture temperature flexibly | ||
Independent Culture Cycle | Each culture bottle can set independently of different culture cycles flexibly | ||
Agitation Function | Rocker-type mixing, continuous oscillation | ||
Detection | Multi-channel synchronous detection & upload, 24h real-time monitoring (10-min intervals), the detection cycle can be set according to the user's needs. | ||
Antibiotic Adsorption | Special resin adsorption (no interference with gram stain smears) | ||
Culture Bottles | Adult aerobic/anaerobic bottles; Antibiotic-neutralizing bottles; Pediatric aerobic bottles; L-form bacteria bottles | ||
Bottle Reinsertion | >48h delay tolerance; retest support for false-positive bottles | ||
Bottle Material | Multi-layer polymer fiber (crimp-sealed design: shatterproof, contamination-proof) | ||
Software Functions | Incubation time graphing; statistical analysis; growth curves; blind retrieval; HIS/LIS integration | ||
Alarm | 3-level (audio/visual/color) alerts | ||
Power Supply | AC110/220V, 50/60Hz | ||
External Size(W*D*H) | 720*330*350mm | 720*330*700mm | 1400*330*700mm |
Net Weight | 33kg | 66kg | 130kg |
Package Size(W*D*H) | 800*500*590mm | 800*900*590mm | 800*900*590mm*2 |
Gross Weight | 50kg | 85kg | 85kg*2 |
