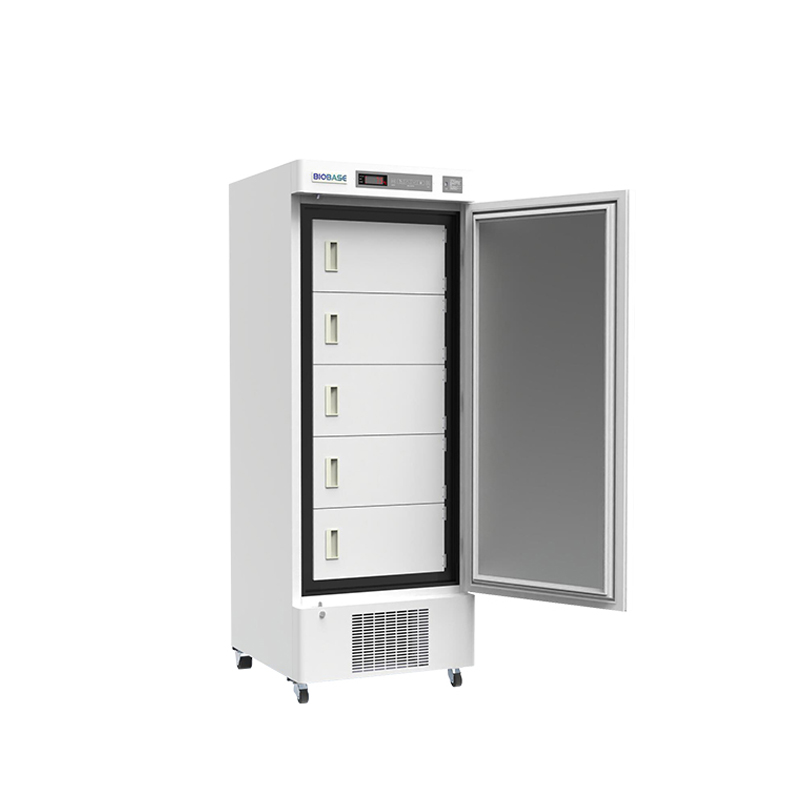

-40℃ Freezer BDF-40V58 BDF-40V90 BDF-40V268
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model BDF-40V58 BDF-40V90 BDF-40V268
Introduction:
-40℃ Low Temperature Freezer Two rooms design is suitable for storing multi kinds of samples that need different temperature, or some samples that need separate storage. This type of freezers has independent temperature control to help you save both room and power. BIOBASE always try to supply environment friendly products and economical& practical technologies to customers.
Download
Technical Parameters:
Model | BDF-40V58 | BDF-40V90 | BDF-40V208 | BDF-40V268 | ||
Capacity | 58L | 90L | 208L | 268L | ||
Temp. Range | -15~-40℃ | |||||
Temp. Accuracy | 0.1℃ | |||||
Temp. Uniformity | ≤4℃ | |||||
Temp. Stability | ≤4℃ | |||||
Recovery Time(Recover to -37℃ in an ambient temp. of 25℃) | 40min | ≤15min | ≤30min | |||
Cooling Time(Cool down to -40℃ in an ambient temp. of 25℃) | 50min | ≤1.5h | ≤4h | |||
Control System | Microprocessor control | |||||
Display | LED | |||||
Alarm | High and low temperature alarm, thermostat fault alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(8h) | ||||
Refrigeration Type | Direct-cooling | |||||
Refrigerant | R404A/R23/150g | R290/43g | R290/75g | R290/75g | ||
Compressor | International famous brand compressor/1 | |||||
Condenser&Evaporator | Finned copper tube condenser; built-in coil type copper tube evaporator | Wire-on-tube Bundy tube condenser; built-in coil type copper tube evaporator | ||||
Defrost | Manual defrost | |||||
Construction | Polyurethane cyclopentane foam | |||||
Material | Internal Material | 304 stainless steel | ||||
External Material | Sprayed steel plate | |||||
Door | Outer door: sprayed steel plate outer door*1 Interior door: 304 stainless steel door*1 | Outer door: sprayed steel plate outer door*1 Interior door: cold plate spray door*3 | Outer door: sprayed steel plate outer door*1 Interior door: cold plate spray door*4 | |||
Consumption | 290W | 252W | 284W | 286W | ||
Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V. 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | ||
Casters | Yes | |||||
Shelf | 1 | 2 | 3 | |||
Standard Accessory | Test hole, USB interface | |||||
Optional Accessory | Temperature recorder, RS485 | Temperature recorder, RS485, printer | ||||
Internal Size(W*D*H) | 364*405*410mm | 440*447*640mm | 520*453*1013mm | 520*567*1013mm | ||
External Size(W*D*H) | 540*620*1115mm | 600*610*945mm | 690*630*1631mm | 690*744*1631mm | ||
Package Size(W*D*H) | Plywood case: 670*760*1290mm Honeycomb cardboard box: 590*785*1320mm | 730*730*1140mm | 840*750*1810mm | 810*860*1820mm | ||
Net Weight | 58kg | 63kg | 112kg | 115kg | ||
Gross Weight | 73kg | 82kg | 133kg | 140kg | ||
