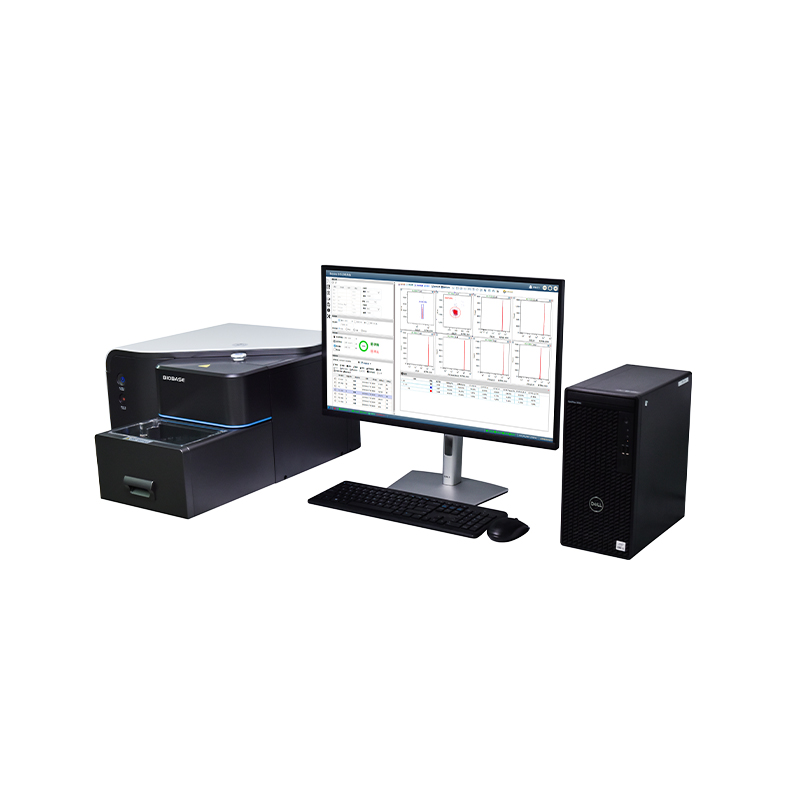

Flow Cytometer ZS-AE7S
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Model ZS-AE7S
Introduction:
Flow cytometer is a high-precision analytical and sorting instrument widely used in life sciences, medicine, immunology, and other fields. It integrates fluid mechanics, optics, electronics, and computer technology to rapidly analyze and sort individual cells (or particles) in a liquid suspension. By detecting scattered light signals and fluorescent signals from cells labeled with specific probes, the instrument can quantitatively measure multiple physical and chemical properties of cells (such as size, granularity, surface antigens, and intracellular components) at a speed of thousands to tens of thousands of cells per second, enabling high-throughput, multi-parameter, and non-destructive cellular analysis.
Download

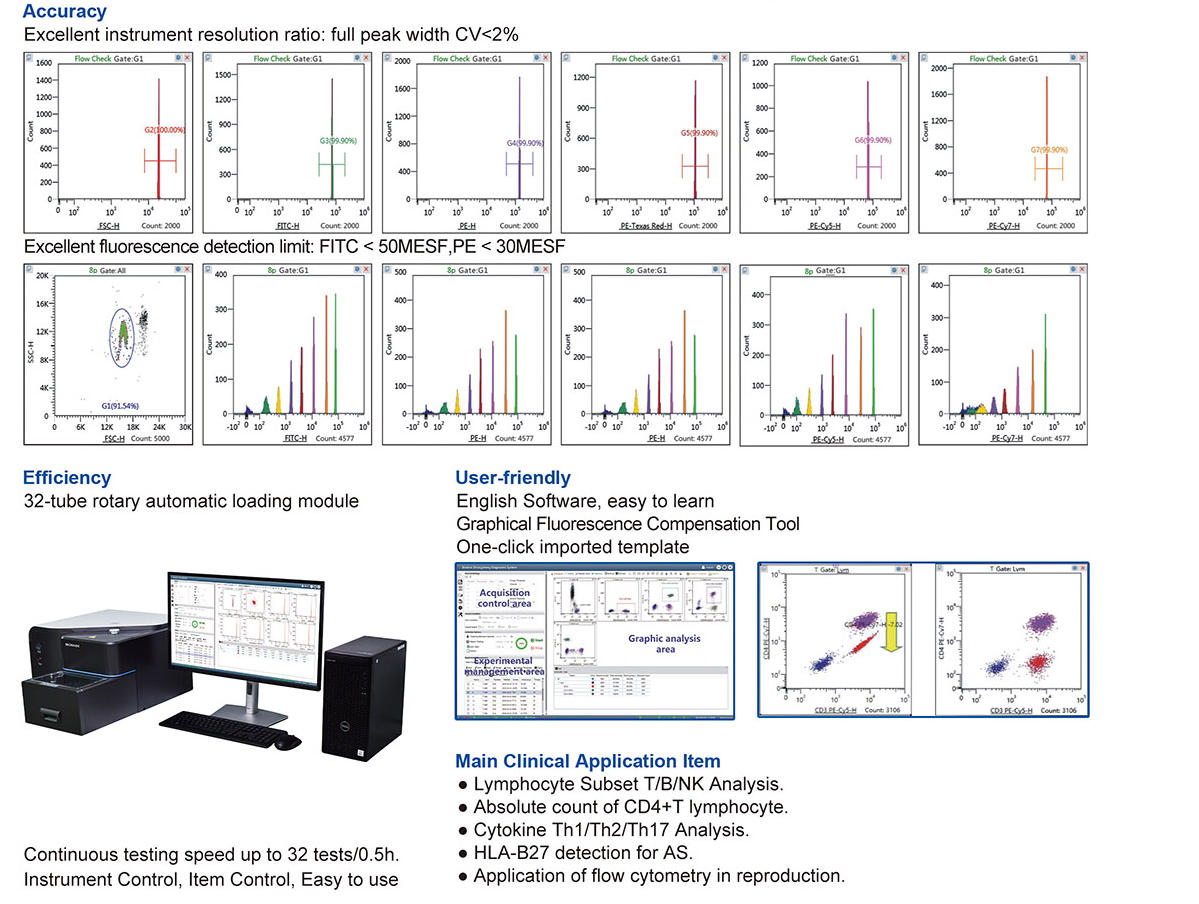

Features:
Recommended Reagent Information:
Item | Recommended Reagent | Application Department |
Lymphocyte Subset T Analysis | CD45 CD4 CD3 CD8 | Clinical Laboratory Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty |
Lymphocyte Subset T/B/NK Analysis | CD45 CD3 CD16 CD56 CD19 | |
Absolute Count of CD4+T Lymphocyte | CD45 CD4 CD3 CD8 | CDC (AIDS) Infectious Disease Department |
Cytokine Th1/Th2/Th17 Analysis | Th1: IL-2, IFN-γ, TNF-α Th2: IL-4, IL-6, IL-10 Th17: IL-17 | Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Organ Transplantation Respiratory Department |
HLA-B27 Detection for AS | HLA-B27-FITC HLA-B7-PE IgG2a-FITC IgG1-PE | Department of Rheumatology and Immunology Orthopedics |
DFI Analysis | Acridine orange (AO) Staining Solution | Reproductive Department Infertility Department Reproductive Medicine Centre |
Technical Parameters:
Model | ZS-AE7S |
Laser | 488nm solid（60mW） |
Detector | FSC, SSC, FL1-FL5 |
Fluorescence Channel | FL1:525/50（FITC） FL2:585/40（PE） FL3:630/30（PE-Texas Red/ECD/PI） FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5） FL5:780/60（PE-Cy7） |
Fluorescence Sensitivity | FITC≤50 MESF, PE≤30MESF |
Fluorescence Linearity | ≥0.99 |
FSC Sensitivity | ≤1μm |
Test Particle Size | 0.2~50μm |
Carry Over | ≤0.5% |
Instrument CV | FSC and all FL channel CV less than 2% |
FSC and SSC CV | Can separate red blood cells and platelet, can separate white blood cells into 3 groups |
Test Speed | ≥46000 cells/s |
Minimum Sample Vol | 90μL |
Measure Range | Maximum Support 10⁷ |
Threshold | Double threshold, minimum cells fraction |
Fluorescence Compensation | Support auto online compensation, offline compensation and visualized compensation |
Item Template | Support Item template, acquisition conditions/fluorescence compensation one-click use |
Intake Method | Manual intake Rotary wheel auto-sampling with auto-mixing function:32tests/wheel |
Liquid Storage Station | Sheath bottle, waste bottle, shutdown liquid bottle 2L, cleaning liquid bottle 0.5L |
Software | English/Chinese |
PC | Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor |
Power Supply | AC220/110V±10%, 50/60Hz |
Optional | Auto-sampler |
External Size(W*D*H) | 500*605*305mm |
Net Weight | 35kg |
Packing Size(W*D*H) | Main Instrument: 860*635*648mm Accessories: 860*680*810mm Reagent: 405*270*400mm |
Gross Weight | Main Instrument: 56kg Accessories: 54kg Reagent: 16kg |
