NSF Certified Class II Biosafety Cabinet BSC-2FA2-NA BSC-2FA2-GL
Brand BIOBASE
Product origin CHINA
Delivery time Within 7 days
Supply capacity Factory Direct Supply
Advantages:
1. Motorized front window.
2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made up of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Download
Features:

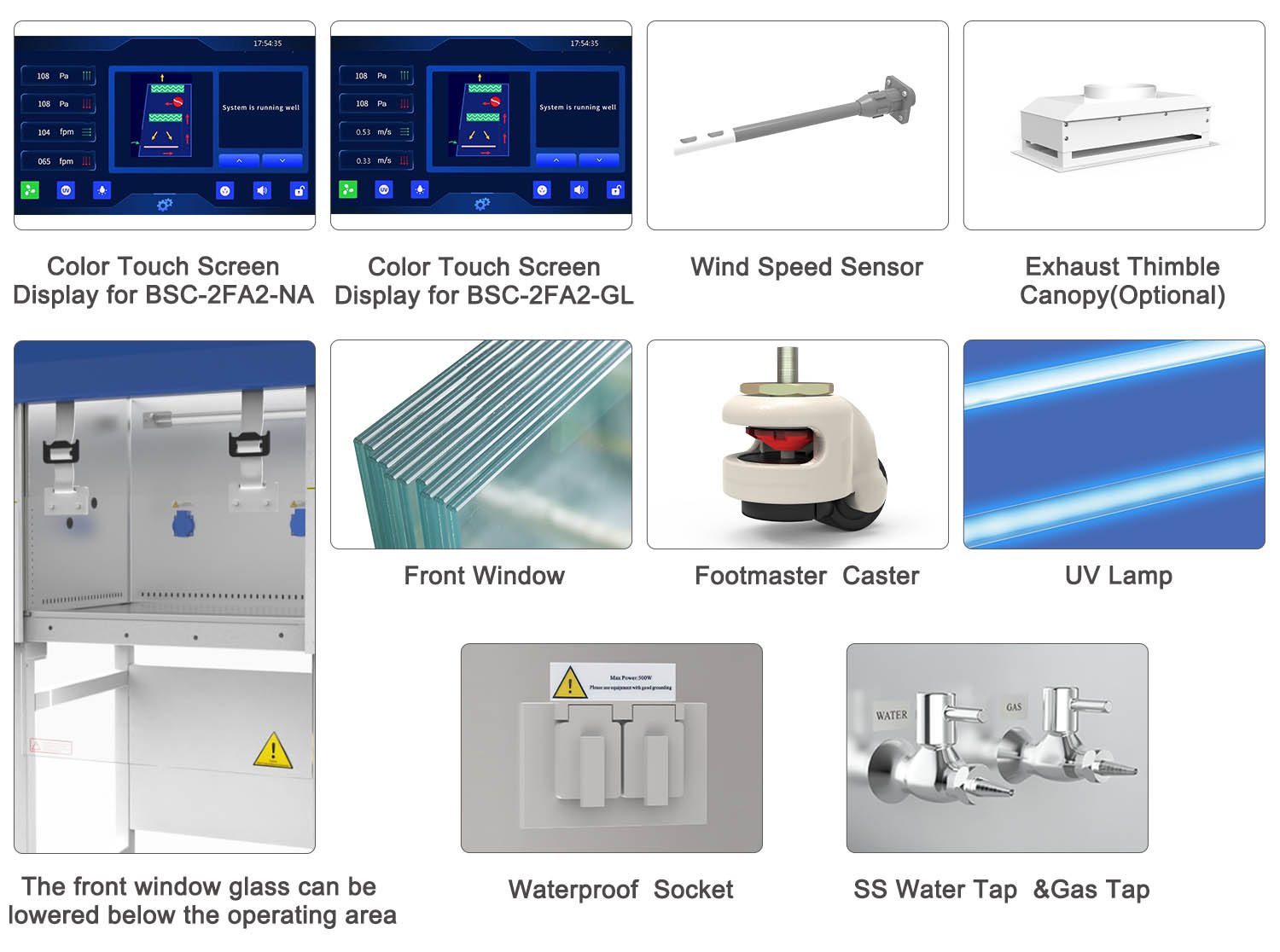

1.Motorized front window.
2.7-inch large touch color display:touch operation,real-time and clearer display of various values of the safetycabinet,dynamic air flow pattern diagram,fault alarm sound and light prompt.
3.The power-on password can be set to prevent mis-operation by irrelevant personnel.
2.EC Fan,automatically adjust the wind speed.
3.With power-off memory function,the state before power-off will be restored after power-on and there will be visualprompts and alarms.
4.The integrated design of the operation area makes it easy to disassemble and clean.
5.The cabinet is separated from the base.The height of the adjustable base can be customized.
6.Interlocking function:UV lamp and front window;UV lamp and fan;fan and front window.
7.It has the function of appointment timing,which can automatically set the time of starting and shutting down thesafety cabinet and the running time of ultraviolet lamps,fan and sockets.
8.The front window closes the trigger signal,so that the sterilization and disinfection function of the ultraviolet lamp isnormally turned on.
9.The one-piece hand resting surface has a larger contact area with the arm and is more comfortable.air speedadjustable with filter block.
Models:
| Model | BSC-2FA2-NA |
| BSC-2FA2-GL | |
| External Size(W*D*H) | 700*650*1920mm |
| Internal Size(W*D*H) | 600*500*540mm |
| Work Surface Hight | 750mm |
| Max Opening | 370mm |
| Tested Opening | Safety height 254mm(10") |
| Inflow | 290m³/h(170cfm) |
| Downflow | 55%:360m³/h(211cfm) |
| Exhausl | 45%:290m³/h(170cfm) |
| Front Window | Two-layer laminated toughened glass>6mm,Anti UV |
| U PA Filter | ≥99.9995%efficiency at 0.12μm |
| Filter Guard Type | Aluminum alloy frame |
| Noise | NSF 49≤67 dB |
| Ilumination | ≥1000Lux |
| Display | Capacitive touch screen |
| Waterproof Socket | Two,Total consumption≤500W |
| Ground Resistance | ≤0.1Q |
| Power Supply | AC230V,50/60Hz;AC115V,60Hz,Full load Amps:9A,BTU/Hr:1689 |
| Consumption | ≤500W |
| Alarn | Abnormal airlow velocity;Filter replacement;Front window at unsafe height |
| Motor | One EC fan,115V&230V acceptable,Speed adjustable,High efficiency and low power consumplion |
| Material | Working area:304 stainless steel |
| Frame and Decoratve Plate:cold-rolled steel with anti-bacteria power coating | |
| UV Lamp | 15W |
| LED Lamp | 10W*2 |
| Standard Accessory | LED Lamp*2,UV lamp,Base stand,Drain valve,Waterproof sockets |
| Optional Accessory | Armrest,Airlow tester,Formalin fumigation sterlizer,Infrared sterlizer,Remote control,SS water tap*1&gas tap*1 |
| Net Weight | 150kg |
| Package Size(W*D*H) | Plywood:850*900*1400mm |
| Gross Weight | 190kg |
